Bow Shackles

Commonly used in the shipping and industrial industries, bow shackles are a helpful tool to connect different pieces of equipment together in rigging systems.

Read more
Products
14
Not sure?
Read the buying guide

14 products

  • 4.75T Forged Screw Pin Bow Shackle 3/4" – Blue PinIn stock
    £9.26£7.71 £7.71 ex VAT£9.26 inc VAT
  • 12T 1-1/4" Screw Pin Bow Shackle – 12 Tonne WLLIn stock
    £33.00£27.50 £27.50 ex VAT£33.00 inc VAT
  • 9.5T – 1-1/8" Screw Pin Bow Shackle (Blue Pin) | Able Forge SPB028In stock
    £24.50£20.41 £20.41 ex VAT£24.50 inc VAT
  • 6.5T 7/8" Screw Pin Bow Shackle – WLL 6.5TIn stock
    £12.43£10.35 £10.35 ex VAT£12.43 inc VAT
  • 3/4" Screw Pin Bow Shackle – WLL 6.5TIn stock
    £6.83£5.69 £5.69 ex VAT£6.83 inc VAT
  • 2T 1/2" Screw Pin Bow Shackle – WLL 2TIn stock
    £5.20£4.33 £4.33 ex VAT£5.20 inc VAT
  • 0.75T 5/16" Forged Bow Shackle – Screw Pin | 750 kg WLLIn stock
    £3.60£3.00 £3.00 ex VAT£3.60 inc VAT
  • 0.5T 1/4" Bow Shackle – Blue Pin | WLL 500 kgIn stock
    £2.88£2.40 £2.40 ex VAT£2.88 inc VAT

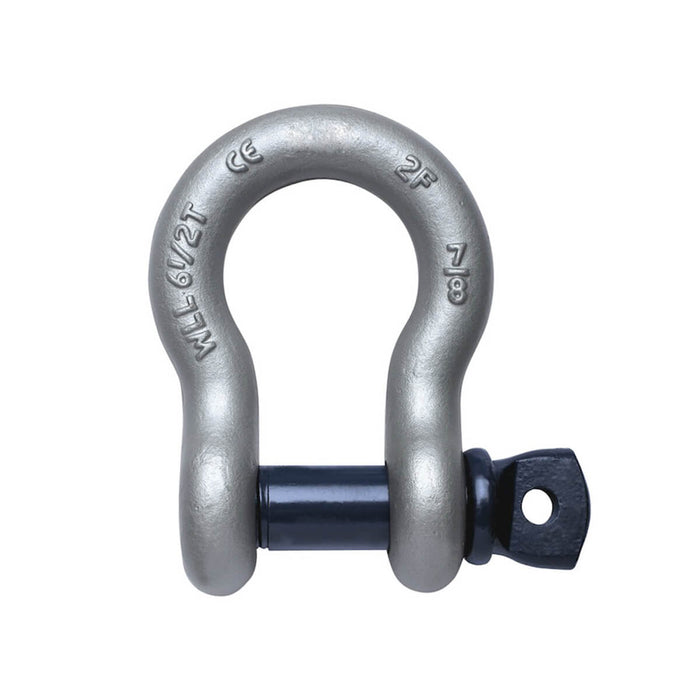

  • 13.5T 1-3/8" Forged Screw Pin Bow Shackle – Blue Pin (SPB028)Out of stock
    £49.50£41.25 £41.25 ex VAT£49.50 inc VAT
  • 8.5T Screw Pin Bow Shackle – 1" (6½T WLL)Out of stock
    £17.26£14.38 £14.38 ex VAT£17.26 inc VAT
  • 3/8" Bow Shackle – 1T WLL Screw Pin (SPB009)Out of stock
    £4.09£3.40 £3.40 ex VAT£4.09 inc VAT
  • 25T 1-3/4" Screw Pin Bow Shackle – WLL 25TOut of stock
    £92.40£77.00 £77.00 ex VAT£92.40 inc VAT
  • 17T 1½" Screw Pin Bow Shackle – 17,000 kg WLLOut of stock
    £68.06£56.71 £56.71 ex VAT£68.06 inc VAT
  • 1.5T 7/16" Forged Screw Pin Bow Shackle – WLL 1.5TOut of stock
    £4.43£3.69 £3.69 ex VAT£4.43 inc VAT
Product
13.5T 1-3/8" Forged Screw Pin Bow Shackle – Blue Pin (SPB028)13,500 kg81,000 kg£49.50£41.25
8.5T Screw Pin Bow Shackle – 1" (6½T WLL)6,500 kg39,000 kg£17.26£14.38
4.75T Forged Screw Pin Bow Shackle 3/4" – Blue Pin4.75 kg28,500 kg£9.26£7.71
3/8" Bow Shackle – 1T WLL Screw Pin (SPB009)1,000 kg6,000 kg£4.09£3.40
25T 1-3/4" Screw Pin Bow Shackle – WLL 25T25,000 kg150,000 kg£92.40£77.00
17T 1½" Screw Pin Bow Shackle – 17,000 kg WLL17,000 kg102,000 kg£68.06£56.71
12T 1-1/4" Screw Pin Bow Shackle – 12 Tonne WLL12,000 kg72,000 kg£33.00£27.50
9.5T – 1-1/8" Screw Pin Bow Shackle (Blue Pin) | Able Forge SPB0289,500 kgn/a£24.50£20.41
6.5T 7/8" Screw Pin Bow Shackle – WLL 6.5T6,500 kg39,000 kg£12.43£10.35
3/4" Screw Pin Bow Shackle – WLL 6.5T6,500 kg39,000 kg£6.83£5.69
2T 1/2" Screw Pin Bow Shackle – WLL 2T2,000 kg12,000 kg£5.20£4.33
1.5T 7/16" Forged Screw Pin Bow Shackle – WLL 1.5T1,500 kgn/a£4.43£3.69
0.75T 5/16" Forged Bow Shackle – Screw Pin | 750 kg WLL750 kg4,500 kg£3.60£3.00
0.5T 1/4" Bow Shackle – Blue Pin | WLL 500 kg6.5 kgn/a£2.88£2.40
Buying guide

Bow Shackles

Still not sure? Call +44 (0)1638 731608

Commonly used in the shipping and industrial industries, bow shackles are a helpful tool to connect different pieces of equipment together in rigging systems.

The unique shape of a bow shackle allows equipment to be removed and attached easily, with their large loop allowing for multiple loads in multiple directions - avoiding the need for a side load. Their shape also allows them to easily be used in conjunction with webbing slings, which can help with lifting equipment that requires resilient connection points.

We stock a wide range of shackles in a variety of sizes and working load limits, from 0.5t all the way up to 25t for the most demanding jobs. All our shackles have their size and working load limit stamped on them, allowing for easy identification on sites where multiple shackles may need to be used.

Common shackles are often made from cast steel, which can cause air bubbles and affect the integrity and durability of the bow shackle. However, our bow shackles are made from the highest quality forged steel, ensuring their longevity and reliability when in use.

Explore our range of bow shackles below and if you have any questions, don’t hesitate to get in touch with us.
