1.5T 7/16" Forged Screw Pin Bow Shackle – WLL 1.5T
Able forged screw pin bow shackle in 7/16" size, rated to a 1.5T Working Load Limit with a 6:1 safety factor. CE marked, hot-dip galvanised body with alloy screw pin, built for reliable rigging and lifting.
- Working load limit
- 1,500 kg
- Material
- Forged steel, quenched and tempered
- Safety factor
- 6
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

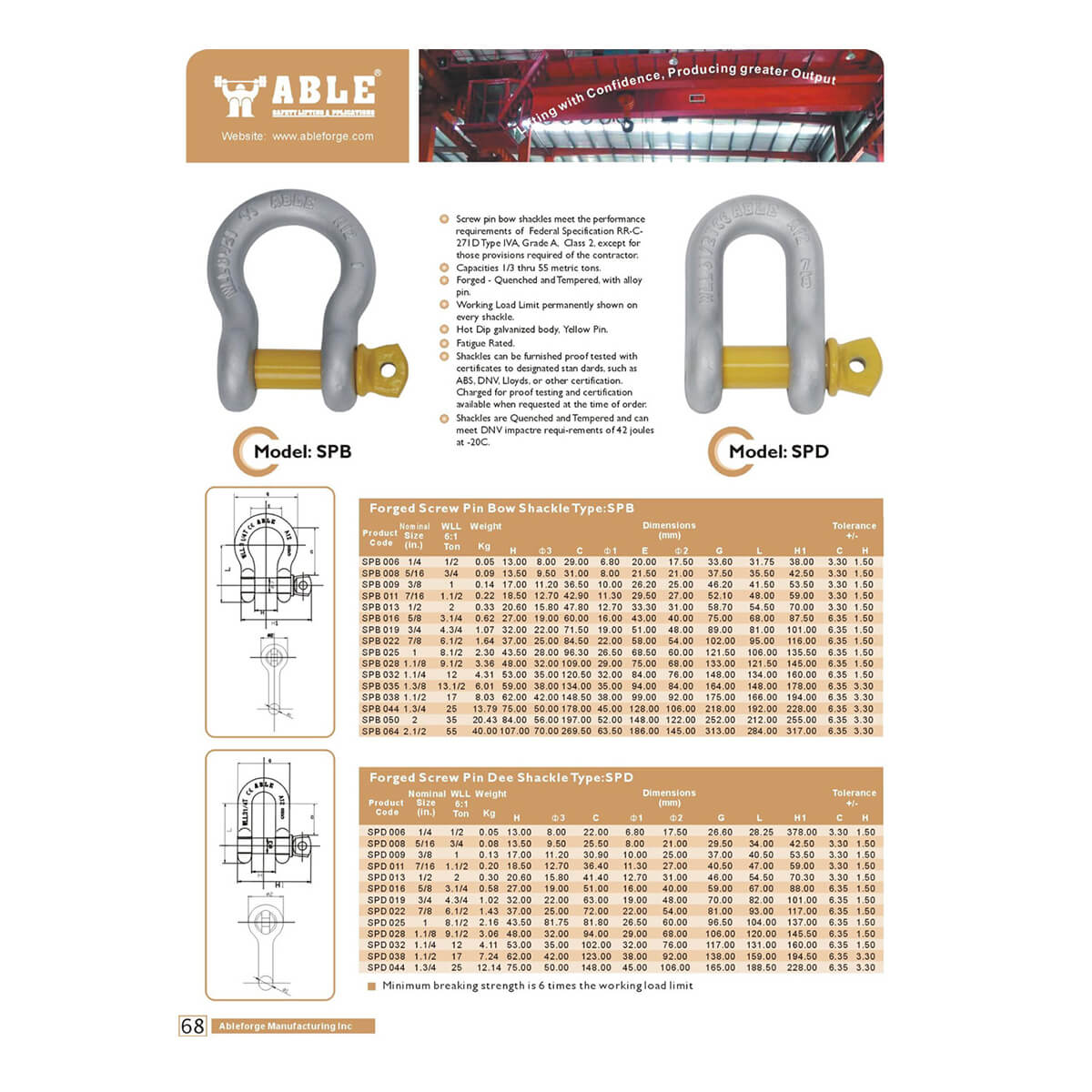

The Able Forged Screw Pin Bow Shackle (Model SPB 011) is a 7/16" bow shackle rated to a Working Load Limit of 1.5 tonnes. Individually forged and quenched and tempered for consistent strength and toughness, it is suited to rigging, lifting, and lashing applications where reliable, traceable hardware is essential.
The WLL and CE mark are permanently embossed on every shackle body, giving instant on-site traceability. The alloy screw pin locks securely to prevent accidental disengagement under load. The hot-dip galvanised body provides corrosion resistance for use in demanding environments.
- Working Load Limit: 1.5T (1,500 kg), permanently marked on body
- Safety factor 6:1, minimum breaking strength is 6× the WLL
- Forged steel body, quenched and tempered for maximum toughness
- Hot-dip galvanised body with alloy screw pin
- CE marked for compliance with European lifting equipment requirements
- Available proof tested with third-party certification (ABS, DNV, Lloyd's) on request
Supplied as a single shackle. Always inspect before use and never exceed the stated Working Load Limit.
Key features
- 0115T (1,500 kg) Working Load Limit permanently embossed on body
- 026:1 safety factor
- 03Forged steel body
- 04Alloy screw pin
- 05CE marked
