13.5T 1-3/8" Forged Screw Pin Bow Shackle – Blue Pin (SPB028)
Heavy-duty 13.5-tonne forged alloy steel bow shackle with screw pin, CE marked and WLL stamped on the body. Ideal for demanding lifting, rigging and webbing sling applications.
- Working load limit
- 13,500 kg
- Min. breaking load
- 81,000 kg
- Grade
- Grade A
- Material
- Forged alloy steel
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
This 13.5-tonne forged screw pin bow shackle from Able (model SPB028) is engineered for demanding lifting and rigging applications across construction, shipping, and heavy industry. The wide bow profile comfortably accommodates webbing sling eyes, making it the ideal connecting link wherever a secure, high-capacity attachment point is required.
The body is forged from alloy steel, then quenched and tempered for consistent strength throughout. The Working Load Limit is permanently stamped on every shackle for instant on-site identification, and the blue screw pin provides clear visual contrast for rapid inspection. The shackle meets the performance requirements of Federal Specification RR-C-271D Type IVA, Grade A, and carries a 6:1 safety factor, minimum breaking strength is six times the WLL.
- 13.5-tonne Working Load Limit (WLL 6½T stamped on body as legible in product image)
- Forged alloy steel body, quenched and tempered for consistent strength and density
- Wide bow profile ideal for webbing slings and multi-leg lifting assemblies
- Blue screw pin for rapid visual identification and inspection
- 6:1 safety factor, minimum breaking strength 81,000 kg
- CE marked; proof-test certificates to ABS, DNV, Lloyd's or other standards available on request

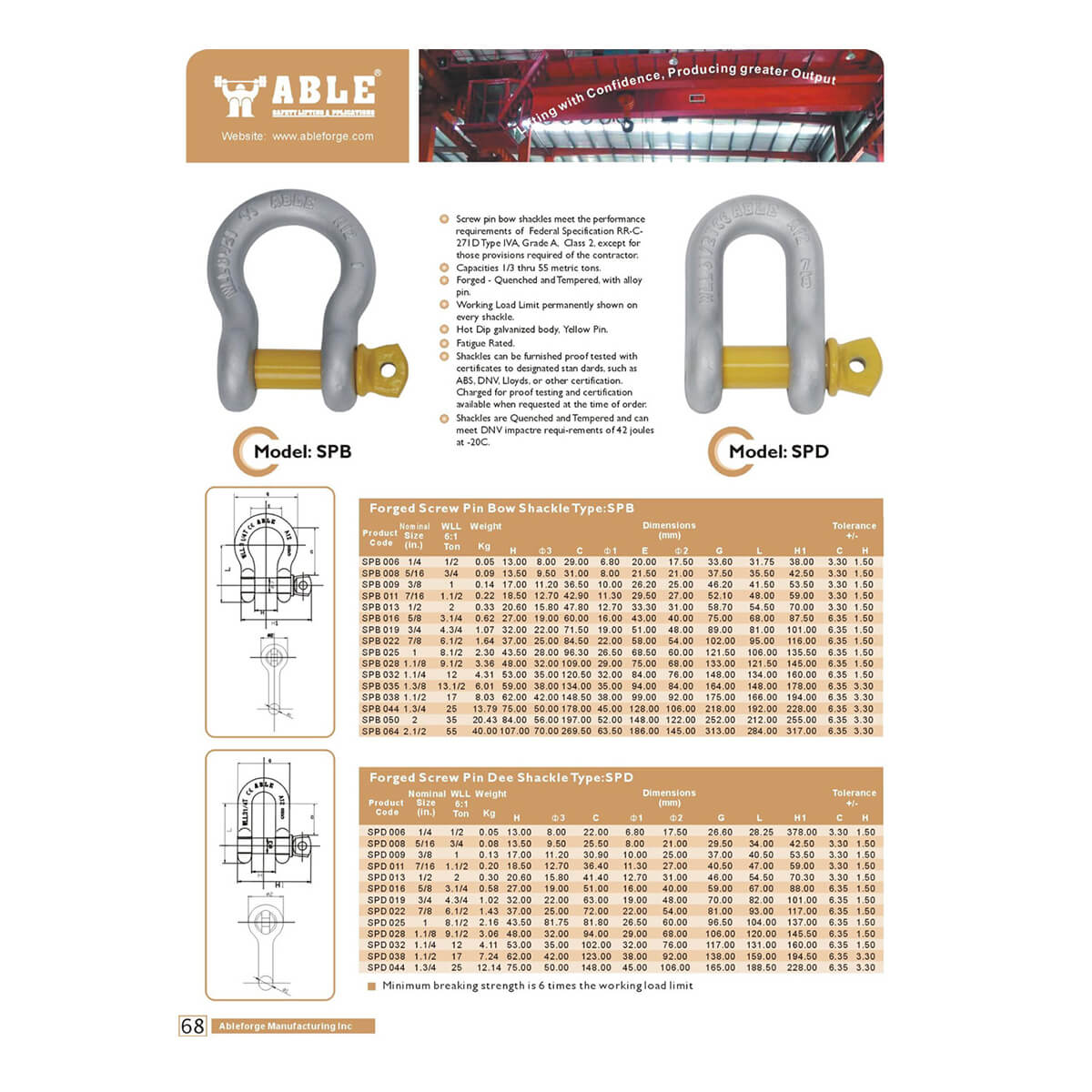

Dimensions (mm): H 48, ⌀3 32, C 109, ⌀1 29, E 75, ⌀2 100, G 133, L 145, H1 80. Weight: 3.38 kg.
Key features
- 01135T working load limit
- 02Forged alloy steel construction
- 03Wide bow profile
- 04Blue screw pin
- 05CE marked & traceable
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
