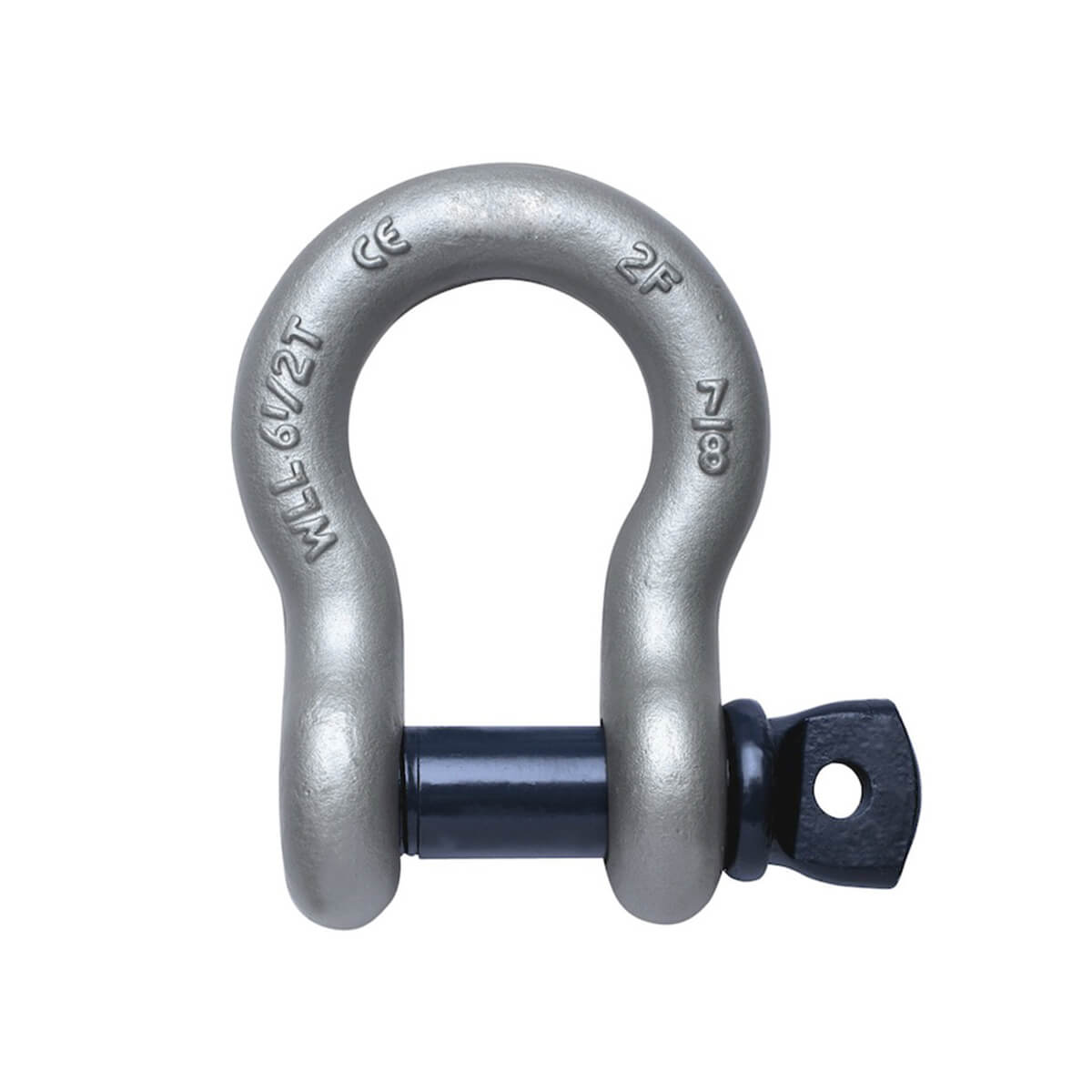

6.5T 7/8" Screw Pin Bow Shackle – WLL 6.5T
Able forged screw pin bow shackle with a 6.5-tonne working load limit. CE marked, quenched and tempered, with WLL permanently stamped on the body, built for heavy-duty rigging and lifting.
- Working load limit
- 6,500 kg
- Min. breaking load
- 39,000 kg
- Material
- Forged steel, quenched and tempered
- Safety factor
- 6
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
This forged screw pin bow shackle from Able offers a working load limit of 6.5 tonnes (6,500 kg), making it a dependable choice for heavy-duty rigging, lifting, and load-securing applications across industrial, construction, and marine environments. The generous bow profile accommodates webbing sling eyes and multiple connection points with ease.
Each shackle is forged, then quenched and tempered for superior strength and fatigue resistance. The working load limit is permanently stamped on the body for quick, confident identification on site. The shackle carries CE marking and is manufactured to a 6:1 safety factor, with a minimum breaking strength six times the working load limit.
- Forged steel body, quenched and tempered for consistent grain structure and high fatigue resistance
- WLL 6.5T (6,500 kg) permanently stamped on every shackle for instant on-site identification
- 6:1 safety factor, minimum breaking strength 6× WLL (39,000 kg)
- CE marked; meets Federal Specification RR-C-271D Type IVA, Grade A requirements
- Screw pin closure for secure, tool-free assembly and disassembly
- Wide bow profile ideal for use with webbing slings and multi-leg arrangements
- Fatigue rated; available proof-tested with third-party certification (ABS, DNV, Lloyd's) on request
Key features
- 01WLL 65T (6,500 kg) permanently stamped on body
- 02Forged steel body
- 03CE marked and
- 04Wide bow profile accepts webbing sling eyes and multiple leg connections
- 05Fatigue rated
