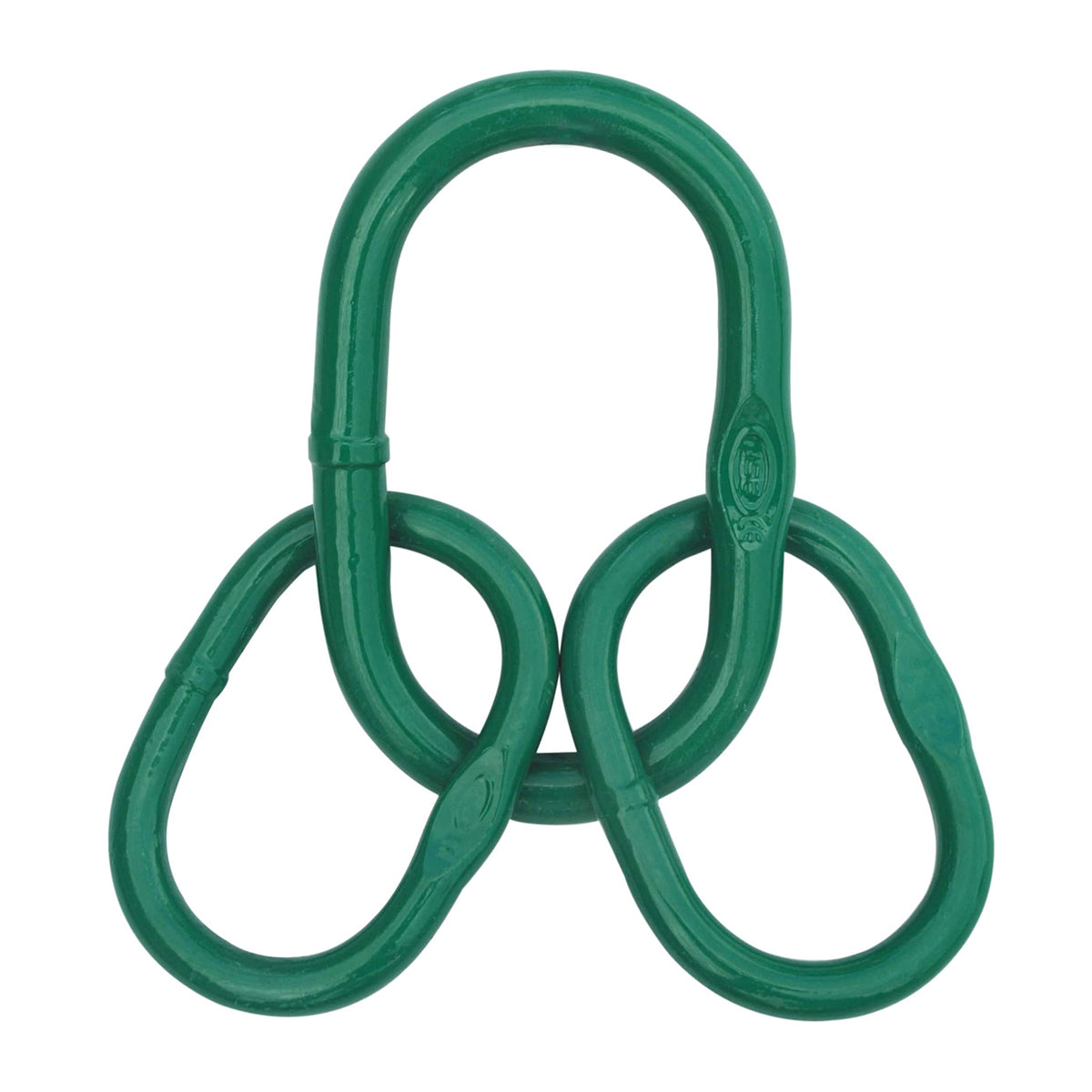

Grade 80 Sub Master Link Assembly – 7mm (MLA-8-18)
Grade 80 alloy steel sub master link assembly for 3- or 4-leg chain slings. Proof tested to 2.5× WLL with a 3.15-tonne working load limit, ideal for heavy-duty lifting and rigging.
- Working load limit
- 3,150 kg
- Legs
- 3 or 4
- Grade
- Grade 80
- Material
- High-grade alloy steel, quenched and tempered
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

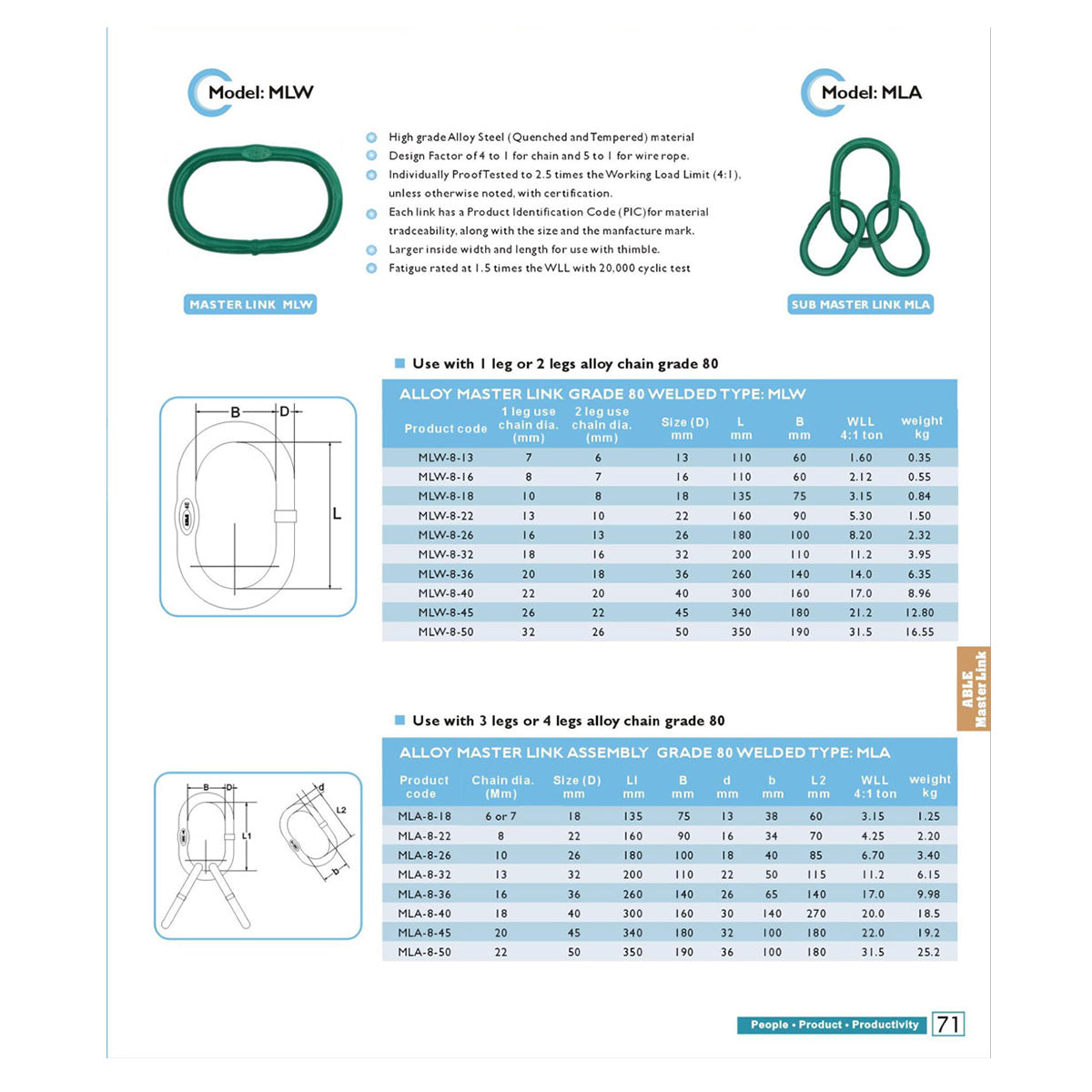

The Grade 80 Sub Master Link Assembly (Model MLA-8-18) is a welded alloy steel master link assembly designed for use at the top of 3- or 4-leg chain sling configurations. Manufactured from high-grade quenched and tempered alloy steel, it provides a robust and reliable connection point between lifting chain legs and a crane hook or hoist ring.
Each assembly is individually proof tested to 2.5 times its Working Load Limit and carries a Product Identification Code (PIC) for full material traceability. The larger inside width and length make it compatible with thimbles, and it is fatigue rated at 1.5 times the WLL over a 20,000-cycle test, delivering confidence in demanding industrial, construction, and rigging environments.
- High-grade alloy steel, quenched and tempered, Grade 80
- Working Load Limit: 3.15 tonnes (4:1 design factor)
- Individually proof tested to 2.5× WLL with certification
- Product Identification Code (PIC) stamped for full traceability
- Fatigue rated at 1.5× WLL with 20,000-cycle test
- Suitable for use with 6 mm or 7 mm Grade 80 alloy chain (3 or 4 legs)
- Compatible with wire rope when used with thimble
Key features
- 01Grade 80 alloy steel
- 02Proof tested for safety
- 03Full material traceability
- 043 & 4-leg sling compatible
- 05Fatigue rated
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
