16mm Master Link Assembly
Grade 80 alloy steel sub master link assembly (Model MLA-8-40) for use with 3- or 4-leg chain slings. WLL 17.0 tonne, proof tested to 2.5× WLL, with product identification coding for full traceability.
- Working load limit
- 17,000 kg
- Chain size
- 18 mm
- Legs
- 3 or 4
- Grade
- Grade 80
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

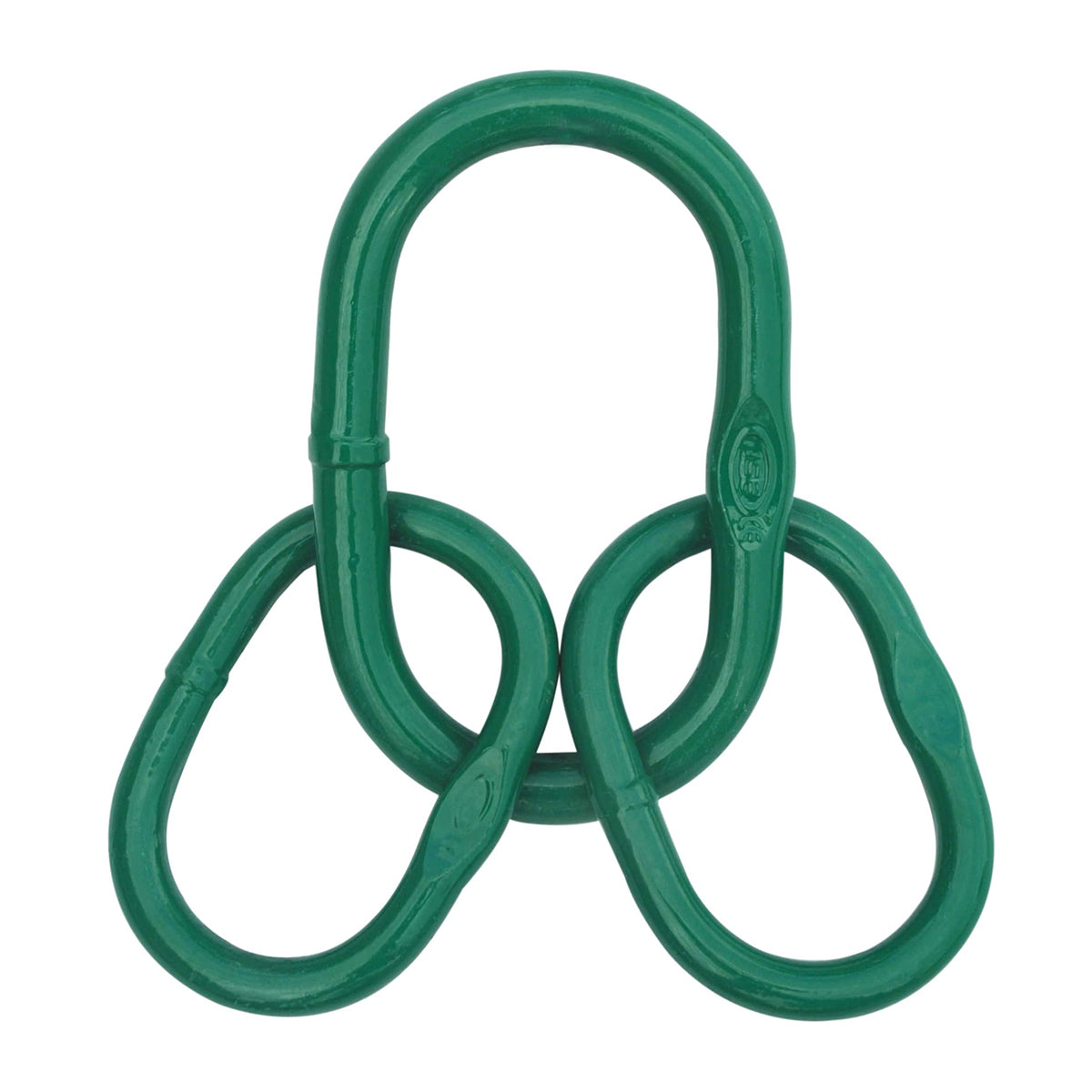

The 16mm Sub Master Link Assembly (Model MLA-8-40) is a high-grade alloy steel (Grade 80, Quenched and Tempered) welded master link assembly designed for use with 3- or 4-leg Grade 80 alloy chain slings. The distinctive green-painted oblong master ring accepts three sub-links, allowing multiple chain legs to be gathered and connected to a crane hook or lifting point quickly and securely.

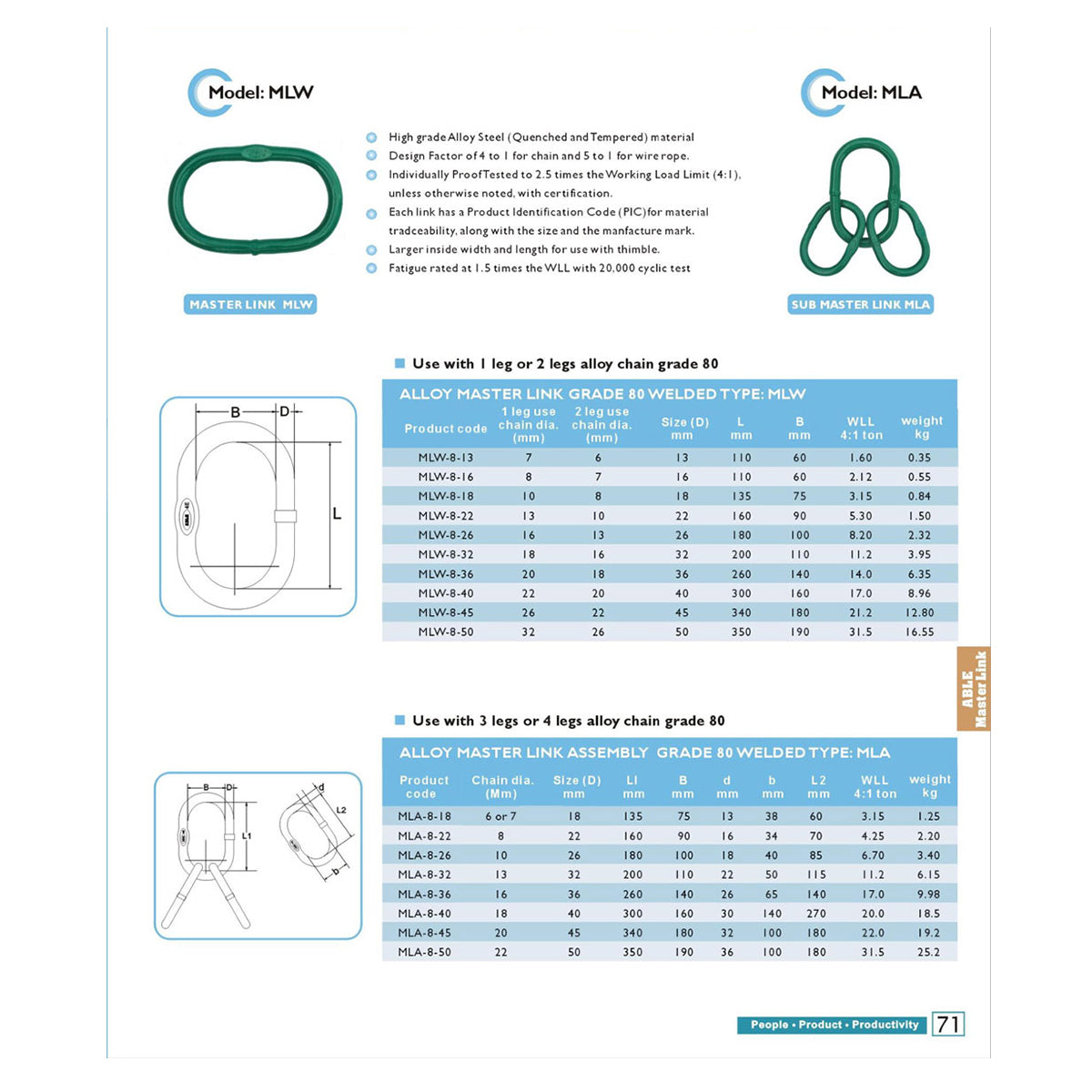

Every link is individually proof tested to 2.5 times the Working Load Limit (4:1 design factor) and supplied with certification. Each component carries a Product Identification Code (PIC) stamped directly onto the body for full material traceability, along with the size and manufacturer's mark. The larger inside width and length make these links compatible for use with wire rope thimbles as well as chain.
- High grade alloy steel, Grade 80, Quenched and Tempered construction
- WLL 17.0 tonne (4:1 design factor); proof tested to 2.5× WLL with certification
- Suitable for 3- or 4-leg Grade 80 alloy chain slings, chain diameter 18 mm
- Product Identification Code (PIC) stamped for material traceability
- Fatigue rated at 1.5× WLL with 20,000 cycle test; larger bore suits wire rope thimbles
Supplied individually. Ideal for rigging, construction, heavy-lift and industrial lifting applications where a reliable, certified multi-leg sling connection point is required.
Key features
- 01Grade 80 alloy steel
- 02WLL 170 tonne
- 033 & 4 leg sling use
- 04Full traceability
- 05Fatigue tested
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
