10mm Master Link Assembly – Grade 80 Alloy Steel (MLA-8-26)
Grade 80 alloy steel sub master link assembly for 3- and 4-leg chain slings. Proof tested to 2.5× WLL with a 6,700 kg working load limit, ideal for heavy-duty lifting applications.
- Working load limit
- 6,700 kg
- Chain size
- 10 mm
- Legs
- 3 or 4 legs
- Grade
- Grade 80
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

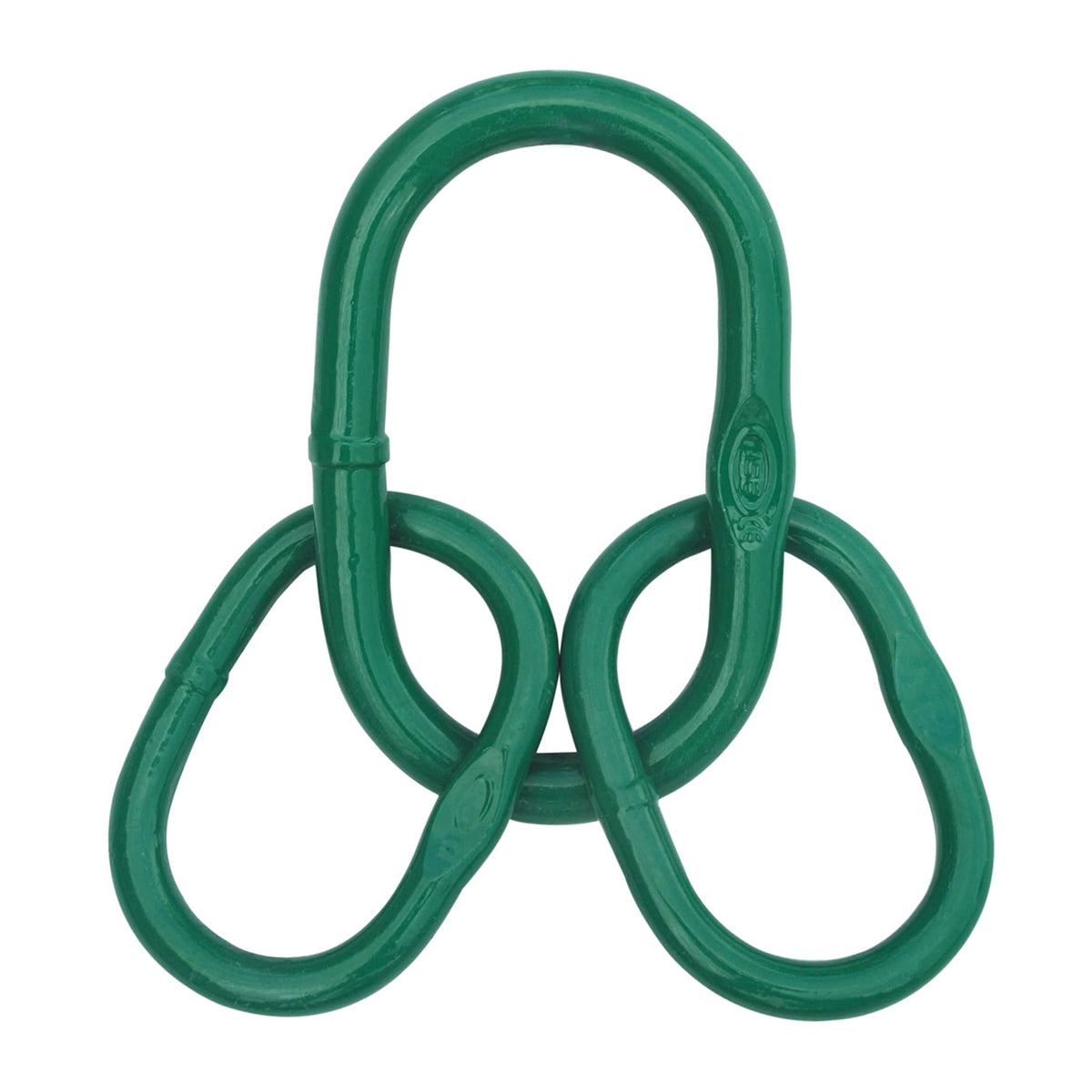

The 10mm Master Link Assembly (Model MLA-8-26) is a Grade 80 welded sub master link designed for use with 3- or 4-leg alloy chain slings. Manufactured from high-grade quenched and tempered alloy steel, it provides a secure, central connection point between multiple chain legs and the lifting hook or crane above.
Each assembly is individually proof tested to 2.5 times the working load limit and carries a Product Identification Code (PIC) for full material traceability. The larger inside width and length make it compatible for use with thimbles, and the design is fatigue rated at 1.5 times the WLL over 20,000 cyclic tests.
- Grade 80 high-grade alloy steel, quenched and tempered for maximum strength and durability
- Working Load Limit (WLL): 6,700 kg (4:1 design factor)
- Individually proof tested to 2.5× WLL with certification
- Product Identification Code (PIC) stamped for traceability, includes size, WLL and manufacturer's mark
- Suitable for use with 10mm Grade 80 alloy chain on 3- or 4-leg sling configurations
- Fatigue rated at 1.5× WLL with 20,000 cyclic test
Supplied as a ready-to-use assembly. Compatible with Grade 80 chain components to let you build a custom lifting sling to your exact requirements.
Key features
- 01Grade 80 alloy steel
- 026,700 kg working load limit
- 03Proof tested to 25× WLL
- 04Full traceability
- 05Compatible with 10mm grade 80 chain

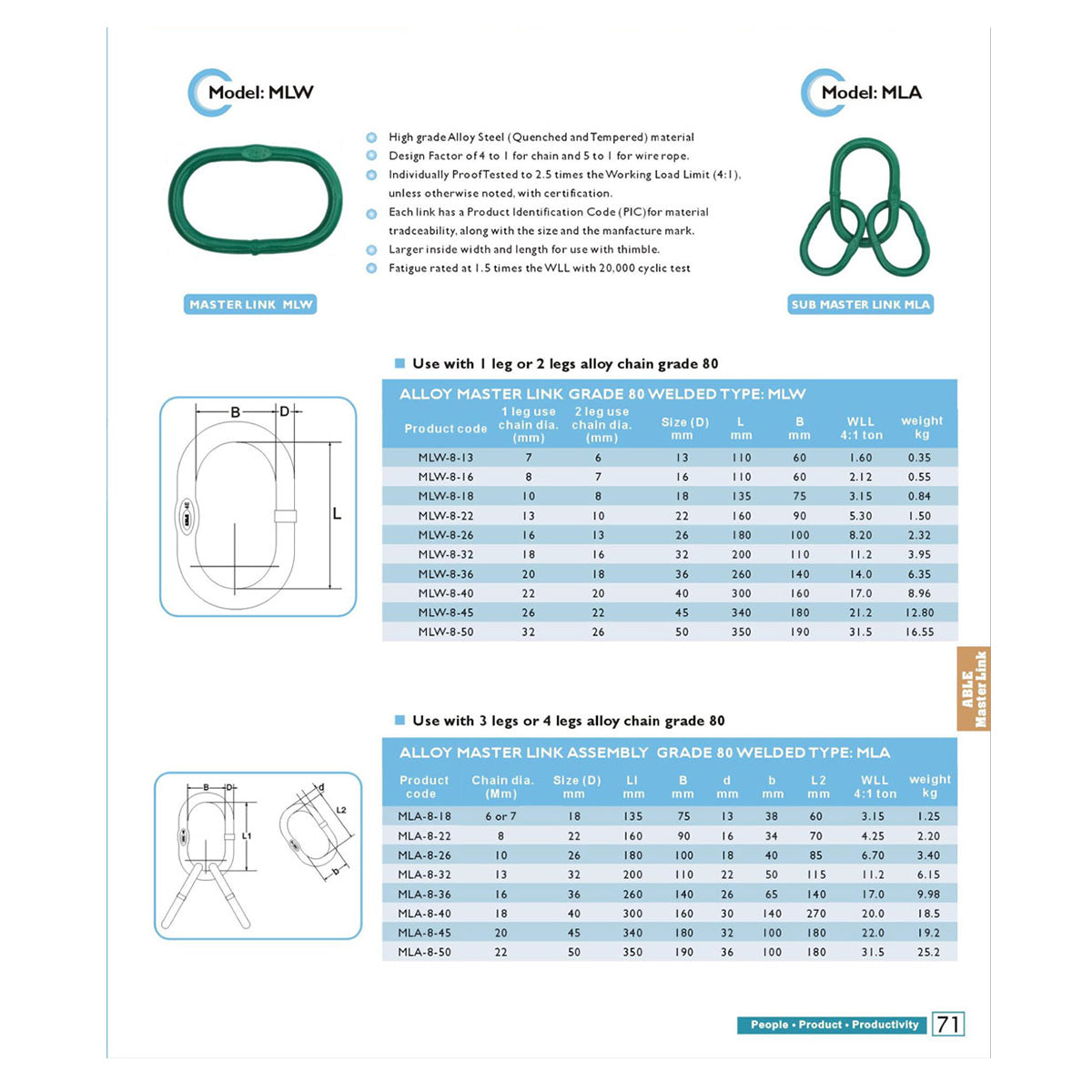

Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
