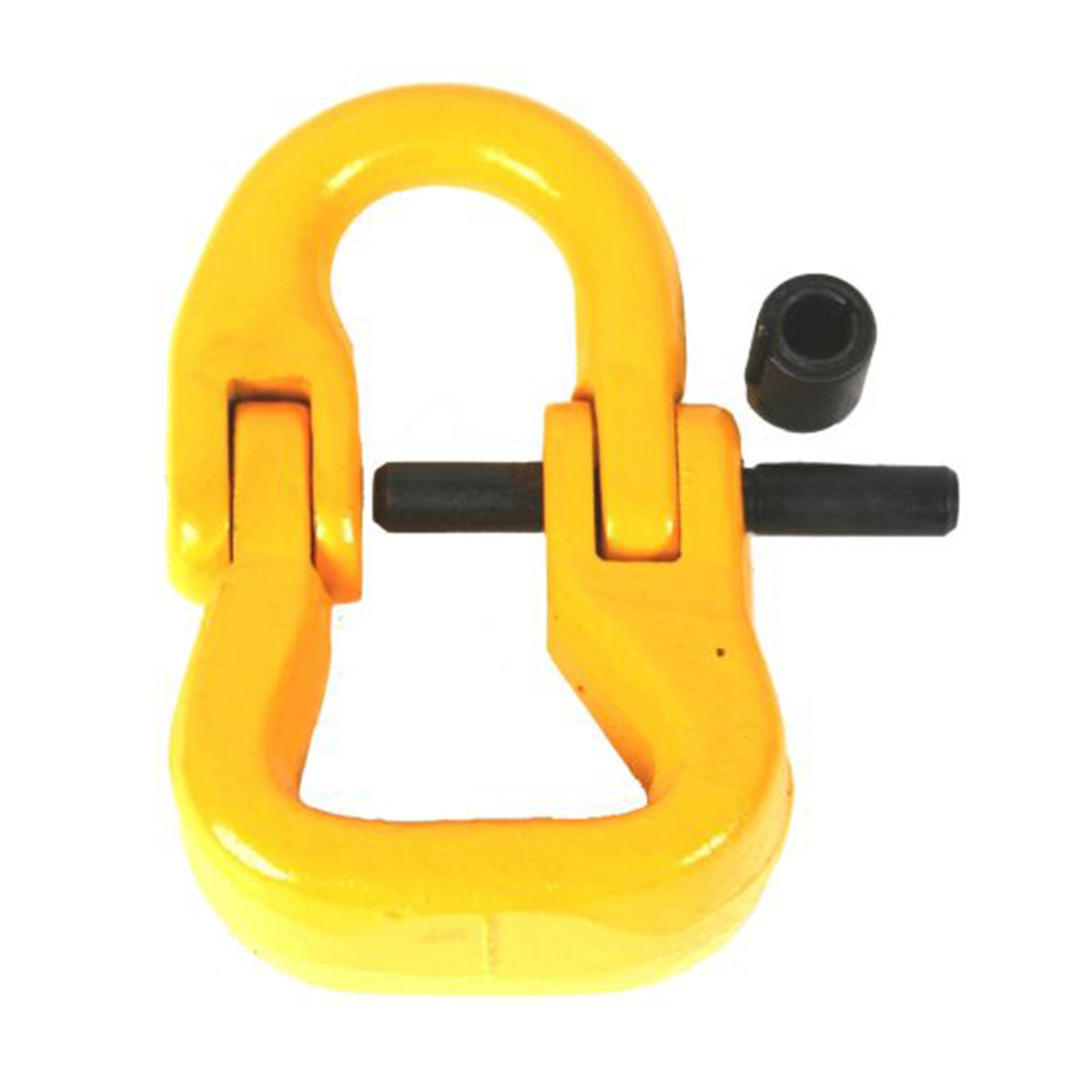

7/8mm Connecting Link for Webbing Sling
A forged alloy steel Grade 80 connecting link designed to quickly and reliably join webbing slings to lifting chain components, with a 2-tonne working load limit and 4:1 safety factor.
- Working load limit
- 2,000 kg
- Grade
- Grade 80
- Material
- Alloy steel
- Safety factor
- 4
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
This 7/8mm chain connecting link is manufactured from forged alloy steel and rated for use with Grade 80 alloy chain in overhead lifting applications. Its straightforward two-part design allows fast assembly, dismantling and reassembly of lifting chain slings without the need for specialist tools, ideal for busy rigging environments where time and reliability matter.
Suitable for connecting webbing slings and lifting chains to other lifting components, this link is heat treated, fully certified and carries a 2,000 kg working load limit with a 4:1 safety factor. Available in multiple sizes (7/8mm, 10mm, 13mm and 16mm) to suit a range of lifting applications across construction, engineering, manufacturing and logistics.
- Working Load Limit: 2,000 kg (2 tonne)
- Grade 80 alloy steel, drop forged and heat treated
- 4:1 safety factor
- Quick assembly and dismantling, no special tools required
- Fully certified for overhead lifting use
Key features
- 012,000 kg working load limit
- 02Forged alloy steel construction
- 034:1 safety factor
- 04Tool-free design enables quick assembly
- 05Fully certified connecting link compatible
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
