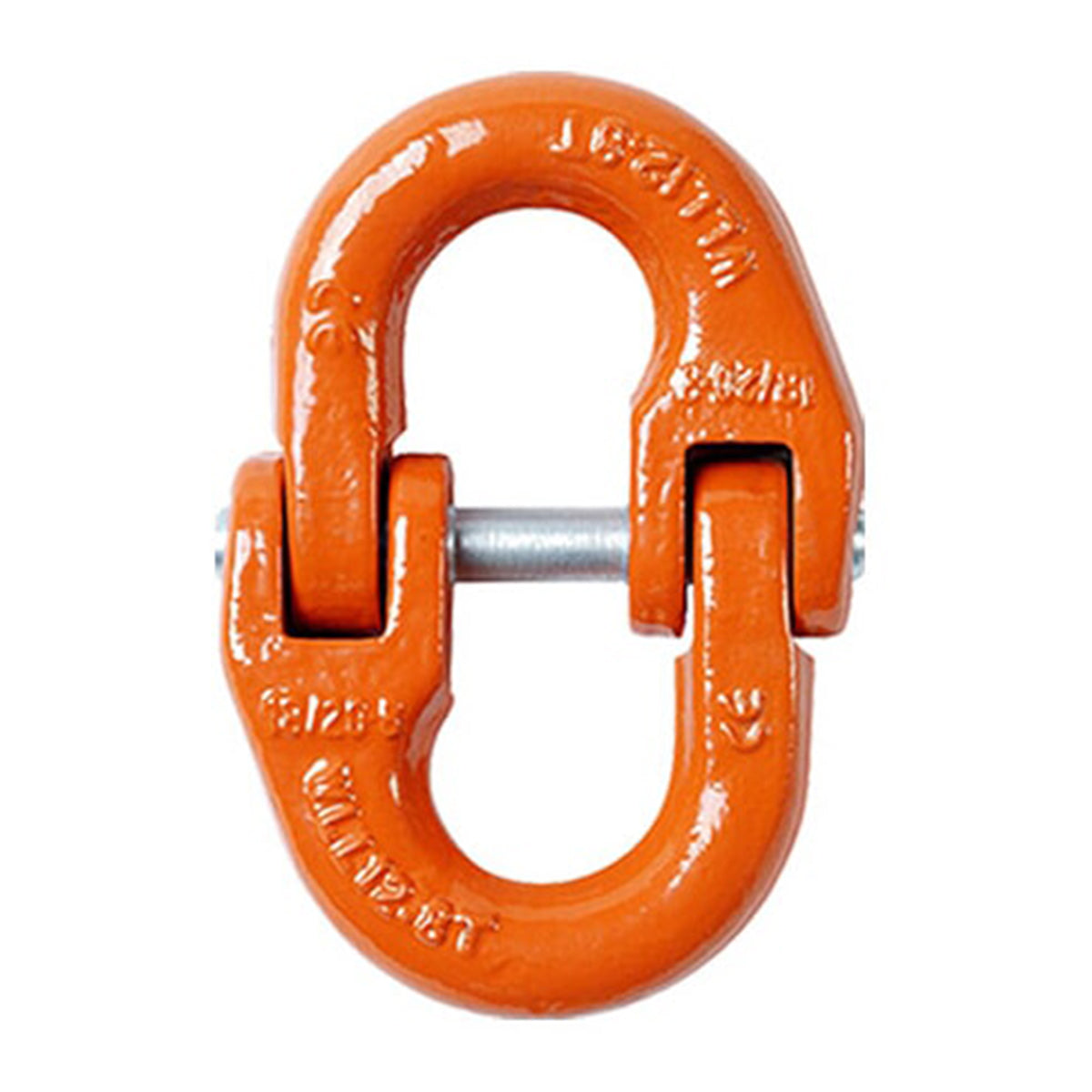

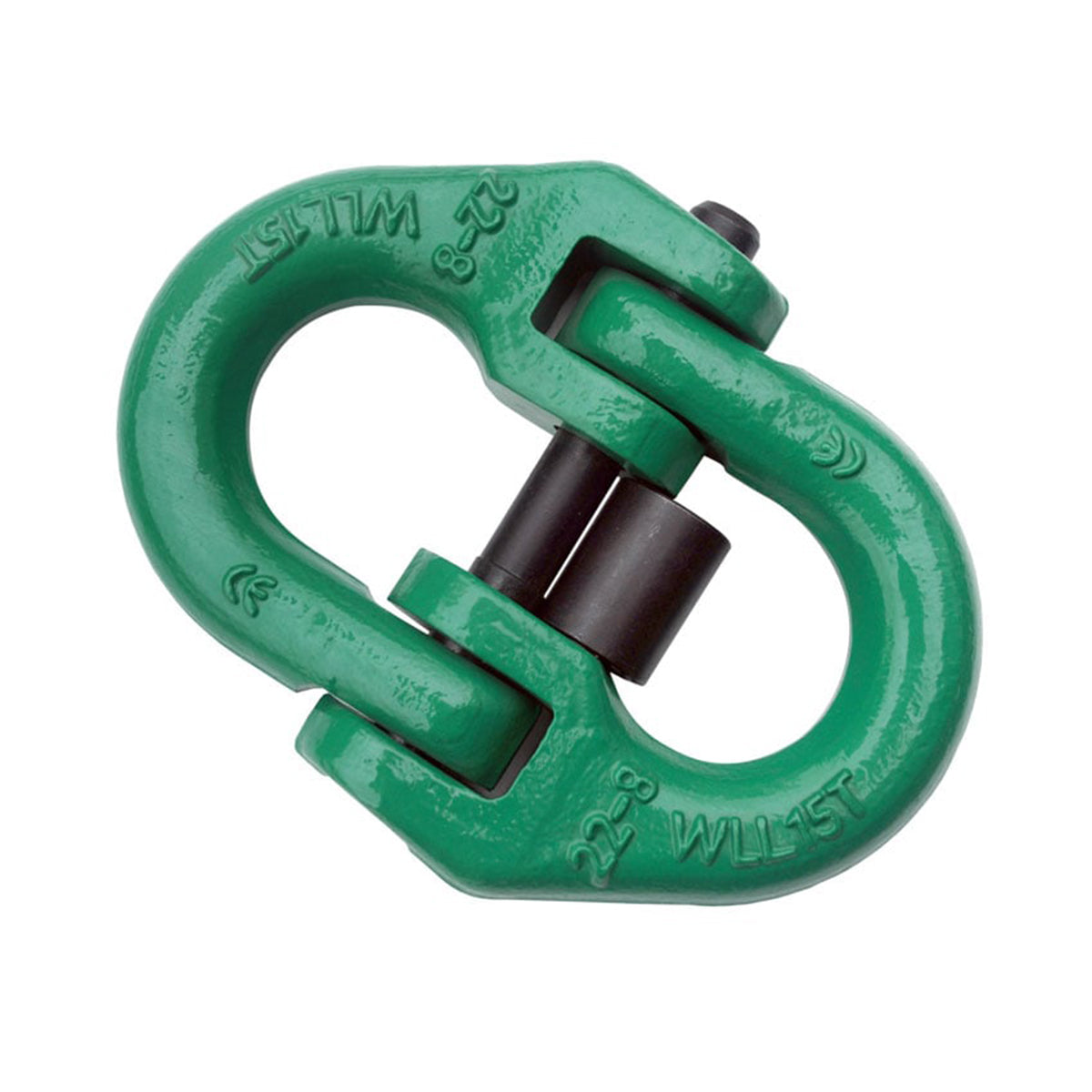

7/8mm Connecting Link – Grade 80 Alloy Steel
A forged Grade 80 alloy steel connecting link for assembling, dismantling and reassembling lifting chain slings quickly and safely without specialist tools. Available in orange or green.
- Working load limit
- 2,120 kg
- Min. breaking load
- 8,480 kg
- Grade
- Grade 80
- Material
- High-grade alloy steel, quenched and tempered
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
Made from high-grade quenched and tempered alloy steel, these chain connecting links are designed for use with Grade 80 lifting chain and are an essential component for building reliable, certified lifting chain slings. Their simple two-body pin-and-stud design allows rapid assembly, dismantling and reassembly without the need for specialist tooling.
Connecting links are used across a wide range of industries wherever heavy loads must be lifted and moved overhead. They join lifting chains, chain slings and other lifting accessories securely, and are marked with traceability information, WLL, batch number and size for full compliance and inspection confidence.
Each link is proof-load tested to 2.5 times its working load limit, with an ultimate load capacity of 4 times WLL and a fatigue rating of 1.5 times WLL at 20,000 cycles. When reassembling a connecting link, always fit a new pin and stud assembly.
- For use with Grade 80 alloy chain, 7/8 mm chain size
- Working Load Limit: 2,120 kg (2.12 t)
- Proof load tested to 2.5 × WLL; ultimate load 4 × WLL
- Marked with WLL, batch number, traceability and size
- Available in orange or green finish
- No specialist tools required for assembly or dismantling
Key features
- 01Grade 80 alloy steel
- 022,120 kg working load limit
- 03Tool-free assembly
- 04Fully traceable
- 05Versatile compatibility
