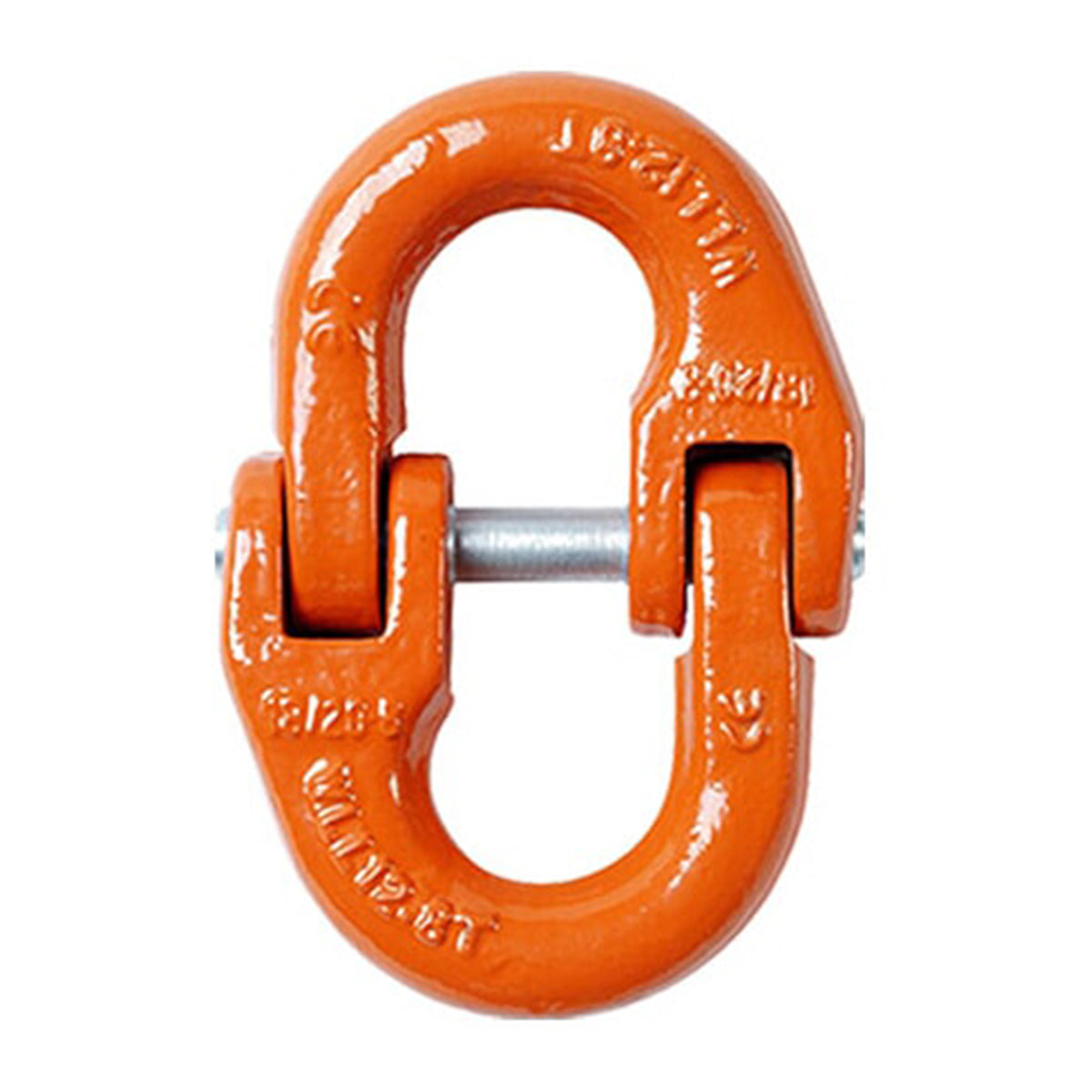

13mm Connecting Link – Grade 80 Alloy Steel Chain Connector
A forged alloy steel Grade 80 connecting link for quickly joining lifting chain slings and components. Rated to a 5,300 kg WLL with no special tools required for assembly or dismantling.
- Working load limit
- 5,300 kg
- Min. breaking load
- 21,200 kg
- Grade
- Grade 80
- Material
- High-grade alloy steel, quenched and tempered
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
This Grade 80 alloy steel connecting link is designed to join lifting chain slings and other lifting components quickly and reliably, without the need for specialist tools. Manufactured from high-grade alloy steel (quenched and tempered), each link is proof-load tested to 2.5 times its Working Load Limit and carries an ultimate load rating of 4 times capacity.

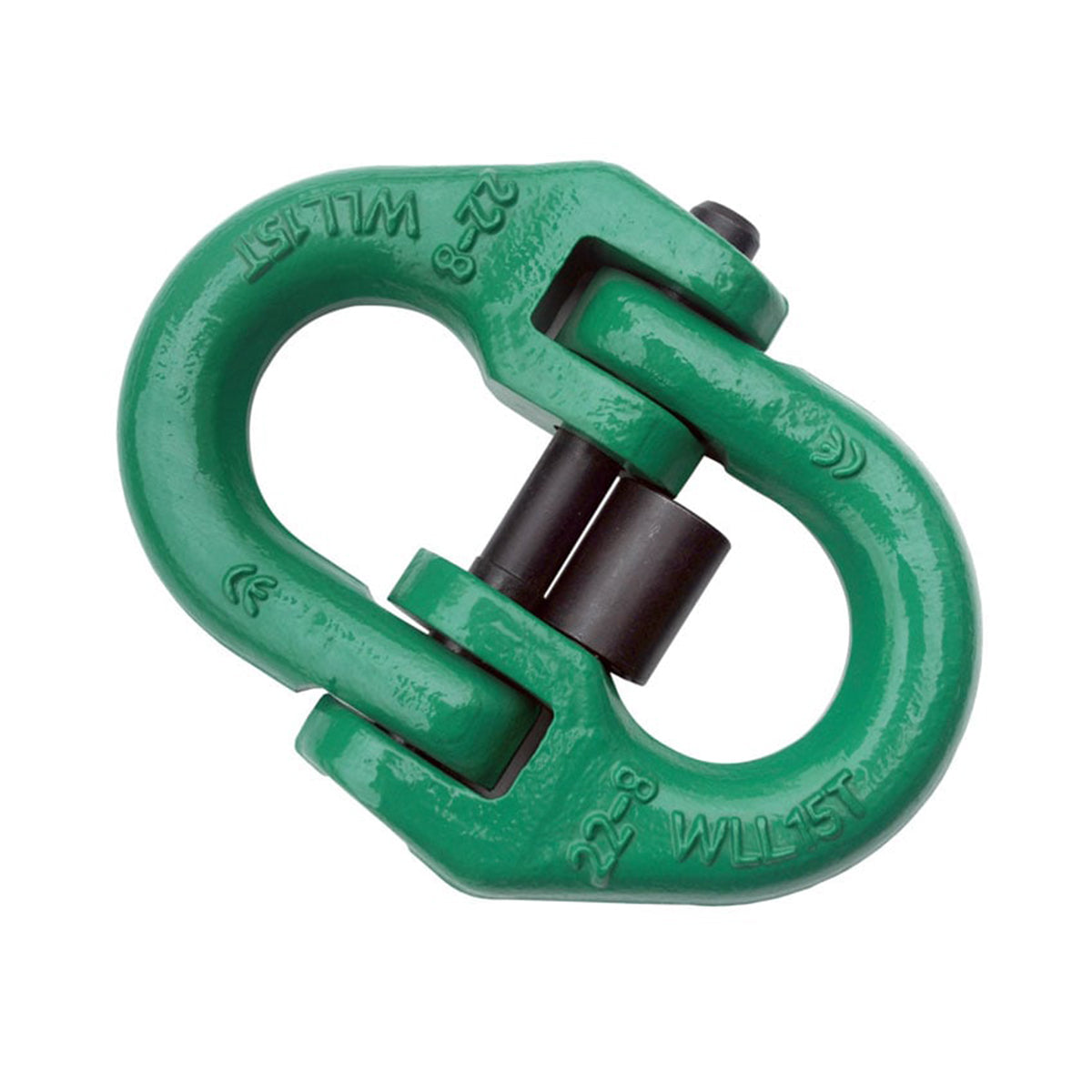

The two-piece C-link body design allows instant assembly, dismantling and reassembly of dependably safe lifting slings. Simply attach one chain or fitting to each C-link body half. When reassembling, it is recommended to fit a new pin and stud assembly, these are inexpensive and widely available.
Suitable for use with Grade 80 alloy chain in overhead lifting applications across construction, engineering, logistics and industrial sectors. Each link is marked with traceability information, WLL, batch number and size.
- Material: High-grade alloy steel, quenched and tempered (drop forged)
- Grade: 80 (G80)
- Working Load Limit: 5,300 kg (5.3 tonnes)
- Chain size: 13 mm
- Proof load tested to 2.5× WLL; ultimate load 4× WLL
- Fatigue rated to 1.5× WLL at 20,000 cycles
- No special tools required for assembly or dismantling
- Marked with ABLE traceability, WLL, batch number and size
Key features
- 01Grade 80 rated
- 025,300 kg working load limit
- 03Tool-free assembly
- 04Fully traceable
- 05Fatigue rated
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
