16mm Connecting Link – Grade 80 Alloy Steel Chain Connector
A forged high-grade alloy steel connecting link rated for Grade 80 lifting chain. Designed for fast, tool-free assembly and dismantling of safe, reliable lifting chain slings.
- Working load limit
- 8,000 kg
- Min. breaking load
- 32,000 kg
- Grade
- Grade 80
- Material
- High-grade alloy steel, quenched and tempered
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
This Grade 80 alloy connecting link is forged from high-grade alloy steel (quenched and tempered) and is designed to connect lifting chain slings and other lifting equipment for overhead lifting applications across a wide range of industries.
The simple two-body pin-and-stud design allows instant assembly, dismantling and reassembly without the need for specialist tools, making it ideal for riggers who need dependable, repeatable connections in the field. Only one chain or fitting should be assembled to each C-link body half. When reassembling a used C-link, a new pin and stud assembly is recommended.
Each link is marked with traceability information, WLL, batch number and size, and is proof-load tested to 2.5 times its working load limit. The ultimate load is 4 times the rated capacity and the link is fatigue rated at 1.5 times the WLL at 20,000 cycles.
- Material: high-grade alloy steel, quenched and tempered
- Grade: 80
- Working Load Limit: 8,000 kg (8.0 tonnes)
- For use with: Grade 80 alloy chain, 16 mm
- Proof load tested to 2.5× WLL
- Ultimate load: 4× WLL
- Fatigue rated: 1.5× WLL at 20,000 cycles
- Marked with WLL, traceability, batch number and size

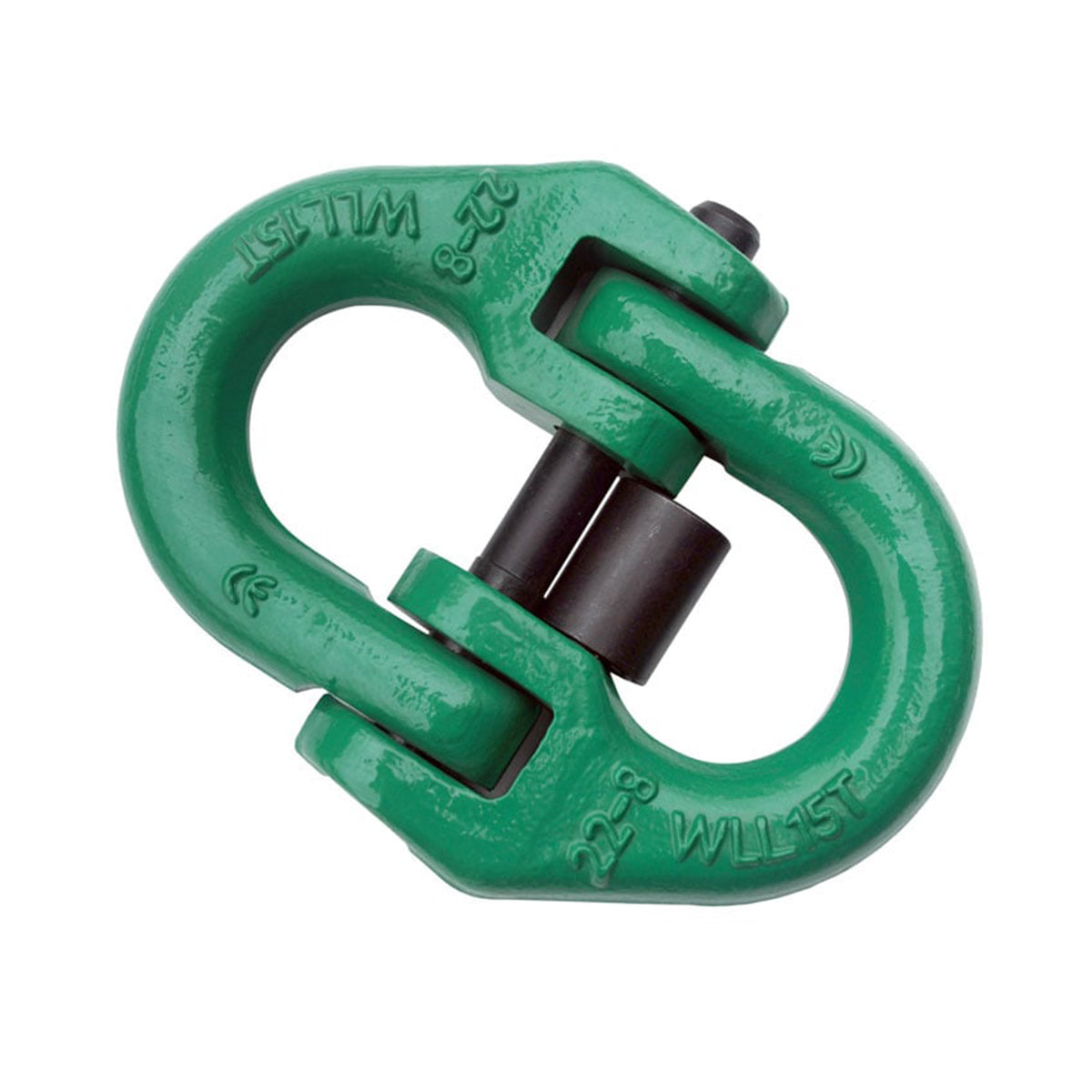

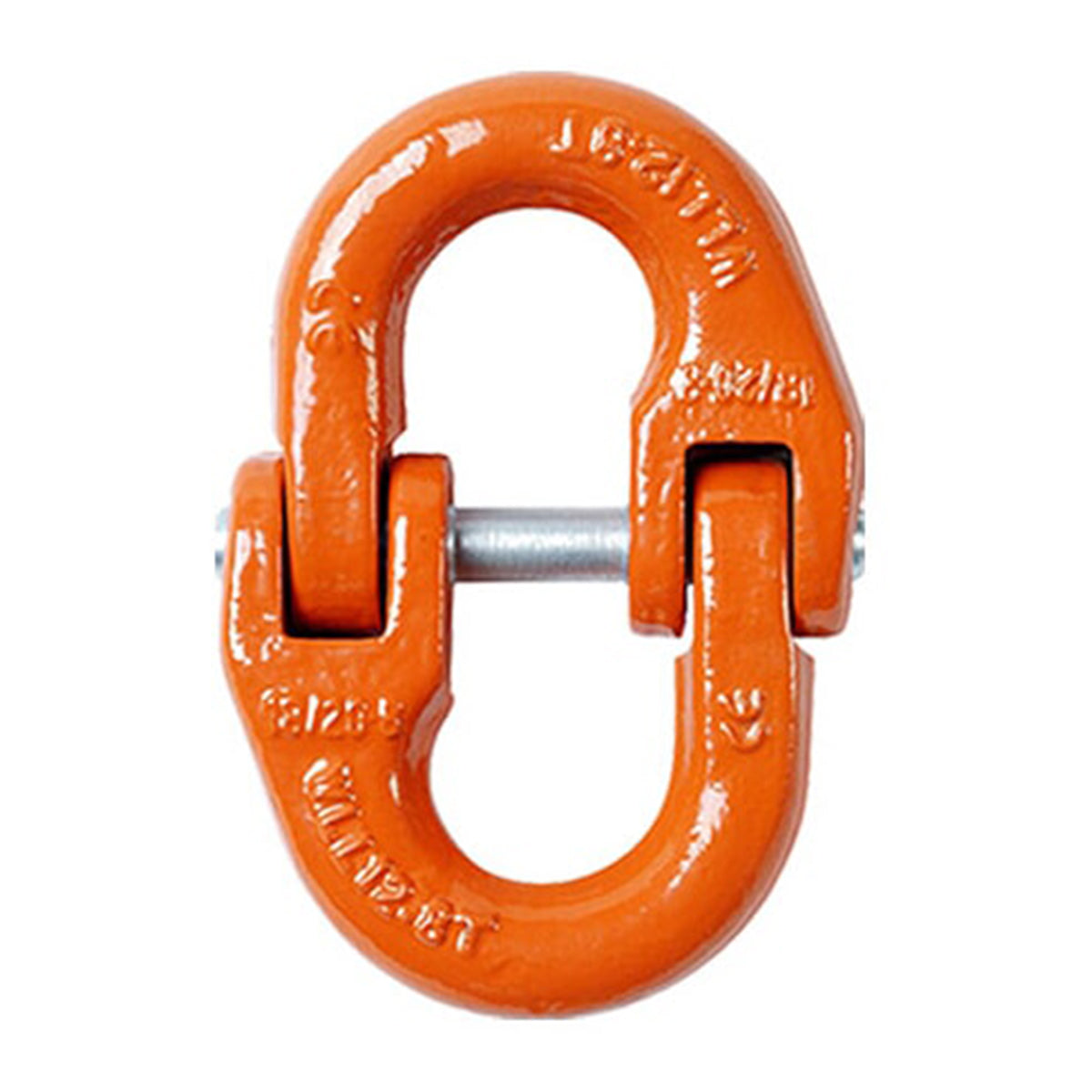

- Available in orange or green finish
Key features
- 01Rated for grade 80 chain
- 02High-grade forged alloy steel
- 03Tool-free assembly
- 04Proof load tested
- 05Fully traceable
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
How to use lifting chains
A short guide from the team on using it safely and getting the most from it. Turn on captions with CC to follow along without sound.
