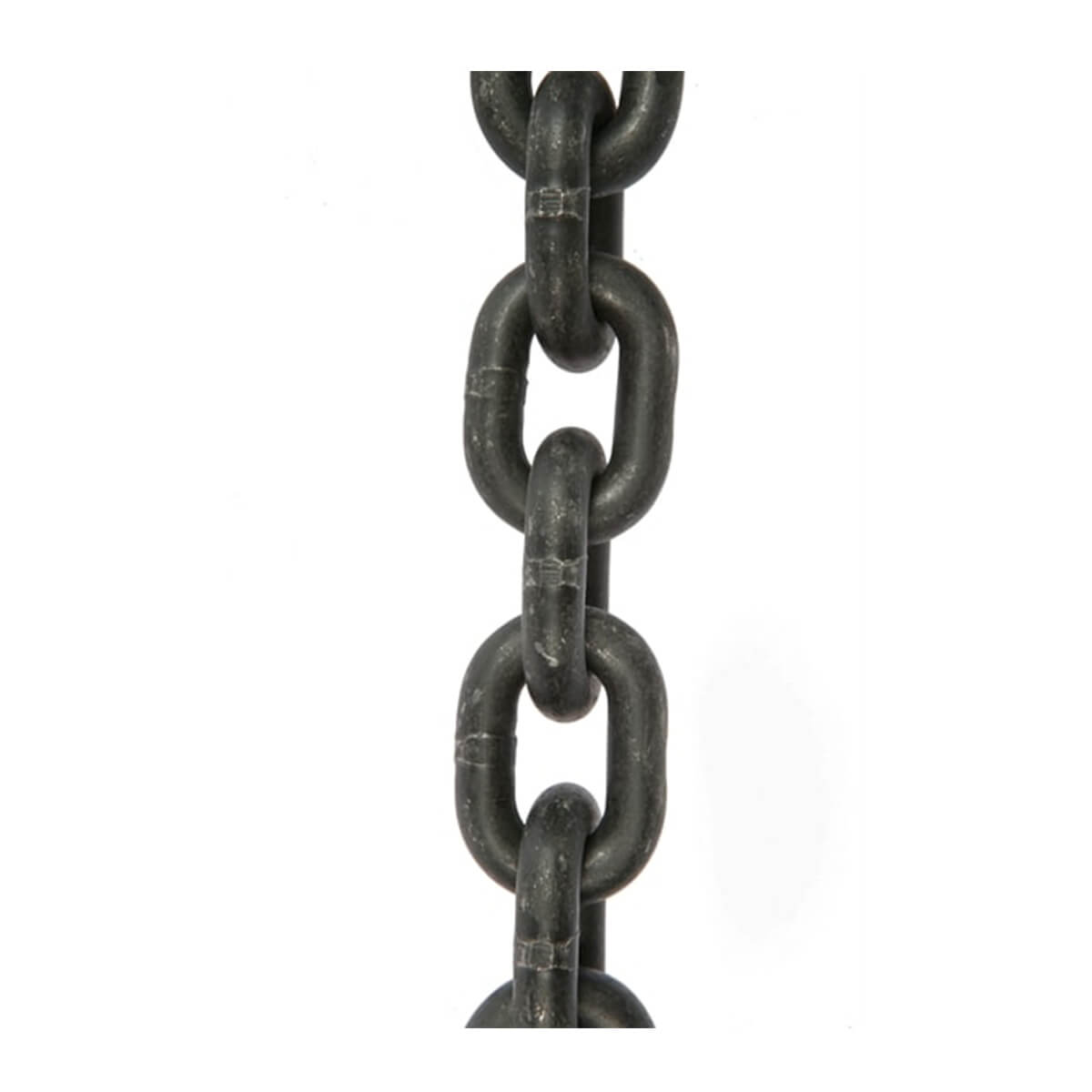

8mm Grade 80 Short Link Chain
Heavy-duty Grade 80 alloy steel short link chain, heat treated and proof tested for lifting, rigging, and tie-down applications. Priced per metre, order exactly the length you need.
- Working load limit
- 2,000 kg
- Min. breaking load
- 8,000 kg
- Chain size
- 8 mm
- Grade
- Grade 80
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
This Grade 80 short link chain is manufactured from high-grade alloy steel, quenched and tempered for exceptional tensile strength and abrasion resistance. Its short-link design maximises flexibility whilst minimising the risk of snagging or damage, making it the ideal chain for building custom lifting slings, rigging assemblies, and tie-down applications.
Each link is permanently embossed for easy identification and traceability throughout its working life. Produced using German WAFIOS computerised automatic knitting, spot welding, and calibration equipment, every link is identical, ensuring consistent performance and reliable load distribution across the entire length of chain.
Available in lengths from 1 m to 15 m, priced per metre, so you can order precisely the quantity required for your application.
- Made from high-grade alloy steel, Grade 80 (Quenched and Tempered)

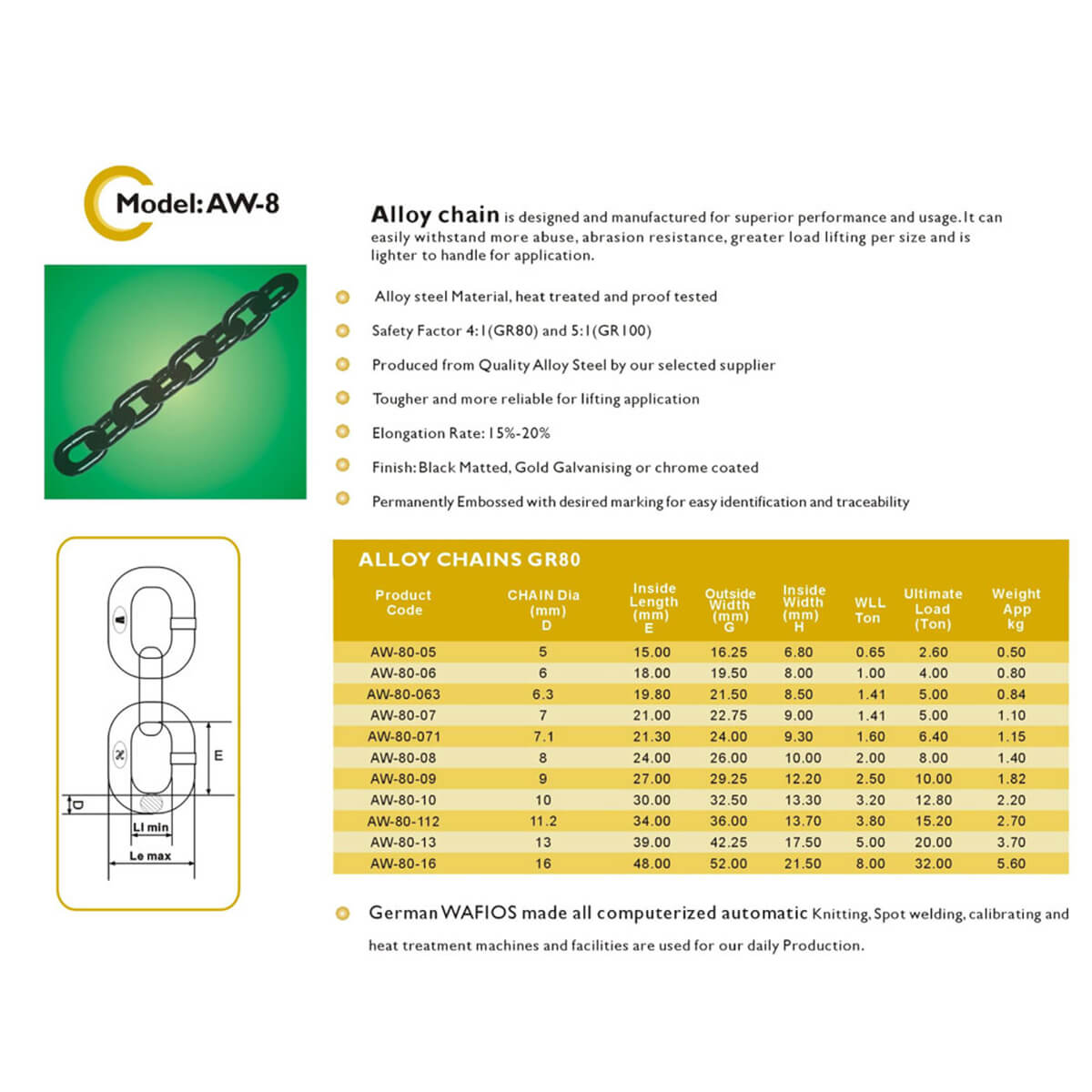

- Working Load Limit (WLL): 2,000 kg (2.0 t) per the GR80 spec sheet for 8 mm diameter
- Proof load tested to 2.5× WLL; ultimate load 4× WLL
- Permanently embossed links for identification and traceability
- German WAFIOS automated production, every link calibrated and identical
- Suitable for lifting slings, rigging, and tie-down applications
- Available in black matt finish
Key features
- 01Grade 80 alloy steel
- 02Working Load Limit 2,000 kg (20 t)
- 03Short-link design maximises flexibility and reduces snagging risk
- 04Permanently embossed links ensure easy identification and full traceability throughout the chain's service life
- 05Priced per metre from 1 m to 15 m
Specification
Values that change with your selection, such as length, are in the options above.
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
How to use lifting chains
A short guide from the team on using it safely and getting the most from it. Turn on captions with CC to follow along without sound.
