10mm Grade 80 Short Link Chain
Heavy-duty 10mm Grade 80 alloy steel short link chain for lifting, rigging and tie-down applications. Heat treated, proof load tested, and sold by the metre to suit your exact requirements.
- Working load limit
- 3,100 kg
- Min. breaking load
- 12,800 kg
- Chain size
- 10 mm
- Grade
- Grade 80
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

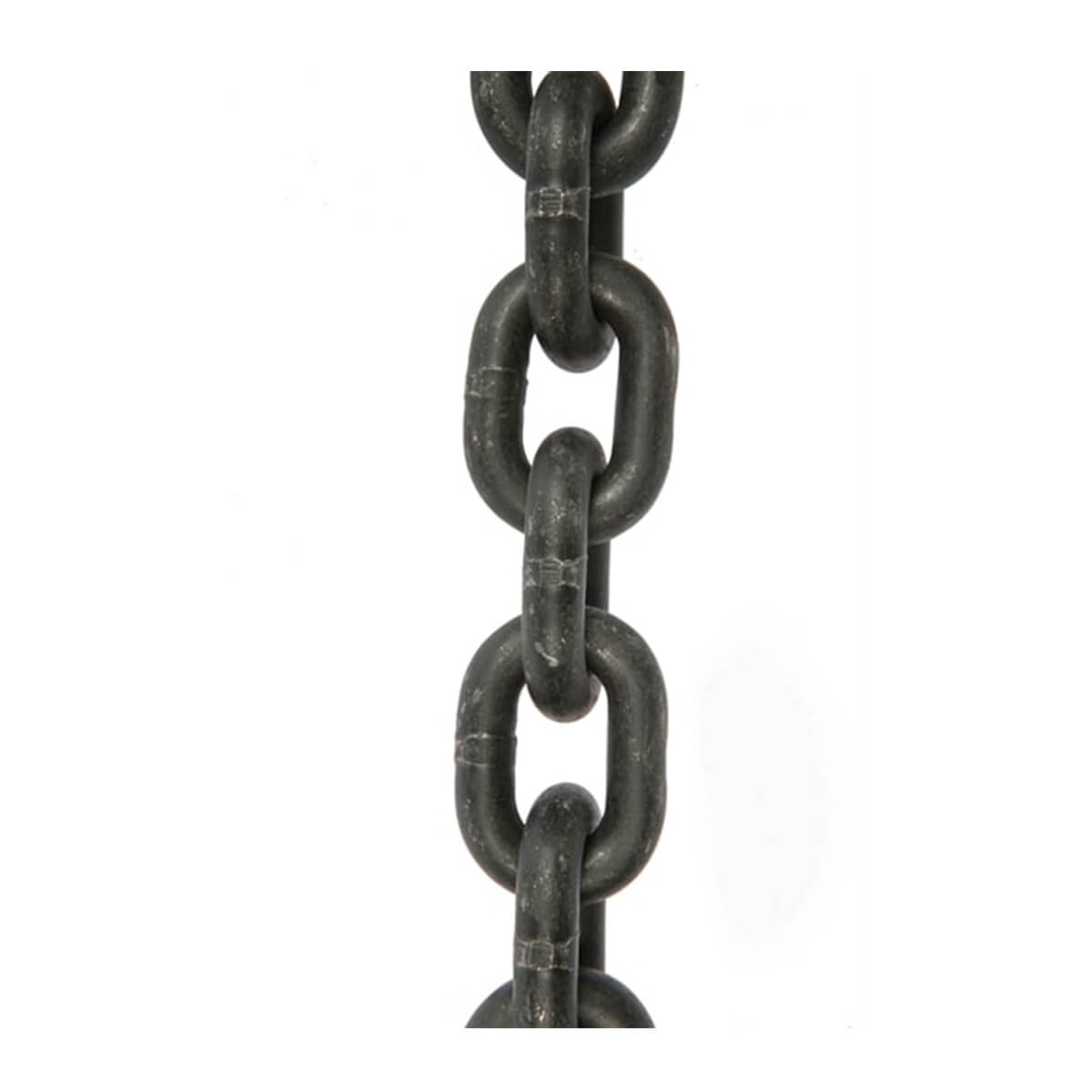

Grade 80 short link chain in 10mm diameter, manufactured from high-grade alloy steel and heat treated for superior tensile strength, abrasion resistance and long service life. Lighter per size than lower grades yet capable of greater loads, this chain is ideal for building bespoke chain slings, rigging assemblies and tie-down systems. Sold by the metre so you order precisely what you need, no waste, no compromise.
- Made from high-grade alloy steel, quenched and tempered (Grade 80)
- Permanently embossed with identification markings for full traceability
- Produced using German WAFIOS computerised automatic knitting, spot welding and calibration, every link is identical
- Proof load tested to 2.5× WLL; ultimate load 4× WLL
- Elongation rate 15-20% provides advance warning before failure
- Available in lengths from 1 m to 15 m, priced per metre
- Finish: black matt

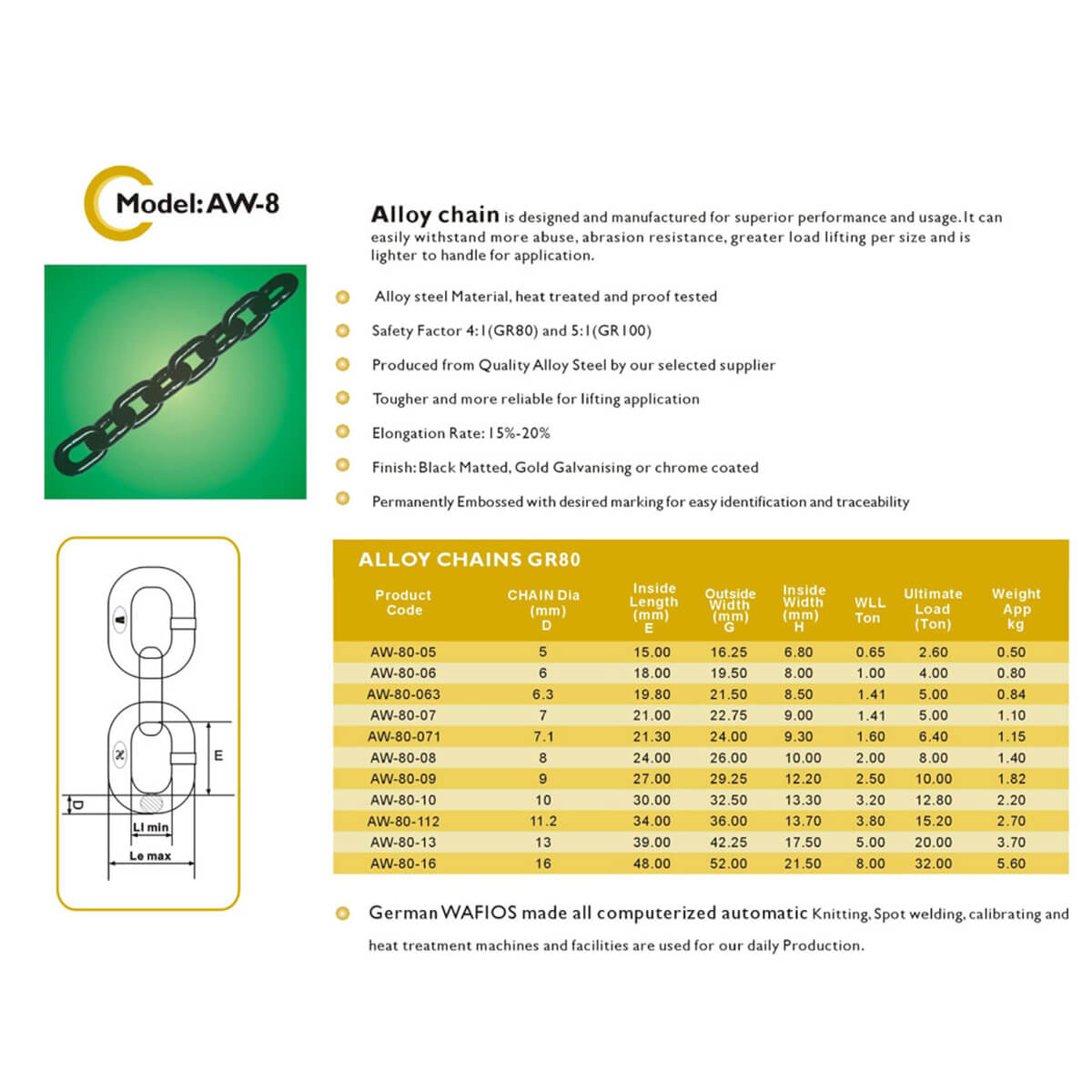

Working Load Limit: 3,100 kg (3.1 t) | Chain diameter: 10 mm | Inside length: 30 mm | Outside width: 32.5 mm | Inside width: 13.3 mm | Weight: approx. 2.20 kg/m
Key features
- 01Grade 80 alloy steel
- 02Precision manufactured
- 03Permanently embossed
- 04Sold by the metre
- 05Abrasion resistant
Specification
Values that change with your selection, such as length, are in the options above.
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
How to use lifting chains
A short guide from the team on using it safely and getting the most from it. Turn on captions with CC to follow along without sound.
