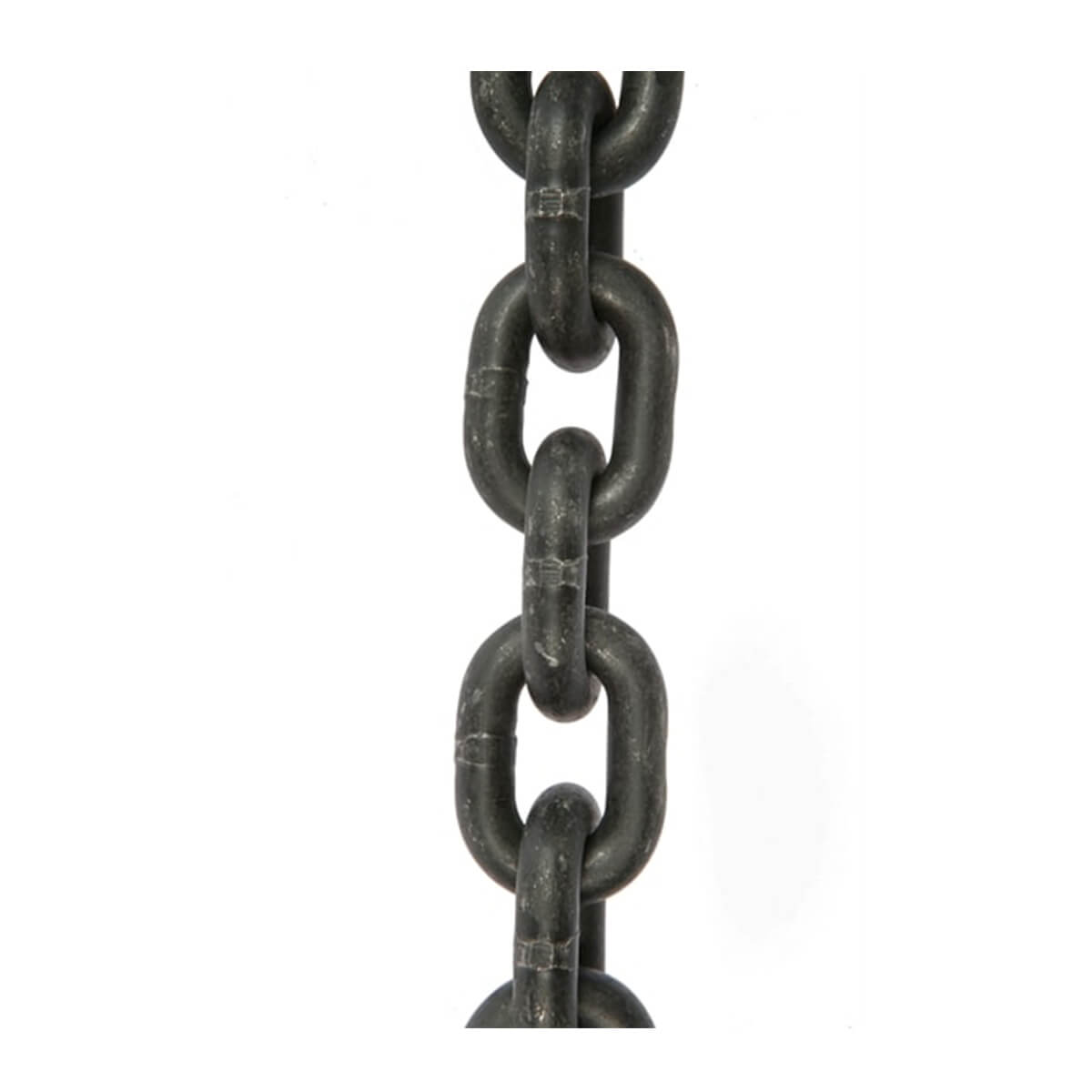

16mm Grade 80 Short Link Chain
Heavy-duty 16mm Grade 80 alloy steel short link chain, heat treated and proof tested to an 8-tonne WLL. Sold by the metre for lifting slings, rigging, and tie-down applications.
- Working load limit
- 8,000 kg
- Min. breaking load
- 32,000 kg
- Chain size
- 16 mm
- Grade
- Grade 80
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
This 16mm Grade 80 short link chain is manufactured from high-grade alloy steel and heat treated for exceptional tensile strength, wear resistance, and reliable performance in demanding lifting and rigging environments. Priced and sold by the metre, you can order precisely the length you need to build a custom chain sling or complete a rigging assembly.
Each link is permanently embossed for easy identification and traceability on site. Production uses German WAFIOS computerised automatic knitting, spot welding, calibrating, and heat treatment machinery, ensuring every link is dimensionally identical and consistently strong.
Key Features
- Material: High-grade alloy steel, Grade 80 (Quenched and Tempered)
- Working Load Limit (WLL): 8,000 kg (8 tonnes)
- Ultimate load: 32 tonnes (4 × WLL)

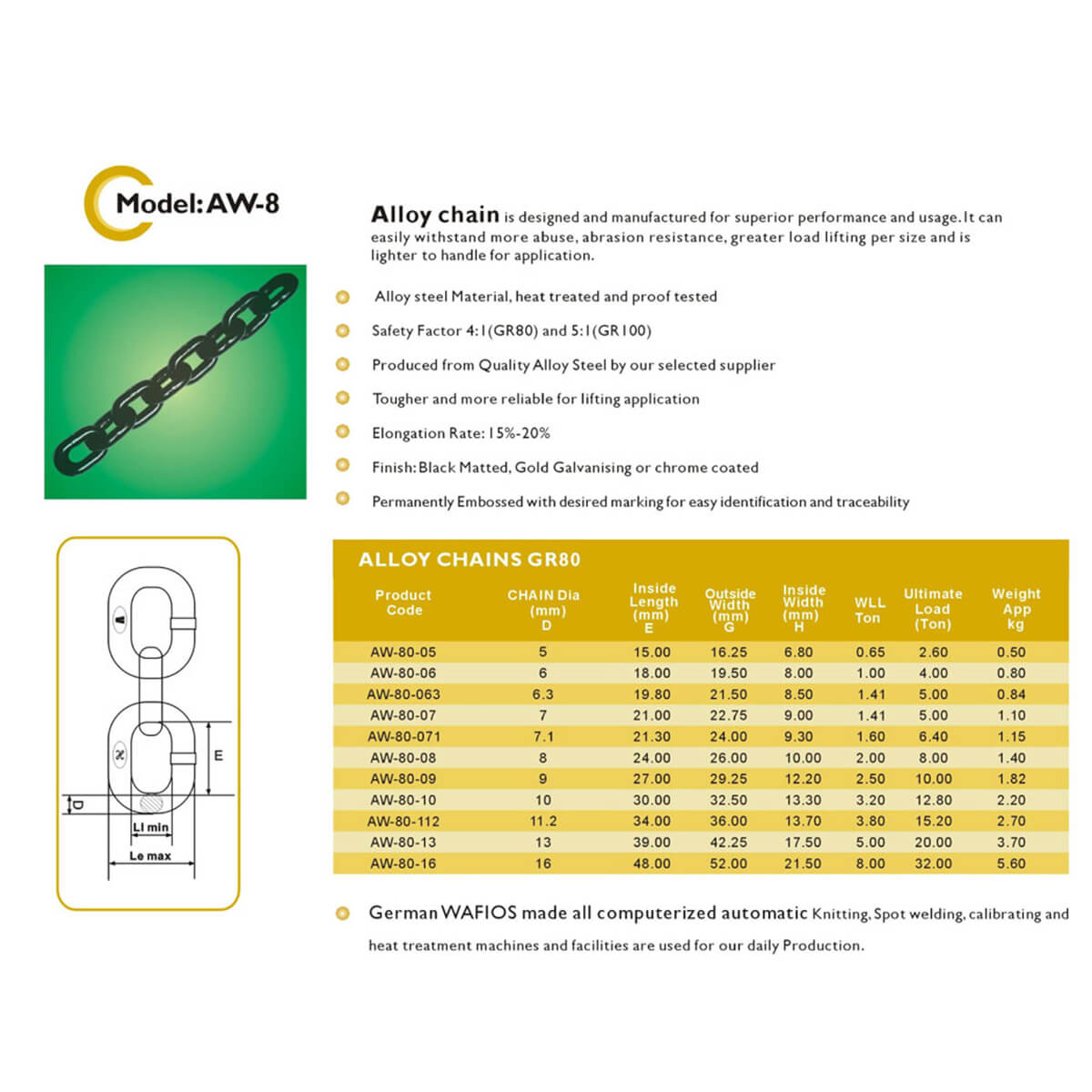

- Chain diameter: 16 mm | Inside length: 48 mm | Outside width: 52 mm | Inside width: 21.5 mm
- Approximate weight: 5.60 kg per metre
- Finish: Black matte
- Elongation rate: 15-20%
- Permanently embossed links for identification and traceability
- Proof load tested to 2.5 × WLL
- Suitable for lifting slings, rigging, and tie-down applications
Key features
- 018-tonne WLL
- 02Grade 80 alloy steel
- 03Sold by the metre
- 04German wafios manufacture
- 05Permanently embossed links
Specification
Values that change with your selection, such as length, are in the options above.
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
How to use lifting chains
A short guide from the team on using it safely and getting the most from it. Turn on captions with CC to follow along without sound.
