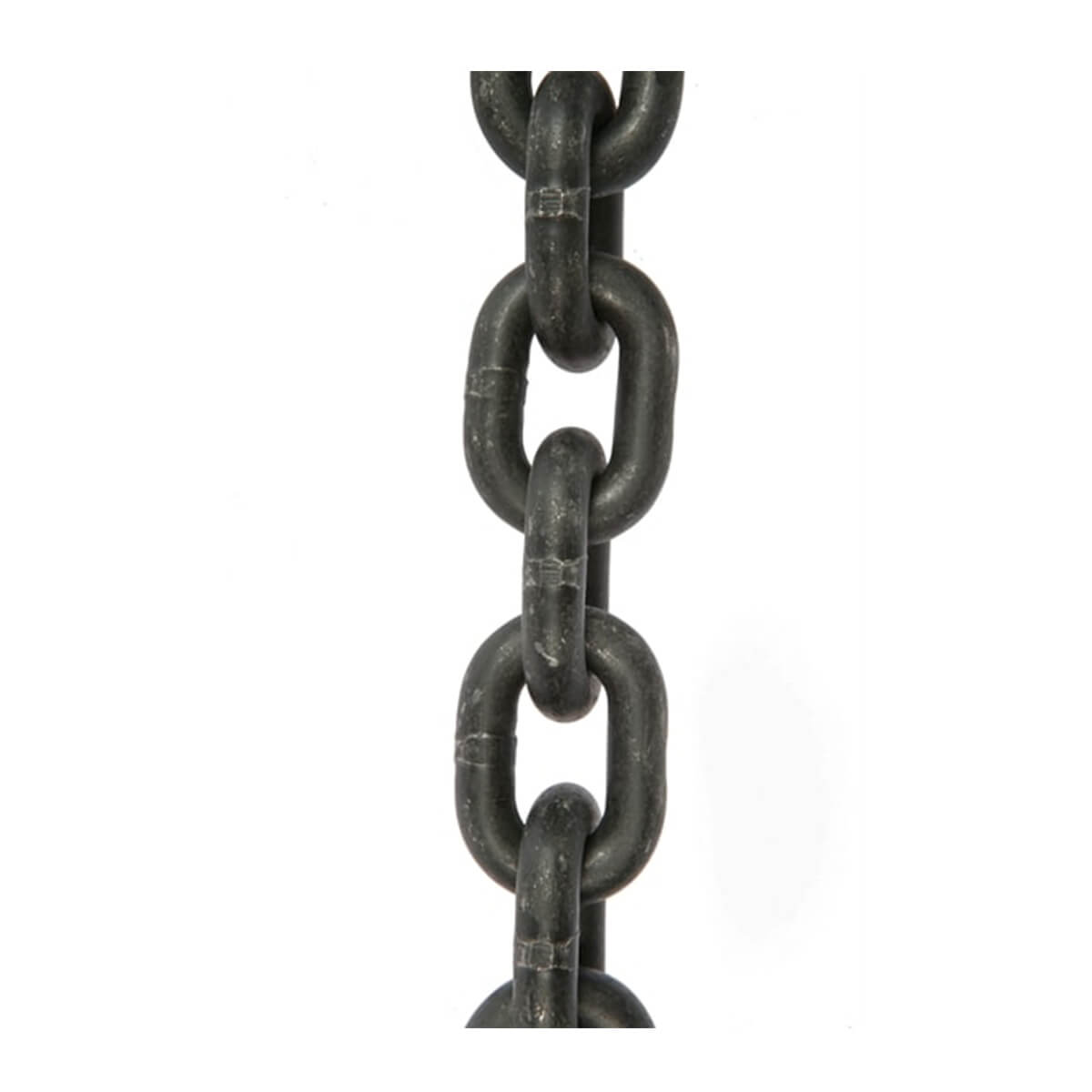

7mm Grade 80 Short Link Chain
Heat-treated Grade 80 alloy steel short link chain for lifting, rigging and tie-down applications. Priced per metre so you order exactly what you need, from 1 m to 15 m.
- Working load limit
- 1,500 kg
- Min. breaking load
- 6,000 kg
- Chain size
- 7 mm
- Grade
- Grade 80
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
Grade 80 short link chain offers maximum flexibility and minimum vulnerability to damage. Made from high-grade quenched and tempered alloy steel, this 7 mm chain is heat treated for superior tensile strength and resistance to wear, making it ideal for lifting sling assemblies, rigging and tie-down applications.
Sold by the metre, you can order precisely the length you require, from 1 m up to 15 m, keeping costs controlled and waste to a minimum. Each link is permanently embossed for easy identification and full traceability throughout its working life.
Manufactured using German WAFIOS computerised automatic knitting, spot welding, calibrating and heat treatment machinery, ensuring every link is identical in dimension and strength.
- Material: high-grade alloy steel, Grade 80 (Quenched and Tempered)
- Working Load Limit: 1,500 kg (1.5 t)
- Chain diameter: 7 mm

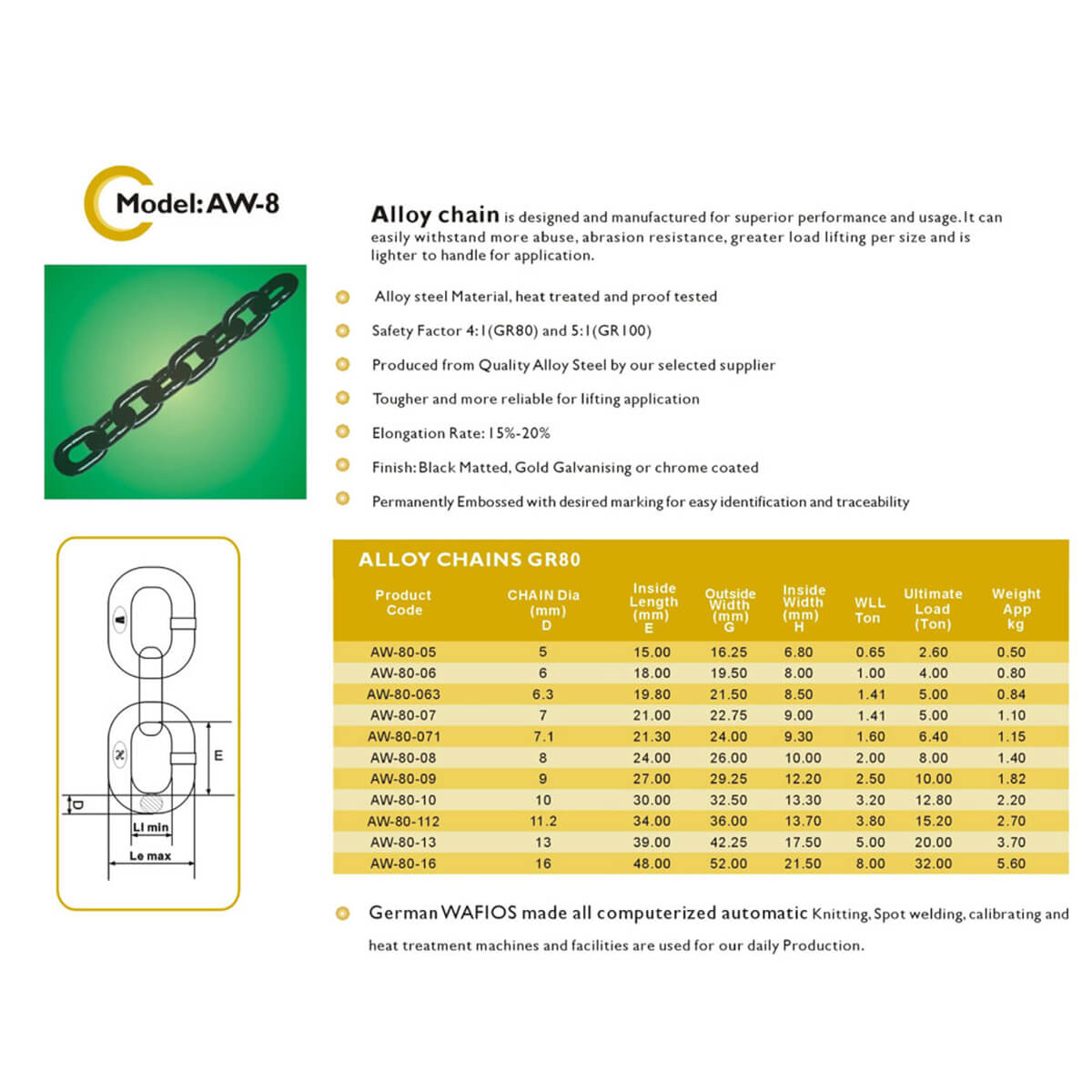

- Inside length: 21.00 mm | Outside width: 22.75 mm | Inside width: 9.00 mm
- Approximate weight: 1.10 kg/m
- Finish: Black Matted
- Elongation rate: 15-20%
- Permanently embossed for identification and traceability
- Proof load tested; ultimate load 4× WLL
- Available in 1 m increments from 1 m to 15 m
Key features
- 01Grade 80 alloy steel
- 021,500 kg working load limit
- 03Priced per metre
- 04Permanently embossed links
- 05Wafios precision manufacture
Specification
Values that change with your selection, such as length, are in the options above.
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
How to use lifting chains
A short guide from the team on using it safely and getting the most from it. Turn on captions with CC to follow along without sound.
