8000kg Weld-On Hook – WH80

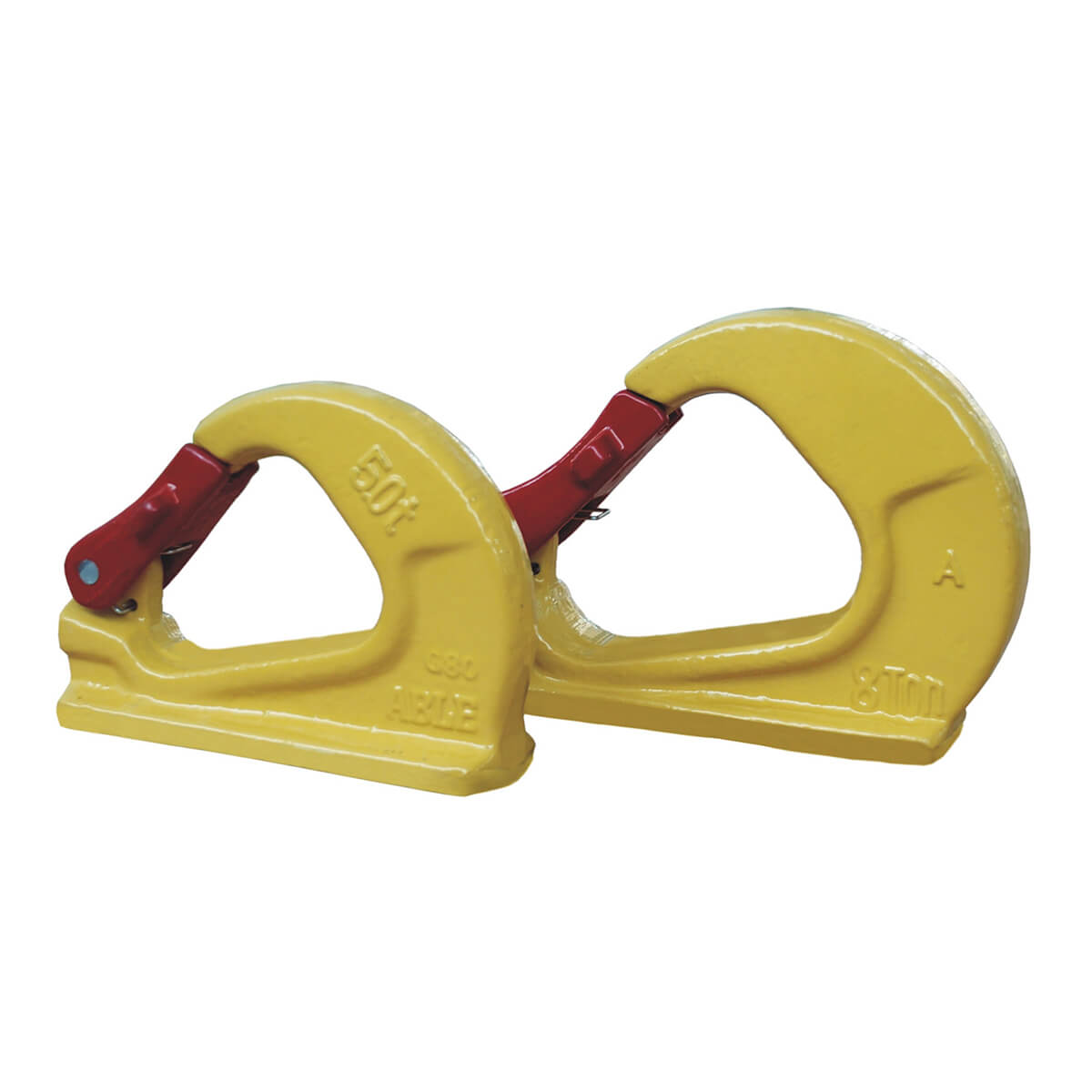

ABLE WH80 Weld-On Hook, 8,000 kg WLL

Manufactured from treated alloy steel, the ABLE WH80 Weld-On Hook is engineered to create permanent, fixed anchor points wherever they are needed, on spreader beams, vehicles, fabrications and other lifting equipment. The hook is designed for axial loading and features a positive-locking safety latch with a stainless steel spring, keeping the hook securely closed during every lift.

Welding instructions must be followed as issued by ABLE. Surfaces must be cleaned thoroughly before welding, operations must be continuous, and surfaces must be preheated if the ambient temperature is below 10 °C. Use basic coated electrodes to AS 1553.1: E4848 Grade 4-6 or AWS A5.1: E7018-1 or equivalent.

• Working load limit: 8,000 kg
• Welding size (fillet): 7 mm
• Base plate dimensions: 170 × 50 mm

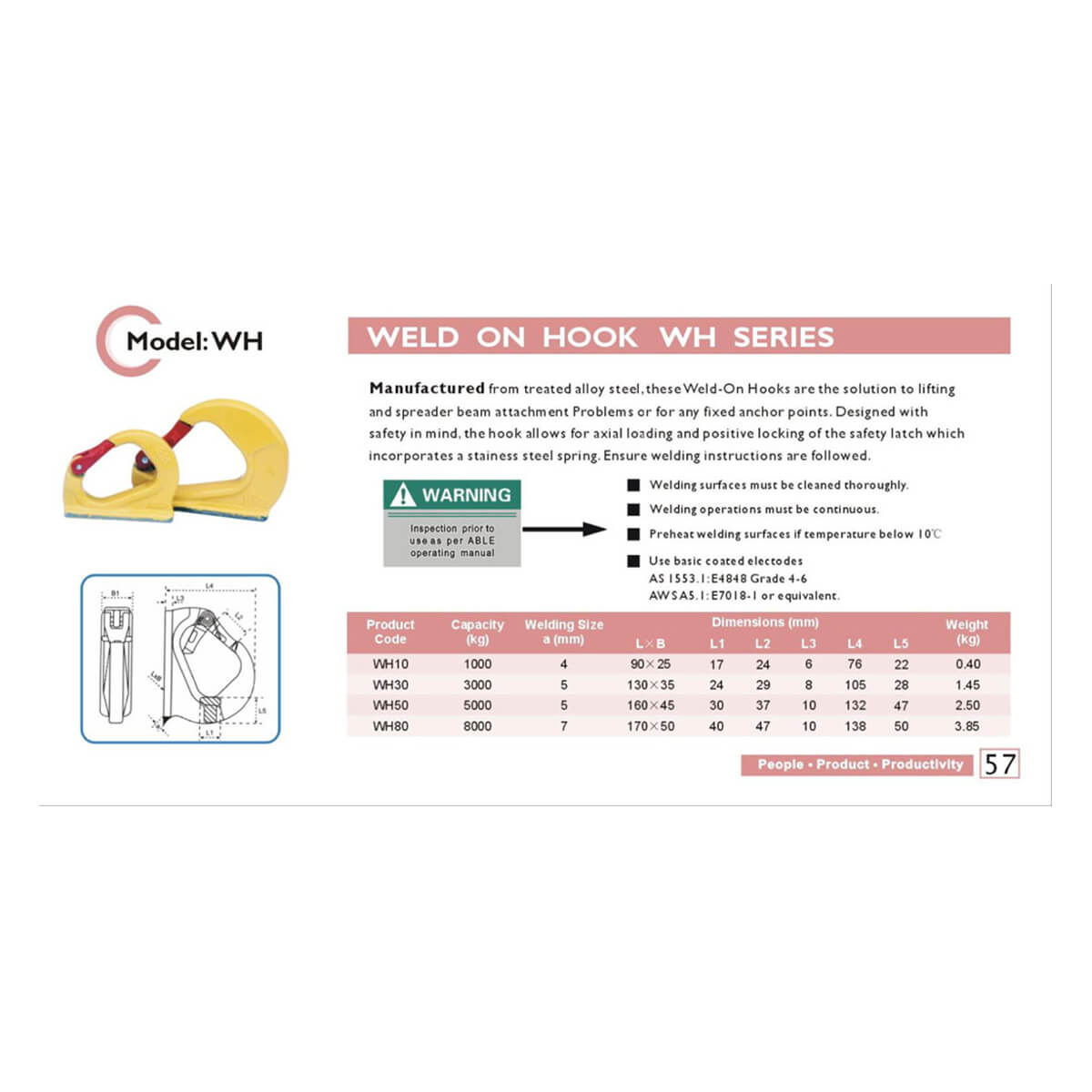

• Dimensions, L1: 40 mm | L2: 47 mm | L3: 10 mm | L4: 138 mm | L5: 50 mm
• Weight: 3.85 kg
• Material: treated alloy steel body, stainless steel spring latch
• Marked with brand, WLL, batch number and size
• Inspection required prior to use as per ABLE operating manual

Please note: A proof load is applied at manufacture, however the stated WLL is subject to the correct welding procedure being carried out in full accordance with ABLE guidelines.
