3000kg Weld-On Hook – WH30 | Treated Alloy Steel | Safety Latch

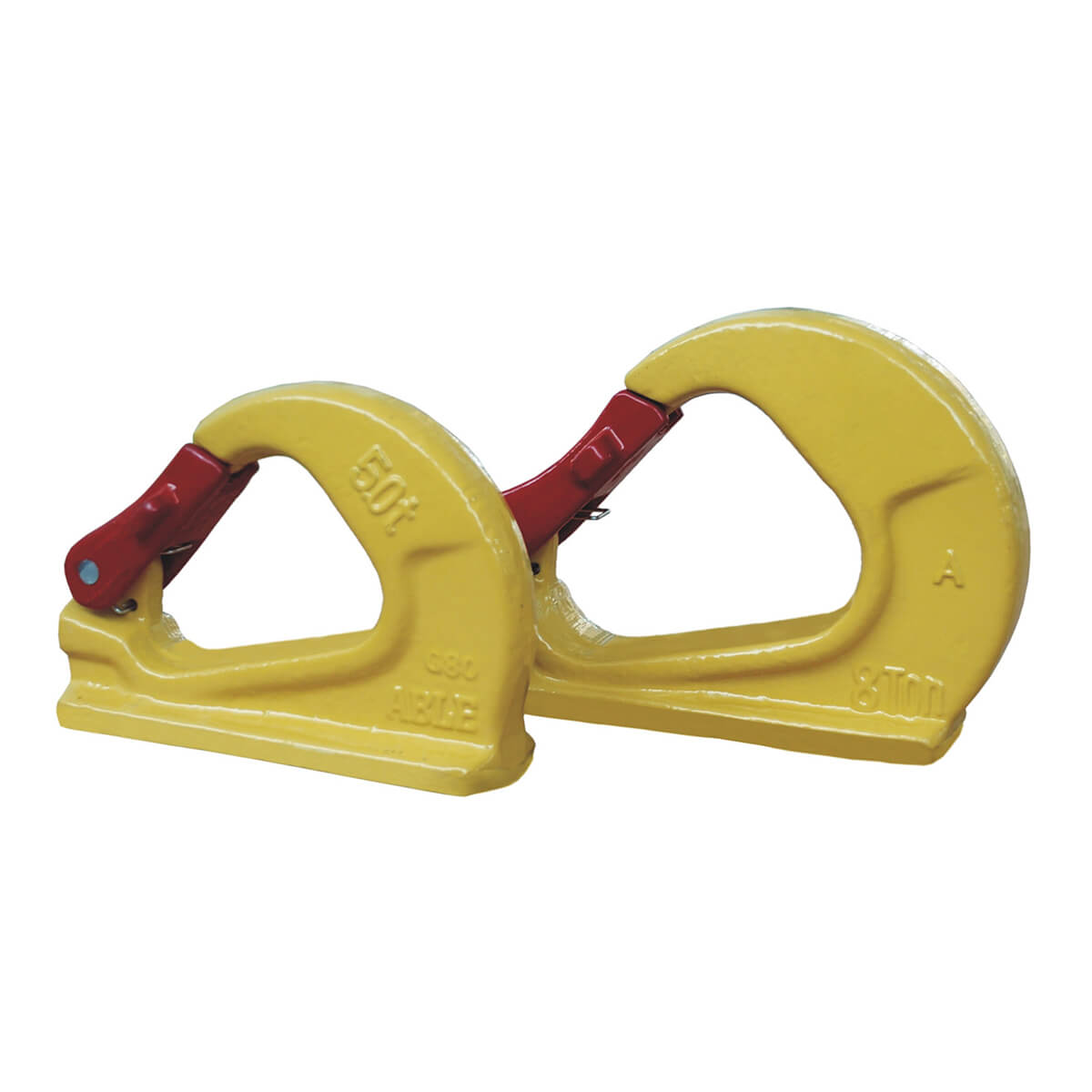

ABLE WH30 Weld-On Hook, 3000 kg Capacity

Manufactured from treated alloy steel, the ABLE WH30 Weld-On Hook gives you the freedom to create permanent, reliable anchor points wherever they are needed, on spreader beams, plant machinery, vehicles, and fabricated steelwork. The hook is designed for axial loading and incorporates a positive-locking safety latch with a stainless steel spring, ensuring the load remains secure during every lift.

Once welded in place (following the supplied welding instructions), the hook can be used with lifting chains, slings, and other compliant lifting accessories. Each hook is marked with the brand, working load limit, batch number, and size for full traceability.

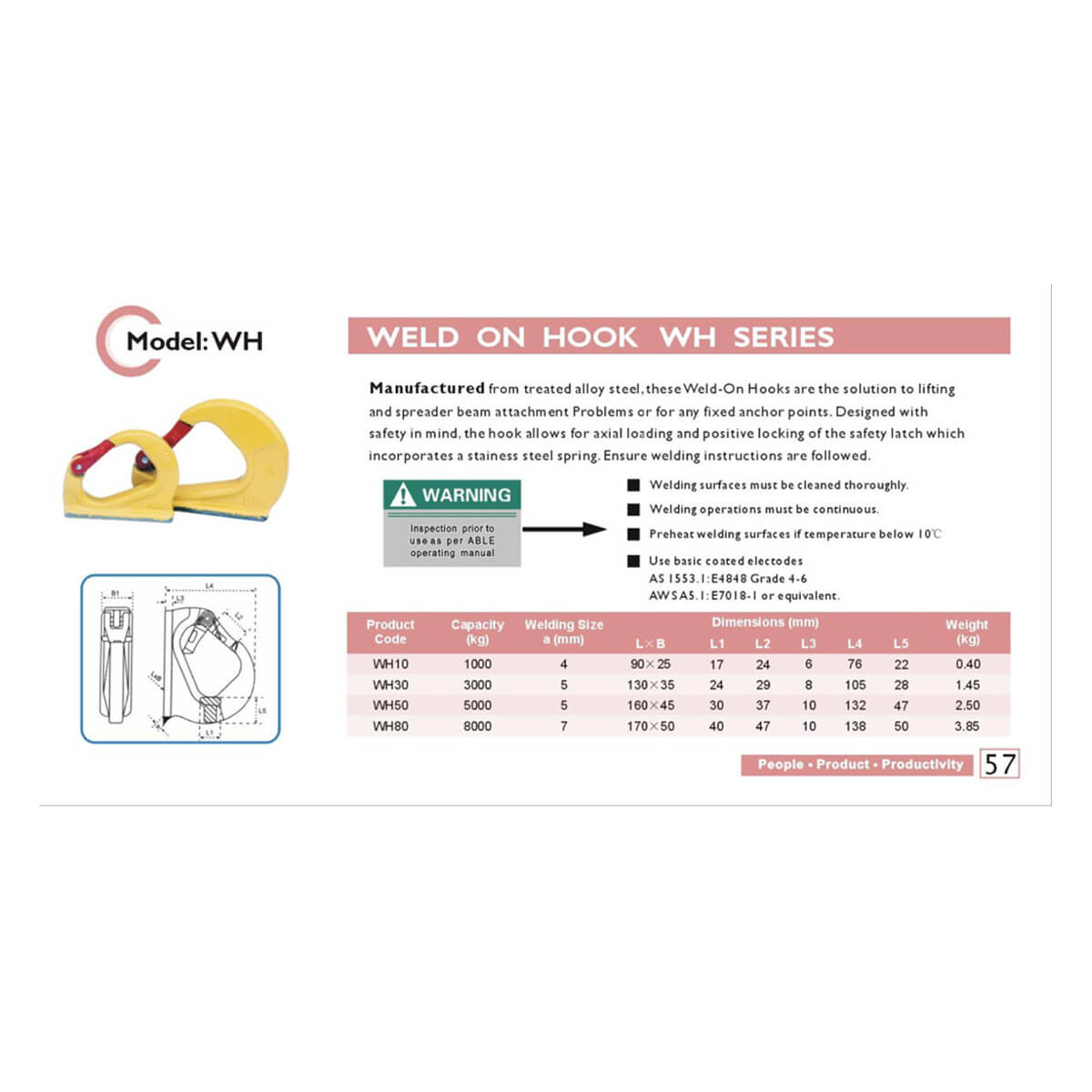

Important: The stated WLL applies only when the correct welding procedure has been followed. Welding surfaces must be cleaned thoroughly, welding operations must be continuous, surfaces should be preheated if the temperature is below 10 °C, and basic coated electrodes to AS 1553.1:E4848 Grade 4-6 or AWS A5.1:E7018-1 (or equivalent) must be used. Inspect prior to use as per the ABLE operating manual.

• Working load limit: 3000 kg (3 tonne)
• Material: Treated alloy steel
• Safety latch: Positive-locking with stainless steel spring
• Welding size (fillet): 5 mm
• Base plate (L × B): 130 × 35 mm
• Dimension L1: 24 mm
• Dimension L2: 29 mm
• Dimension L3: 8 mm
• Dimension L4: 105 mm
• Dimension L5: 28 mm
• Weight: 1.45 kg
• Product code: WH30
• Suitable for use as a chain/sling component in lifting assemblies
