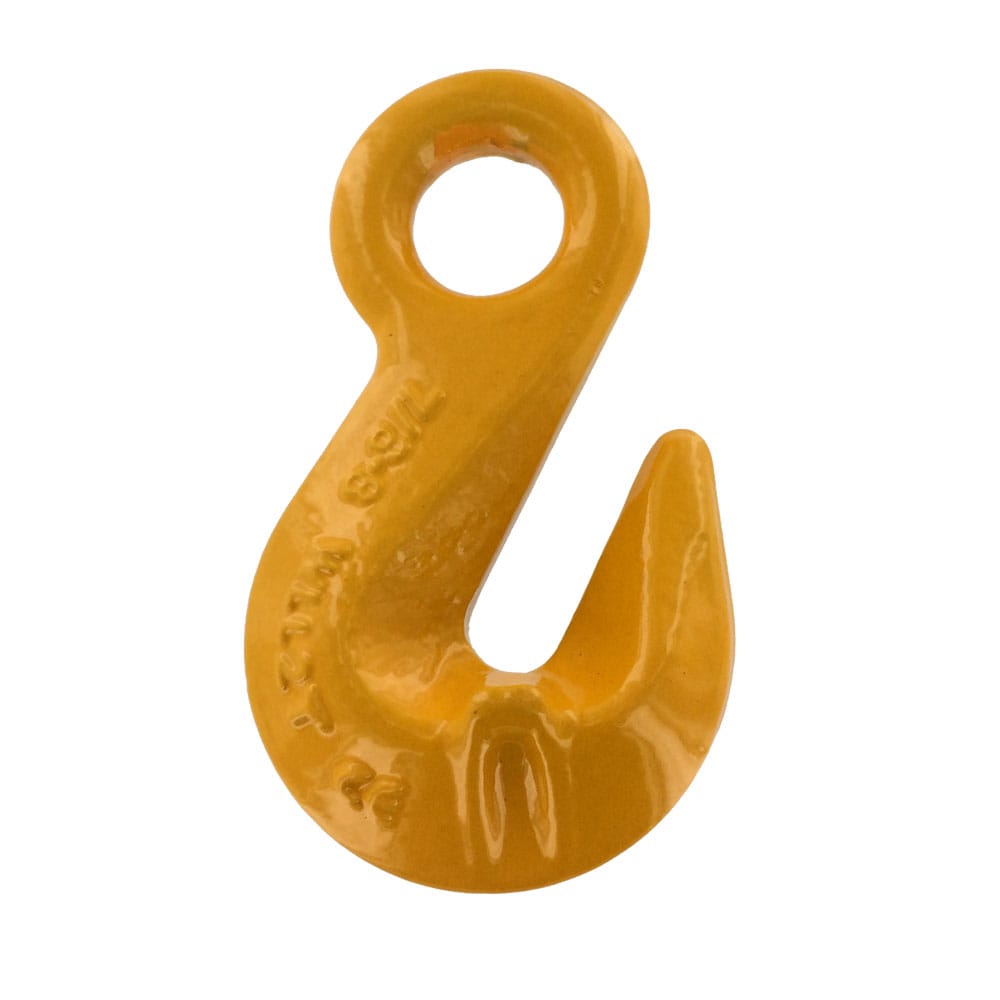

7/8mm Eye Grab Hook – Grade 80 Alloy Steel
A Grade 80 alloy steel eye grab hook for use with 7/8mm lifting chain. Features a reinforced saddle and supporting wings to maintain full working load limit without chain deformation.
- Working load limit
- 2,120 kg
- Min. breaking load
- 8,480 kg
- Grade
- Grade 80
- Fittings
- Grab hook
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

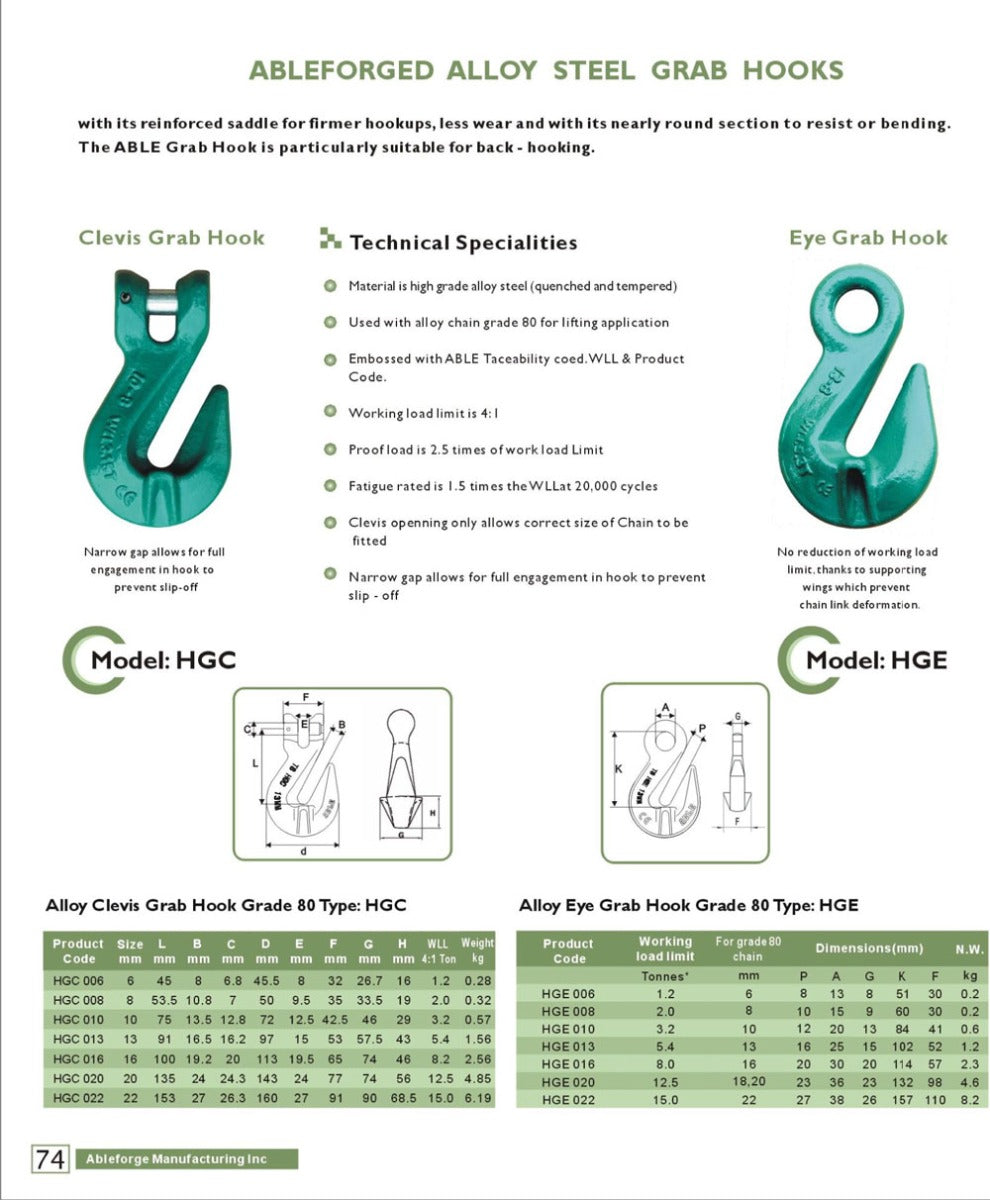

This Grade 80 alloy steel eye grab hook is designed for use with 7/8mm Grade 80 lifting chain. Its eye fitting allows quick and secure connection to chain assemblies, making it ideal for load restraint, chain shortening, and back-hooking to form a choker configuration. The reinforced saddle supports the chain link firmly, reducing wear and preventing slip-off, while the near-circular section delivers exceptional resistance to bending.
Unlike many hooks that reduce the working load limit of a chain, the supporting wings on this eye grab hook prevent chain link deformation, so there is no reduction in WLL when in use. Each hook is embossed with brand, WLL, batch number and size for full traceability.
- Made from high-grade alloy steel (quenched and tempered) to Grade 80 specification
- For use with Grade 80 alloy chain for lifting applications
- Reinforced saddle for firmer hook-up, less wear and reduced slip-off risk
- Supporting wings prevent chain link deformation, no reduction in working load limit
- Proof load tested to 2.5× WLL; ultimate load 4× WLL; marked with brand, WLL, batch number and size
Key features
- 01Grade 80 alloy steel
- 02Full WLL maintained
- 03Reinforced saddle
- 04Versatile use
- 05Fully traceable
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
How to use lifting chains
A short guide from the team on using it safely and getting the most from it. Turn on captions with CC to follow along without sound.
