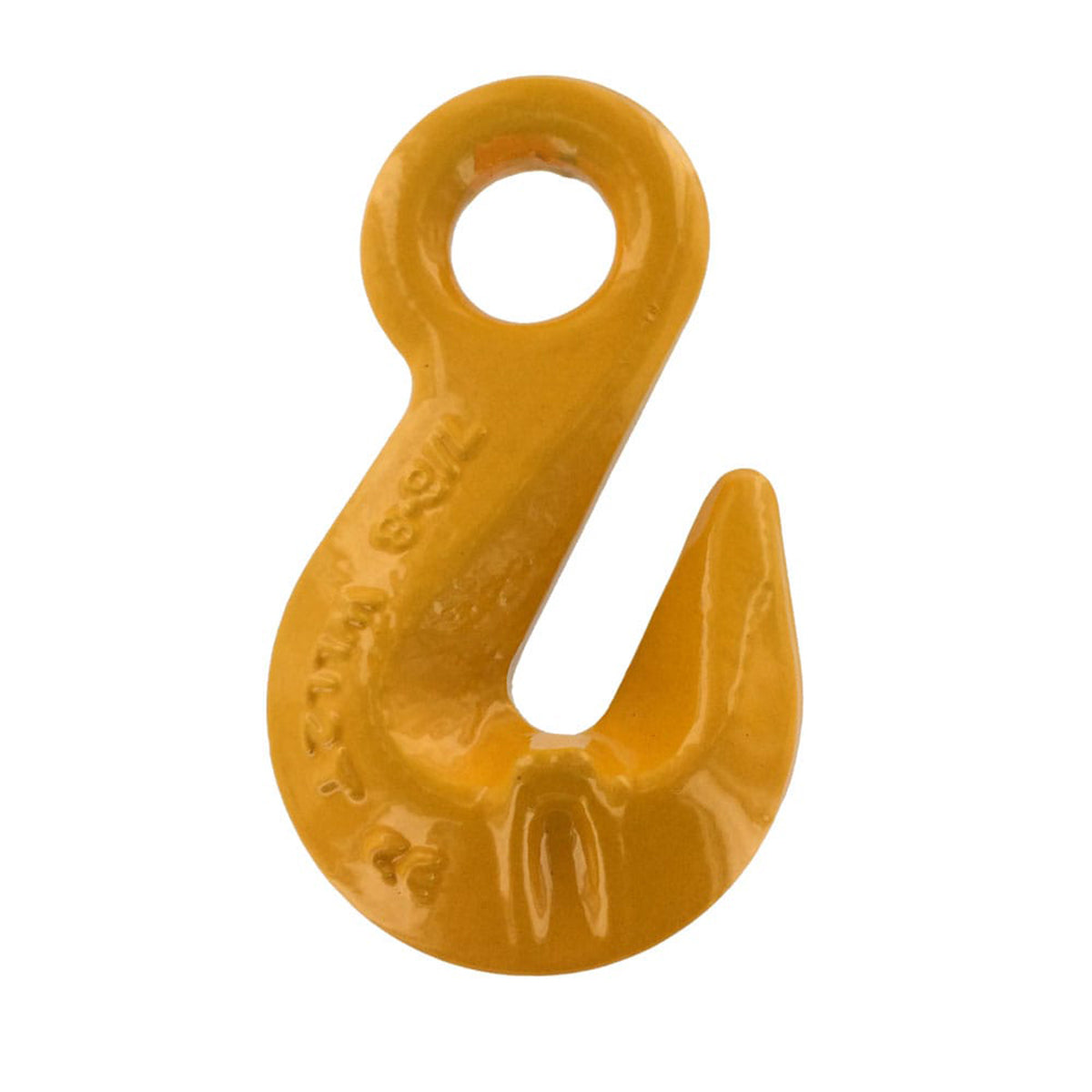

13mm Eye Grab Hook – Grade 80 Alloy Steel
A high-grade alloy steel eye grab hook for use with 13mm Grade 80 lifting chain. Features a reinforced saddle and supporting wings to prevent chain deformation and maintain full working load limit.
- Working load limit
- 5,300 kg
- Grade
- Grade 80
- Fittings
- Grab hook
- Material
- High-grade alloy steel, quenched and tempered
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
This 13mm alloy steel eye grab hook is engineered for use with Grade 80 chain in heavy-duty lifting applications. Commonly used in commercial shipping, heavy haulage, and rigging, it can be used to hook the chain leg back to form a choker or as a chain shortener.
The narrow gap opening ensures only the correct size of chain can be fitted, preventing slip-off and maintaining full load engagement. Unlike some hook designs, the supporting wings on this eye grab hook prevent deformation of the chain link, meaning there is no reduction in working load limit when in use.
The reinforced saddle distributes load evenly along the chain, reducing wear, while the near-circular cross-section provides excellent resistance to bending forces.
- Made from high-grade alloy steel, quenched and tempered to Grade 80 standard
- Working Load Limit: 5,300 kg (5.3 tonnes)
- Proof load tested to 2.5 times the WLL
- Ultimate load rated at 4 times working capacity (4:1 safety factor)
- Embossed with brand, WLL, batch number and size for full traceability
- Supporting wings prevent chain link deformation and maintain full WLL
- Reinforced saddle reduces chain wear during use
Key features
- 01Full WLL maintained
- 02Grade 80 alloy steel
- 03Proof load tested
- 04Reinforced saddle
- 05Traceability markings
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
