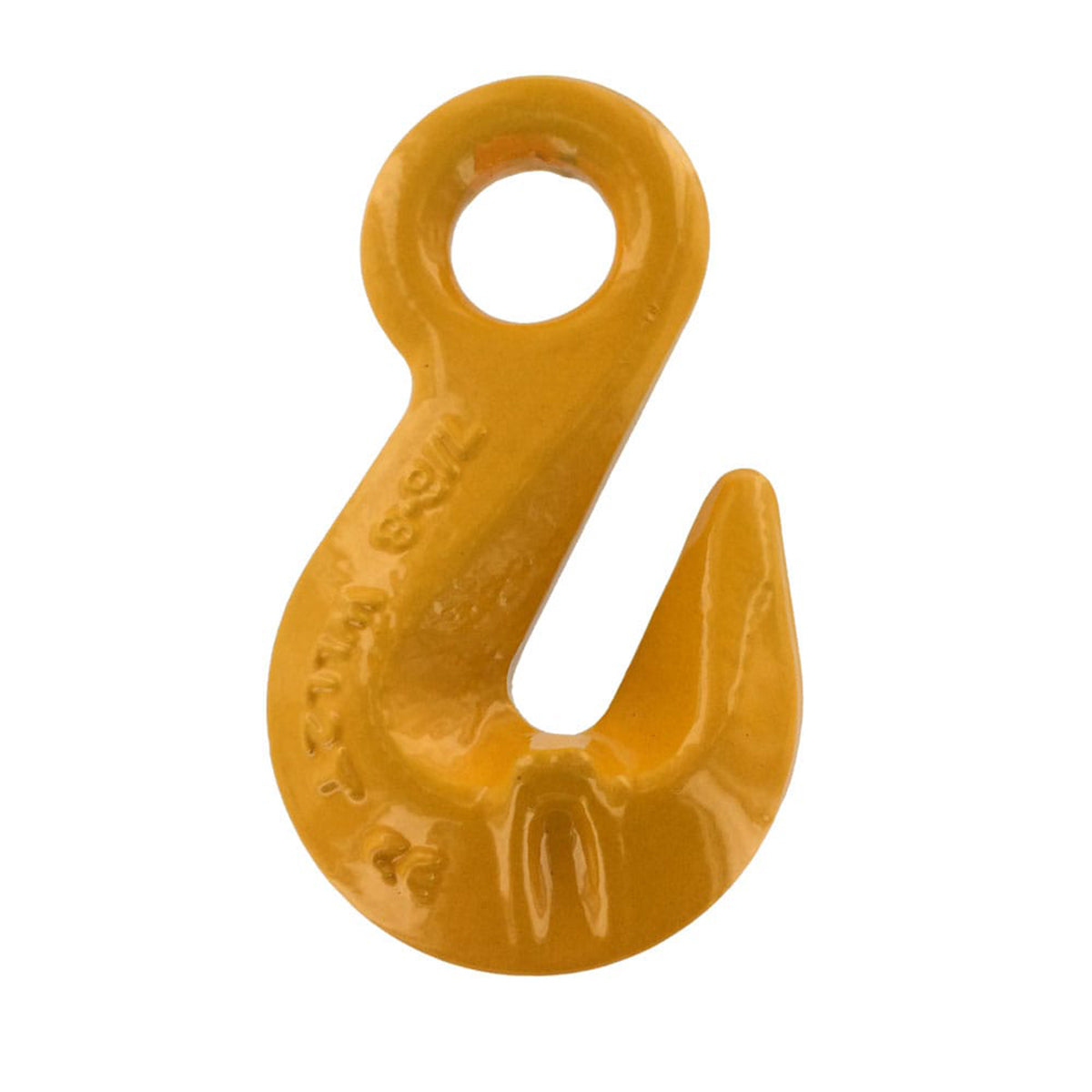

16mm Eye Grab Hook
A Grade 80 alloy steel eye grab hook with an 8,000 kg WLL, designed for use with 16 mm chain. Ideal for choker configurations, chain shortening, and heavy-lift applications.
- Working load limit
- 8,000 kg
- Grade
- Grade 80
- Fittings
- Grab hook
- Material
- High-grade alloy steel, quenched and tempered
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
The 16 mm Eye Grab Hook is a high-performance lifting component manufactured from quenched and tempered high-grade alloy steel. Designed specifically for use with Grade 80 alloy chain, it is the go-to choice for heavy haulage, commercial shipping, and industrial lifting operations.
Eye grab hooks are most commonly used to hook a chain leg back on itself to form a choker or to act as a chain shortener. The narrow opening ensures full engagement of the chain link, preventing slip-off and maximising load security.
Unlike many hooks that reduce the working load limit of the chain they are attached to, this eye grab hook features supporting wings that prevent chain link deformation, meaning there is no reduction in WLL when used correctly.
The reinforced saddle supports the chain under load, reducing wear and extending service life. The near-circular cross-section provides exceptional resistance to bending forces.
- Working Load Limit (WLL): 8,000 kg (8.0 t)
- For use with 16 mm Grade 80 alloy chain
- Made from quenched and tempered high-grade alloy steel
- Embossed with brand, WLL, batch number and size for full traceability
- Supporting wings prevent chain link deformation, no WLL reduction
- Reinforced saddle reduces chain wear
- Narrow gap prevents slip-off for secure hookups
If you have any questions about this product or need assistance selecting the right lifting component, please get in touch with our team.
Key features
- 018,000 kg (80 t) Working Load Limit
- 02For use
- 03High-grade alloy steel
- 04Reinforced saddle design reduces chain wear and
- 05Fully embossed with brand
Specification
