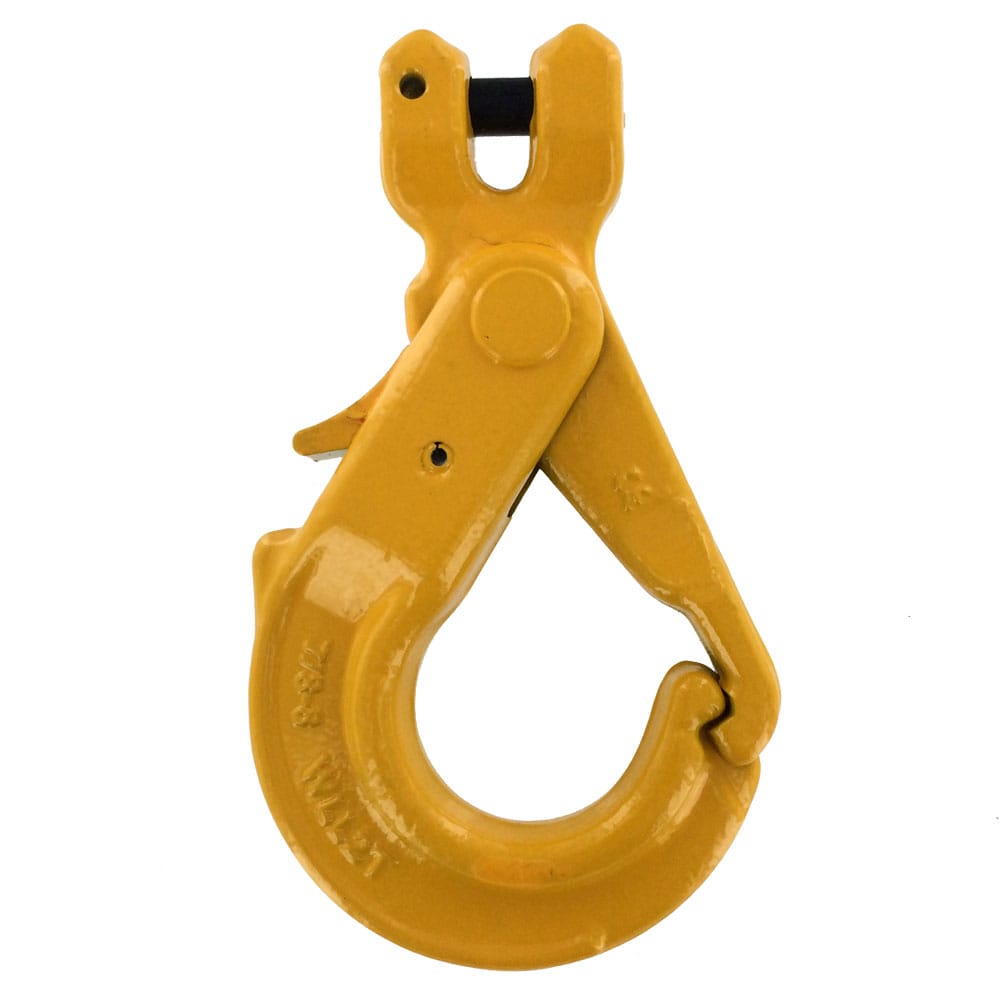

7/8mm Clevis Self Locking Safety Hook – Grade 80 Alloy Steel
A Grade 80 alloy steel clevis self-locking safety hook for overhead lifting applications. The automatic grip latch locks under load and releases instantly via a trigger, making hookups fast and secure.
- Working load limit
- 2,120 kg
- Min. breaking load
- 8,480 kg
- Grade
- Grade 80
- Material
- High-grade alloy steel, quenched and tempered
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

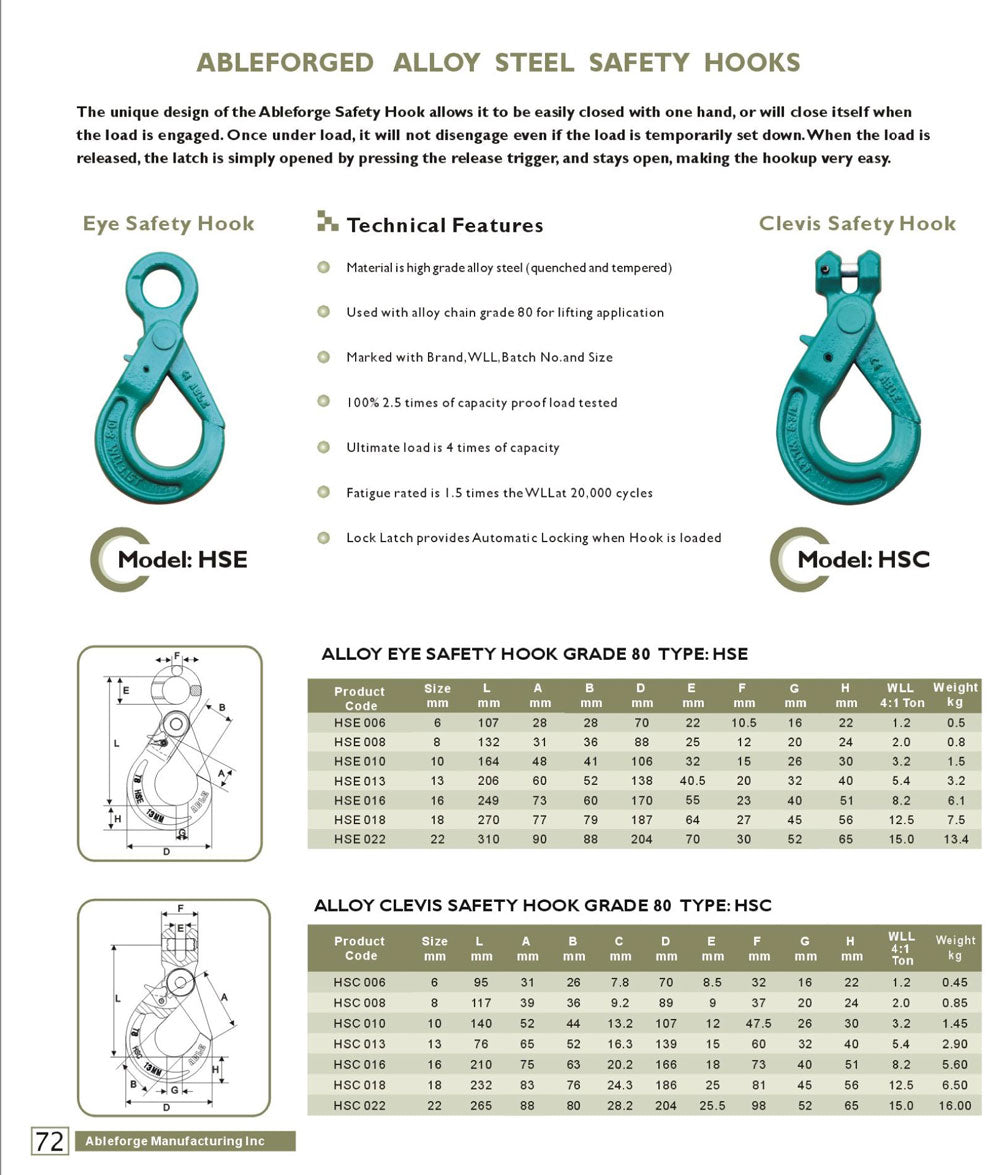

The Ableforge Grade 80 Clevis Self-Locking Safety Hook (Model HSC) is designed for safe, reliable overhead lifting when used with Grade 80 alloy chain. Its unique grip-latch mechanism closes automatically when a load is engaged and will not release under load, even if the load is momentarily set down, giving you complete peace of mind on site.
To release, simply press the trigger; the latch stays open so re-hooking is quick and effortless. The hook can also be closed with one hand, speeding up rigging operations in demanding environments.
- Made from high-grade alloy steel, quenched and tempered for maximum strength and durability
- For use with Grade 80 alloy chain in overhead lifting applications
- Automatic locking latch prevents accidental disengagement under load
- Proof load tested to 2.5× WLL; ultimate load rated at 4× working capacity
- Fatigue rated to 1.5× WLL at 20,000 cycles
- Marked with brand, WLL, batch number and size for full traceability
- Clevis fitting attaches directly to chain link for quick, secure connection
Working Load Limit: 2,120 kg (2.12 t)
Chain Size: 7/8 mm
Colour: Yellow
Key features
- 01Automatic safety latch
- 02Grade 80 alloy steel
- 032,120 kg working load limit
- 04One-hand operation
- 05Fully traceable
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
