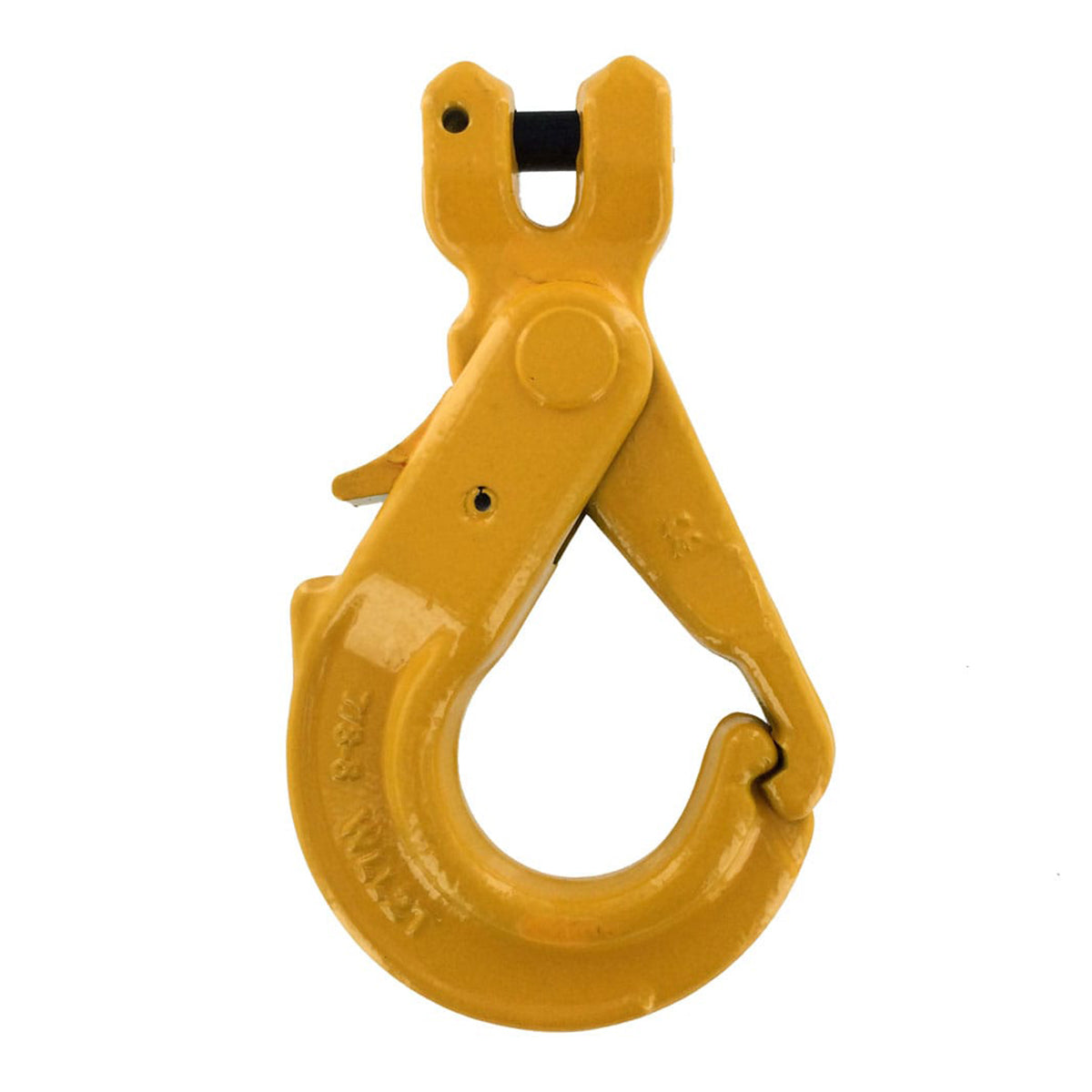

13mm Clevis Self Locking Hook + Grip Latch
Grade 80 alloy steel clevis self-locking safety hook for overhead lifting. The automatic grip latch locks under load and releases instantly via a trigger, making safe hookups fast and reliable.
- Working load limit
- 5,300 kg
- Min. breaking load
- 21,200 kg
- Grade
- Grade 80
- Material
- High-grade alloy steel, quenched and tempered
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
The 13mm Clevis Self-Locking Safety Hook is designed for overhead lifting applications using Grade 80 alloy chain. Its unique grip-latch mechanism closes automatically when a load is engaged and will not release under load, even if the load is momentarily set down. To release, simply press the trigger; the latch stays open to make re-hooking quick and easy.
Manufactured from high-grade alloy steel (quenched and tempered) to Grade 80 standard, this hook is marked with the brand, WLL, batch number and size for full traceability. The clevis fitting connects directly onto the chain link for a secure, low-profile connection.
- Made from high-grade alloy steel, Grade 80, quenched and tempered
- For use with Grade 80 alloy chain in overhead lifting applications
- Automatic locking latch closes under load; will not open until trigger is pressed
- Proof load tested to 2.5× WLL; ultimate load rated at 4× WLL
- Marked with brand, WLL, batch number and size for full traceability
- Fatigue rated to 1.5× WLL at 20,000 cycles
Key features
- 01Automatic safety latch
- 02Grade 80 alloy steel
- 03Proof load tested
- 04Easy one-hand operation
- 05Traceable marking

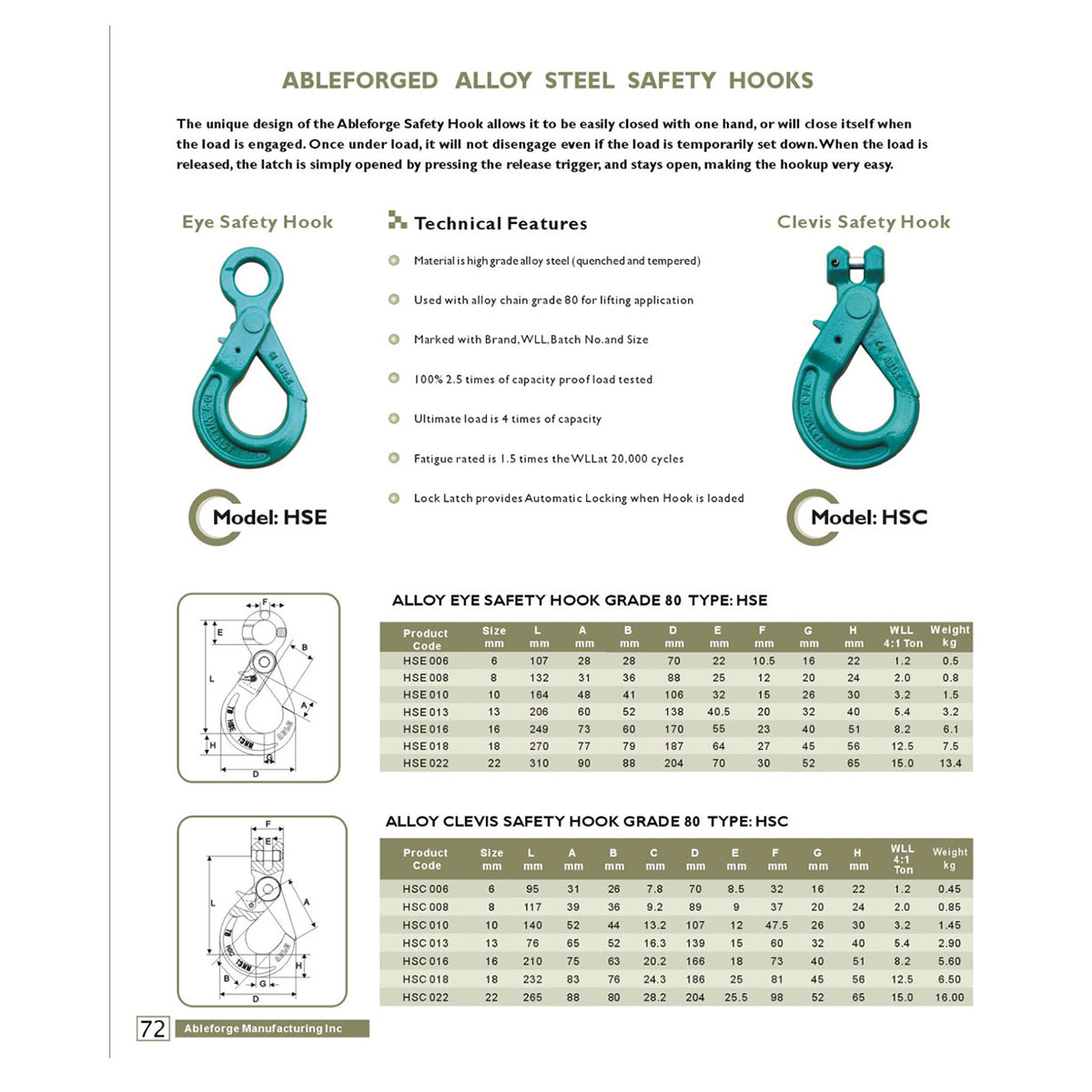

Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
How to use lifting chains
A short guide from the team on using it safely and getting the most from it. Turn on captions with CC to follow along without sound.
