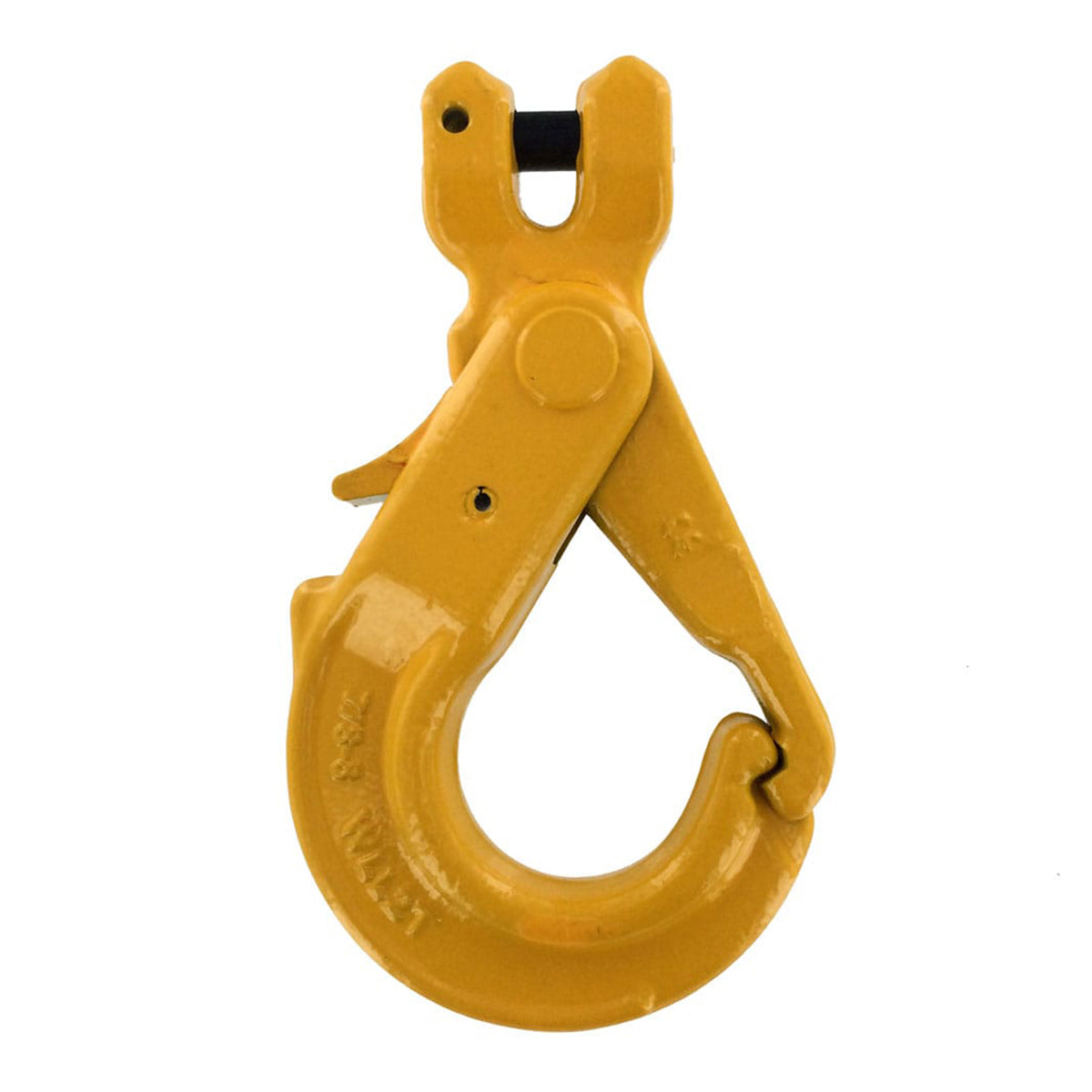

16mm Clevis Self Locking Safety Hook – Grade 80
A 16mm Grade 80 alloy steel clevis self-locking safety hook with automatic grip latch, rated to 8,000 kg WLL. Ideal for overhead lifting with Grade 80 chain.
- Working load limit
- 8,000 kg
- Min. breaking load
- 32,000 kg
- Grade
- Grade 80
- Fittings
- Self-locking hook
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

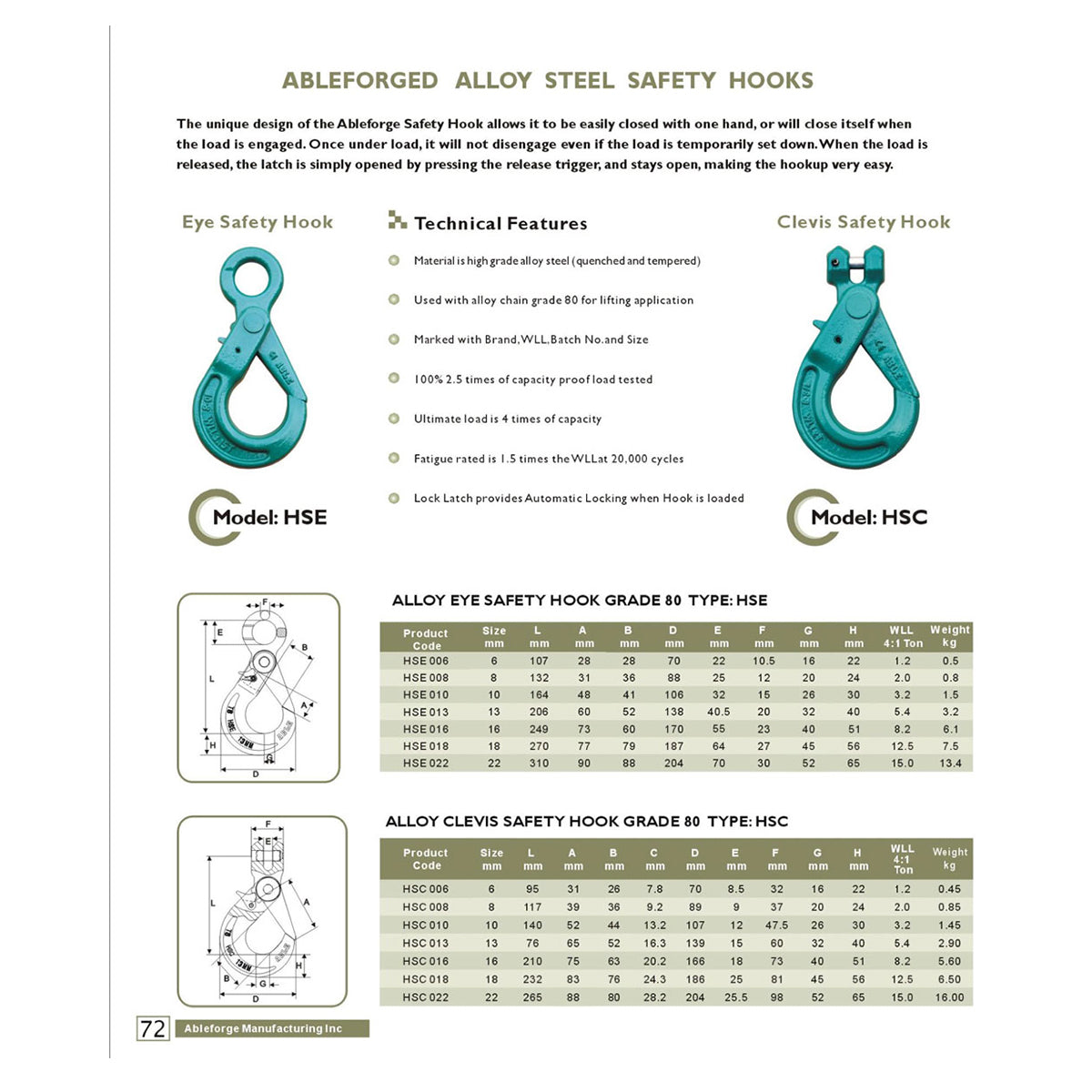

The Ableforge 16mm Clevis Self-Locking Safety Hook (Model HSC016) is a high-grade alloy steel lifting hook designed for use with Grade 80 alloy chain in overhead lifting applications. Its unique grip latch mechanism closes automatically when a load is engaged and will not open under load, even if the load is momentarily set down, preventing accidental disengagement and keeping your lift secure at all times.
To release the load, simply press the release trigger. The latch then stays open, making re-hooking quick and effortless with one hand. The clevis fitting connects directly onto chain links, simplifying rigging and reducing assembly time on site.
Every hook is proof load tested to 2.5 times the Working Load Limit and carries an ultimate load rating of 4 times capacity, giving you complete confidence in the integrity of your lifting equipment.
- Made from high-grade alloy steel (quenched and tempered), Grade 80
- For use with Grade 80 alloy chain for lifting applications
- Automatic locking latch closes under load; will not open until release trigger is pressed
- Proof load tested to 2.5× WLL; ultimate load rating 4× capacity
- Marked with brand, WLL, batch number and size for full traceability
- Fatigue rated to 1.5× WLL at 20,000 cycles
- Clevis fitting connects directly onto chain for fast, simple rigging
Key features
- 01Automatic self-locking
- 02Grade 80 alloy steel
- 038,000 kg working load limit
- 04Clevis fitting
- 05Easy one-hand operation
Specification
