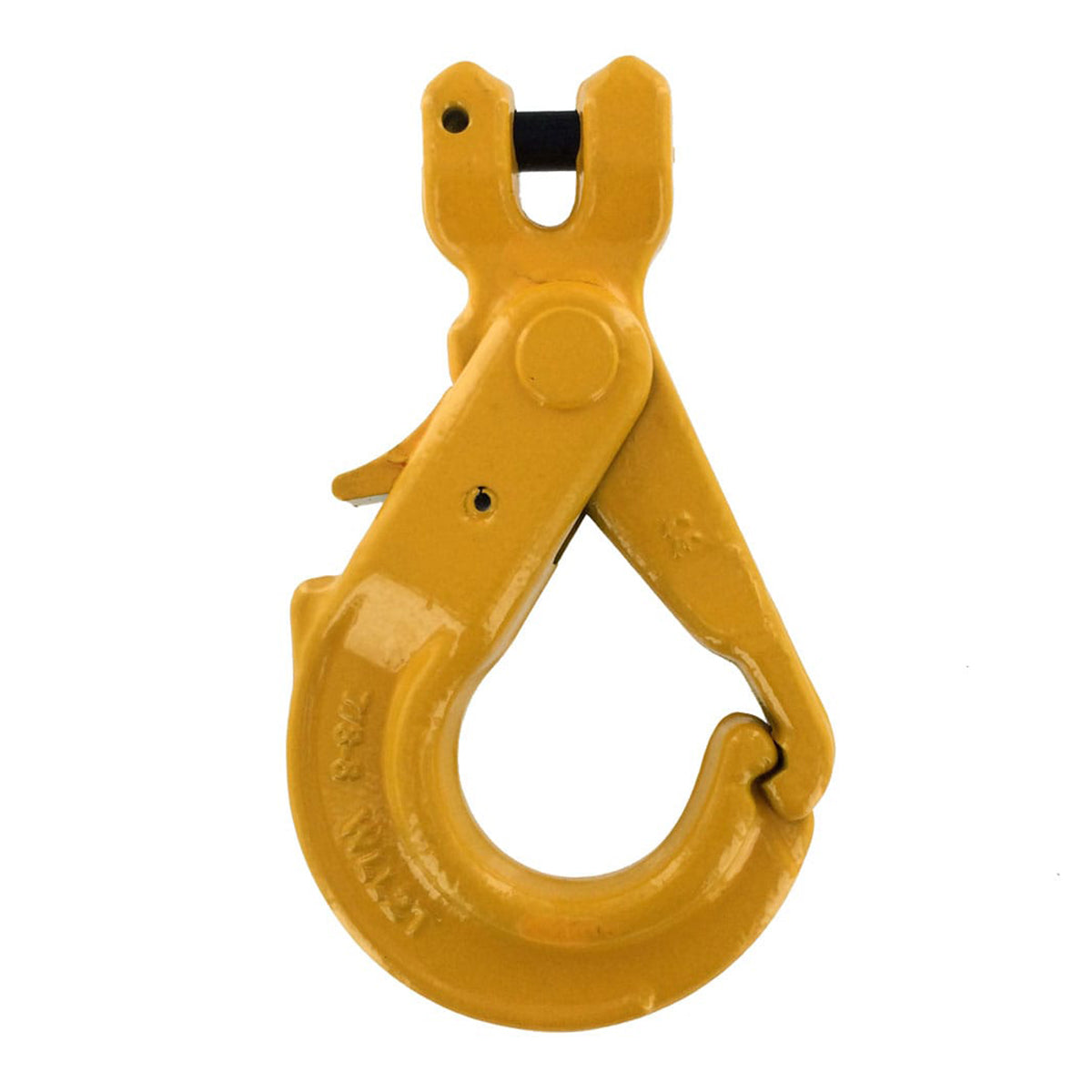

10mm Clevis Self Locking Hook + Grip Latch
A Grade 80 alloy steel clevis self locking hook with grip latch for 10mm chain, rated to 3,100 kg WLL. Ideal for safe, reliable overhead lifting applications.
- Working load limit
- 3,100 kg
- Min. breaking load
- 12,400 kg
- Grade
- Grade 80
- Material
- High-grade alloy steel, quenched and tempered
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
The 10mm Clevis Self Locking Hook is a high-performance lifting component designed for use with Grade 80 alloy chain in overhead lifting applications. Its unique grip latch locking mechanism prevents accidental load release, giving operators confidence at every lift.
The hook connects directly to the chain via its clevis fitting for a fast, secure attachment. The self-locking latch closes automatically when a load is engaged, or can be closed with one hand, and crucially, it will not open under load, even if the load is momentarily set down. To release the load, simply press the trigger release. The hook can also be held in the open position to make hookups quick and straightforward.
- Made from high-grade alloy steel, Grade 80 (Quenched and Tempered)
- For use with Grade 80 alloy chain for lifting applications
- Marked with brand, WLL, batch number and size for full traceability
- Proof load tested to 2.5× WLL; ultimate load capacity is 4× WLL
- Compliant with EN 1677
Working Load Limit: 3,100 kg | Chain Size: 10mm | Colour: Yellow
Key features
- 01Secure self-locking latch
- 02Grade 80 alloy steel
- 033,100 kg working load limit
- 04Proof load tested
- 05EN 1677 compliant
