500kg Plain Trolley
A 1-tonne-capacity plain girder trolley by Able (model PT-II05) that runs along the bottom flange of an I-beam or monorail, ideal for manually moving heavy loads in factories, warehouses, docks and engine rooms without a power supply.
- Working load limit
- 0.5 kg
- Material
- Steel
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

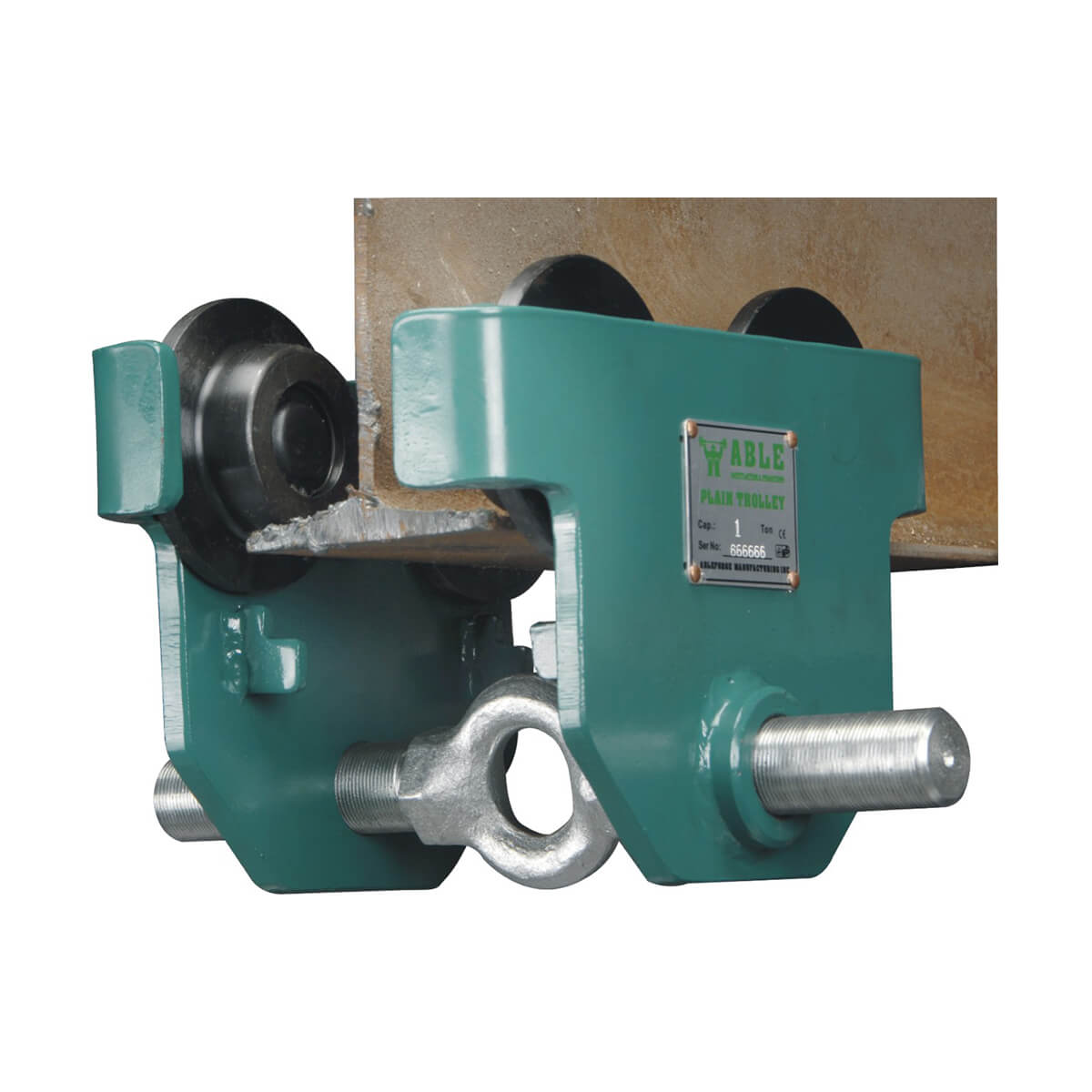

Able 500kg Plain Girder Trolley (Model PT-II05)
The Able PT-II05 is a heavy-duty plain girder trolley designed to transport heavy and awkward loads along the bottom flange of an I-beam or monorail. Once the load has been lifted, simply push it to move the trolley along the beam, no power supply required. A screw hanger allows quick, tool-free adjustment to suit a wide range of I-beam flange widths, making this trolley highly versatile across different installations.
Built to close-headroom proportions and finished in a durable green enamel, the PT-II05 is widely used in factories, mines, wharves, docks, warehouses and engine rooms. It is individually proof-load tested and conforms to EN 13157:2010.

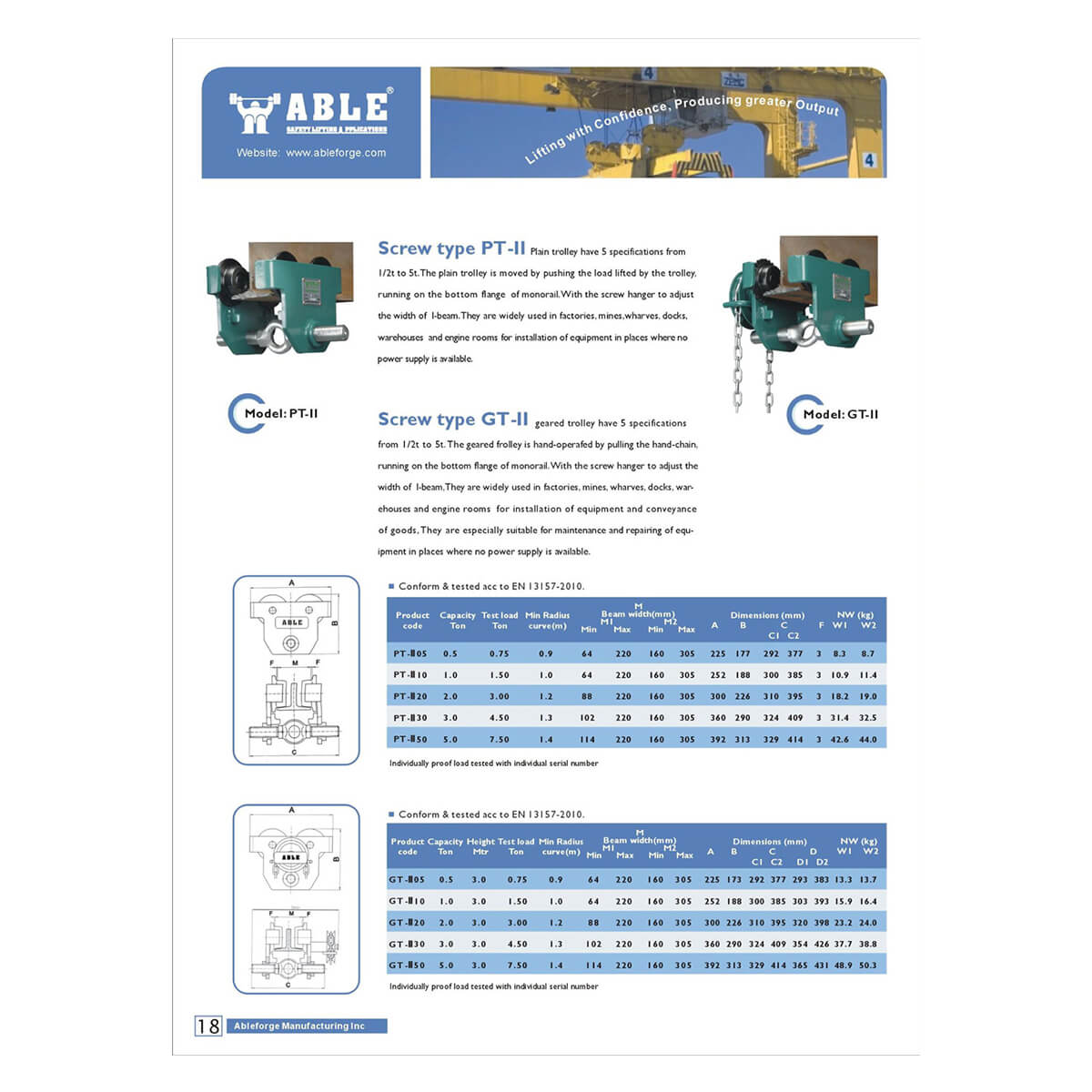

Key Technical Data
- Capacity: 0.5 t (500 kg)
- Test load: 0.75 t
- Minimum radius of curve: 0.9 m
- Beam width (M1 Min): 64 mm
- Beam width (M1 Max): 220 mm
- Beam width (M2 Min): 160 mm / (M2 Max): 305 mm
- Dimension A: 225 mm | B: 177 mm | C1: 292 mm | C2: 377 mm | F: 3 mm
- Net weight: W1 8.3 kg / W2 8.7 kg
Features
- Heavy-duty steel construction with premium quality components
- Close-headroom design to maximise lifting height
- Screw hanger for easy beam-width adjustment, no power needed
- Individually proof-load tested with unique serial number
- Conforms and tested to EN 13157:2010
- Suitable for factories, mines, docks, warehouses and engine rooms
Key features
- 01Manual operation
- 02500 kg rated capacity
- 03Adjustable beam width
- 04Close-headroom design
- 05Heavy-duty steel build
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
