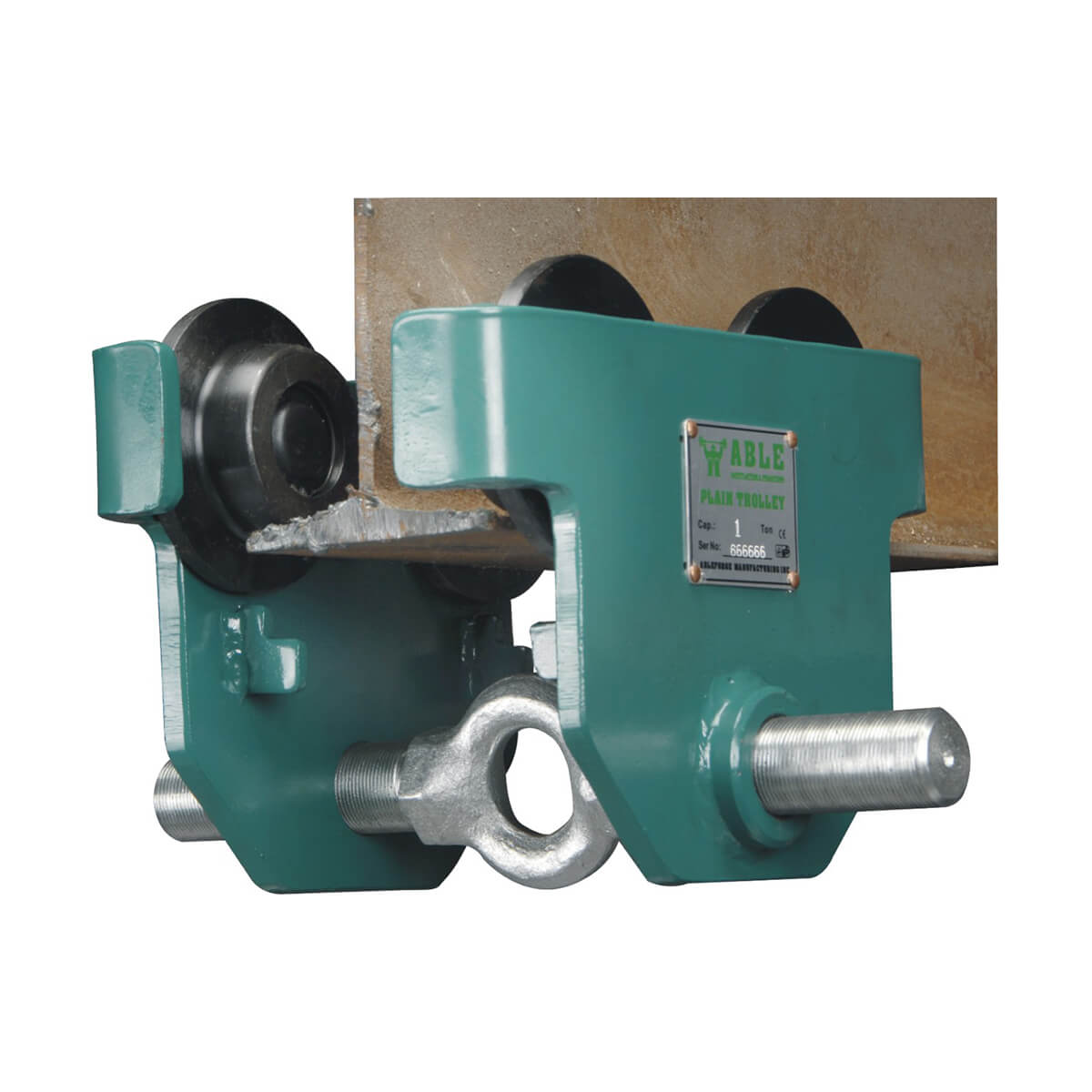

1000kg Plain Trolley
A 1-tonne capacity plain beam trolley by Able, designed to run along the bottom flange of an I-beam or monorail. Manually operated by pushing the load, with a screw hanger to adjust beam width.
- Working load limit
- 1 kg
- Material
- Steel
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

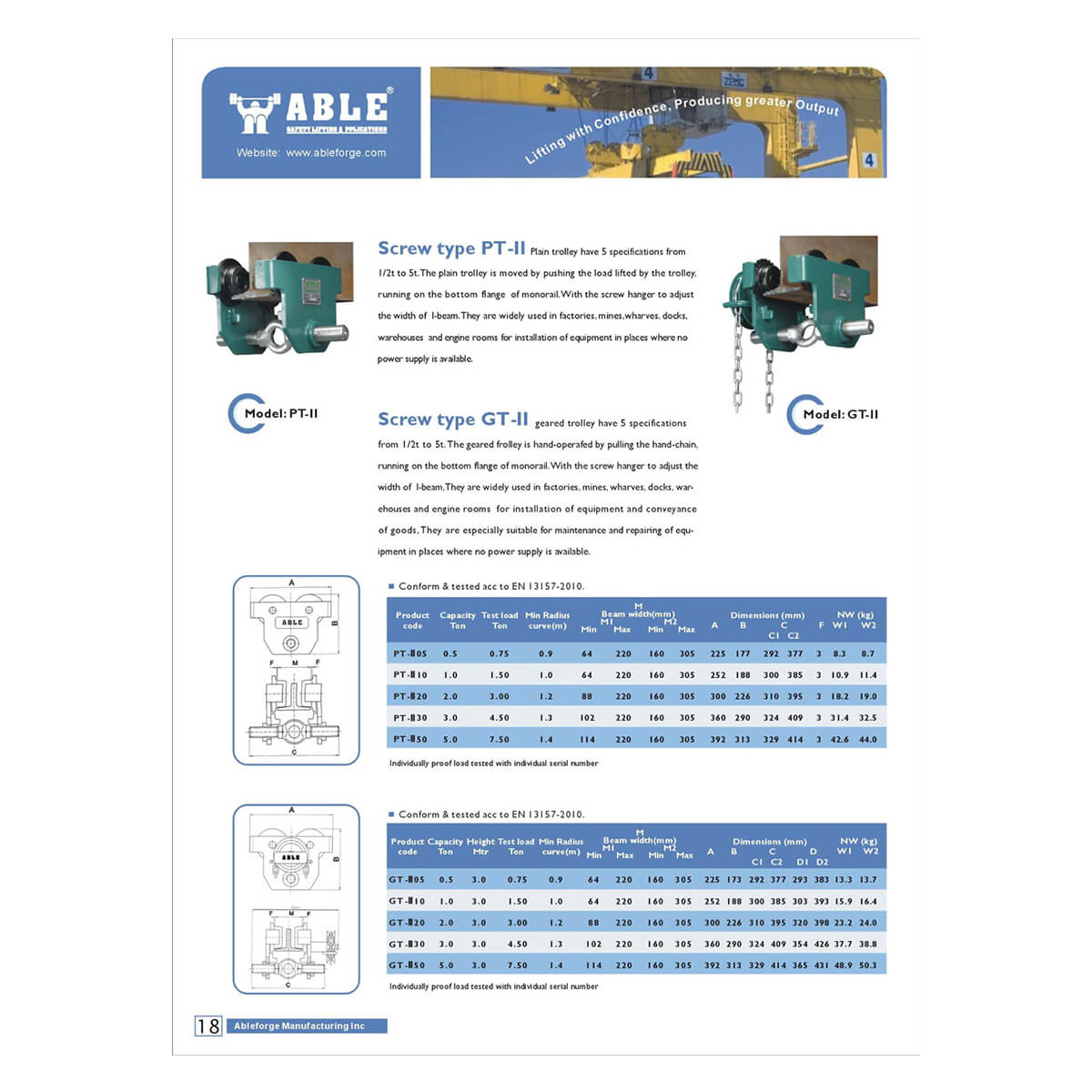

Able Plain Trolley, 1 Tonne Capacity (Model PT-II10)
The Able PT-II10 is a heavy-duty plain girder trolley rated at 1,000 kg (1.0 tonne), designed to travel along the bottom flange of an I-beam or monorail. Movement is achieved simply by pushing the suspended load, no power supply is required, making it ideal for locations where electrical infrastructure is unavailable or impractical.
The integrated screw hanger allows the beam width to be adjusted to suit a wide range of I-beam profiles, from 64 mm up to 220 mm, giving excellent versatility across different installations. Each unit is individually proof load tested and carries its own unique serial number for full traceability.
Widely used in factories, mines, wharves, docks, warehouses and engine rooms, this trolley provides a cost-effective and reliable solution for the horizontal movement of heavy or awkward loads.
- Capacity: 1.0 tonne (1,000 kg)
- Test load: 1.50 tonne
- Minimum curve radius: 1.0 m
- Beam width range: 64 mm (min), 220 mm (max)
- Conforms and tested to EN 13157-2010
- Individually proof load tested with individual serial number
Key features
- 011,000 kg rated capacity
- 02NO power required
- 03Adjustable beam width
- 04Conforms to EN 13157-2010
- 05Heavy-duty build
Specification
