3000kg Plain Trolley
A 1-tonne capacity plain beam trolley by Able (model PT-II10), designed to run along the bottom flange of a monorail or I-beam. Manually operated by pushing the load, with a screw hanger for adjustable beam width.
- Working load limit
- 3,000 kg
- Material
- Steel
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

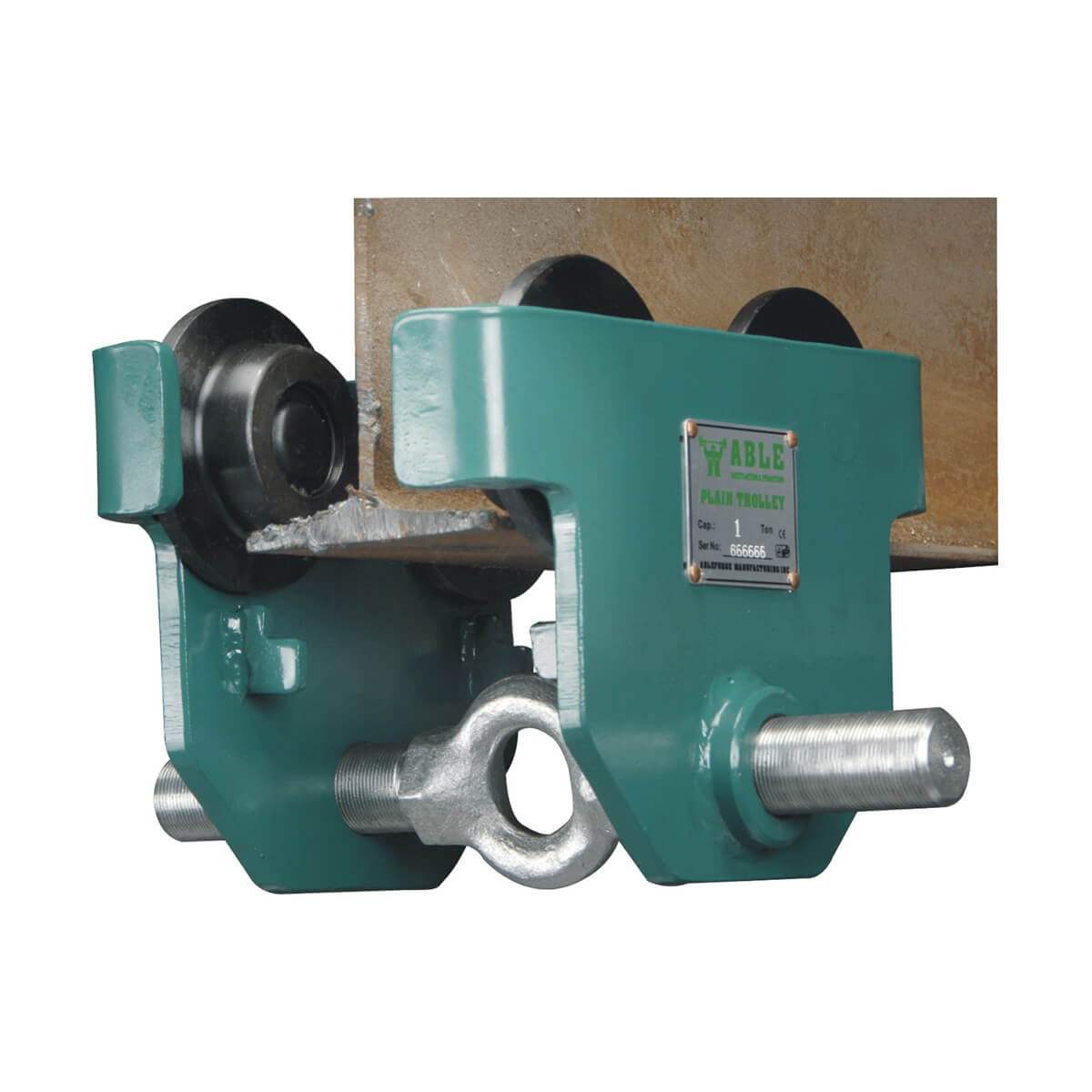

Able 3-Tonne Plain Girder Trolley, Model PT-II30
This heavy-duty plain trolley from Able (Ableforge Manufacturing Inc.) is designed to move suspended loads horizontally along the bottom flange of a monorail or I-beam, without requiring any power supply. The load is transported simply by pushing it, making this an ideal solution for factories, mines, wharves, docks, warehouses, and engine rooms where electrical power is unavailable or impractical.
The screw-type hanger allows straightforward adjustment of the trolley width to suit a range of I-beam flange widths, ensuring compatibility across a variety of installations. Each unit is individually proof load tested and assigned a unique serial number for full traceability.
Conforming and tested to EN 13157-2010, this trolley offers reliable, certified performance for demanding industrial environments.
- Capacity: 3.0 tonne (3,000 kg)
- Test load: 4.50 tonne
- Minimum curve radius: 1.3 m
- Beam width range: 102 mm (min), 220 mm (max)

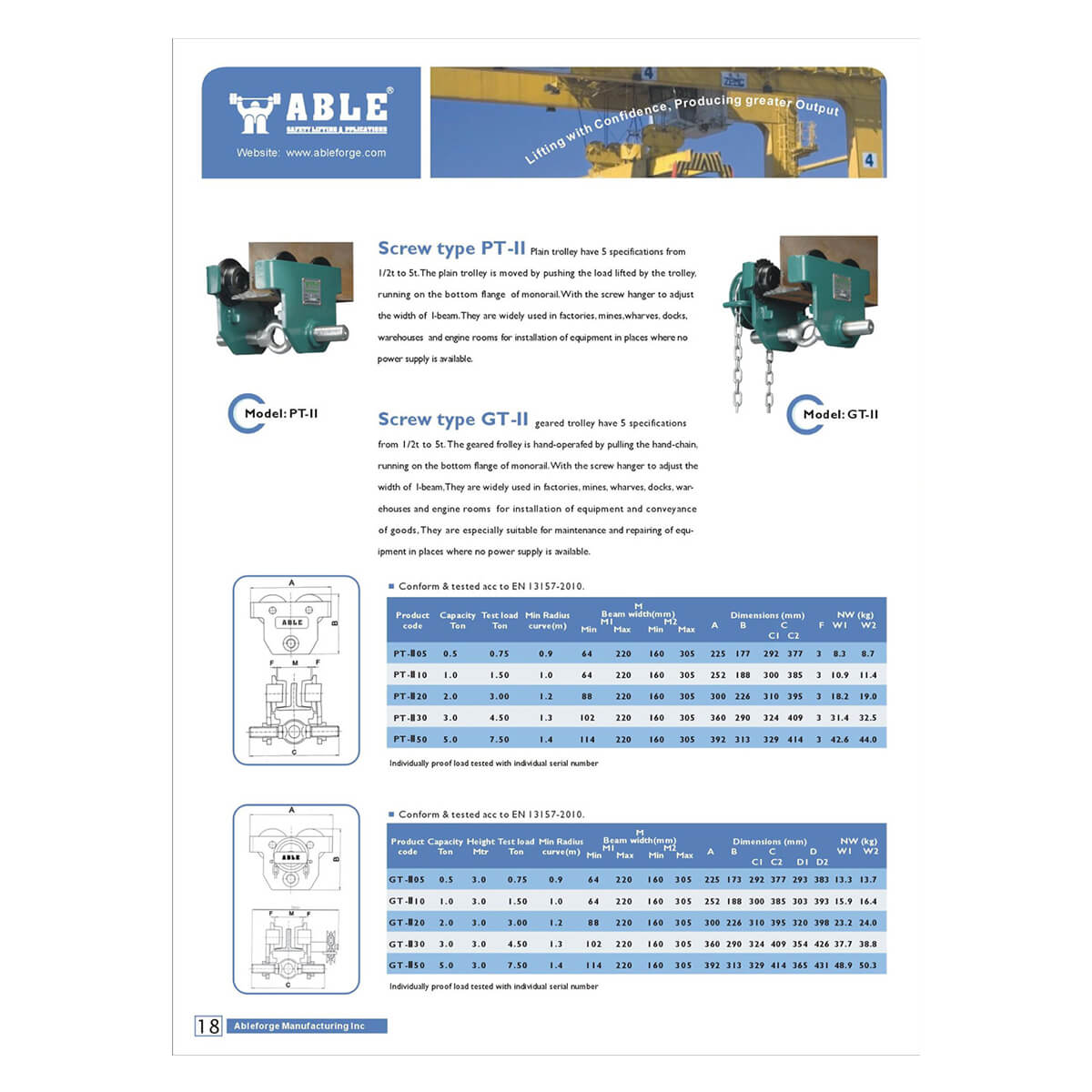

- Dimensions (mm): A: 360, B: 290, C1: 324, C2: 409, F: 3, NW W1: 31.4 kg, NW W2: 32.5 kg
- Standard: Conforms and tested to EN 13157-2010
- Individual proof load tested with unique serial number
Key features
- 013-tonne capacity
- 02Adjustable beam fit
- 03NO power needed
- 04Certified & compliant
- 05Heavy-duty build
