5000kg Plain Trolley – Able PT-II Plain Girder Trolley
A 5-tonne capacity plain girder trolley by Able (model PT-II50) that runs along the bottom flange of an I-beam or monorail, pushed manually with no power supply required. Screw hanger adjusts to suit different beam widths.
- Working load limit
- 5,000 kg
- Material
- Steel
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

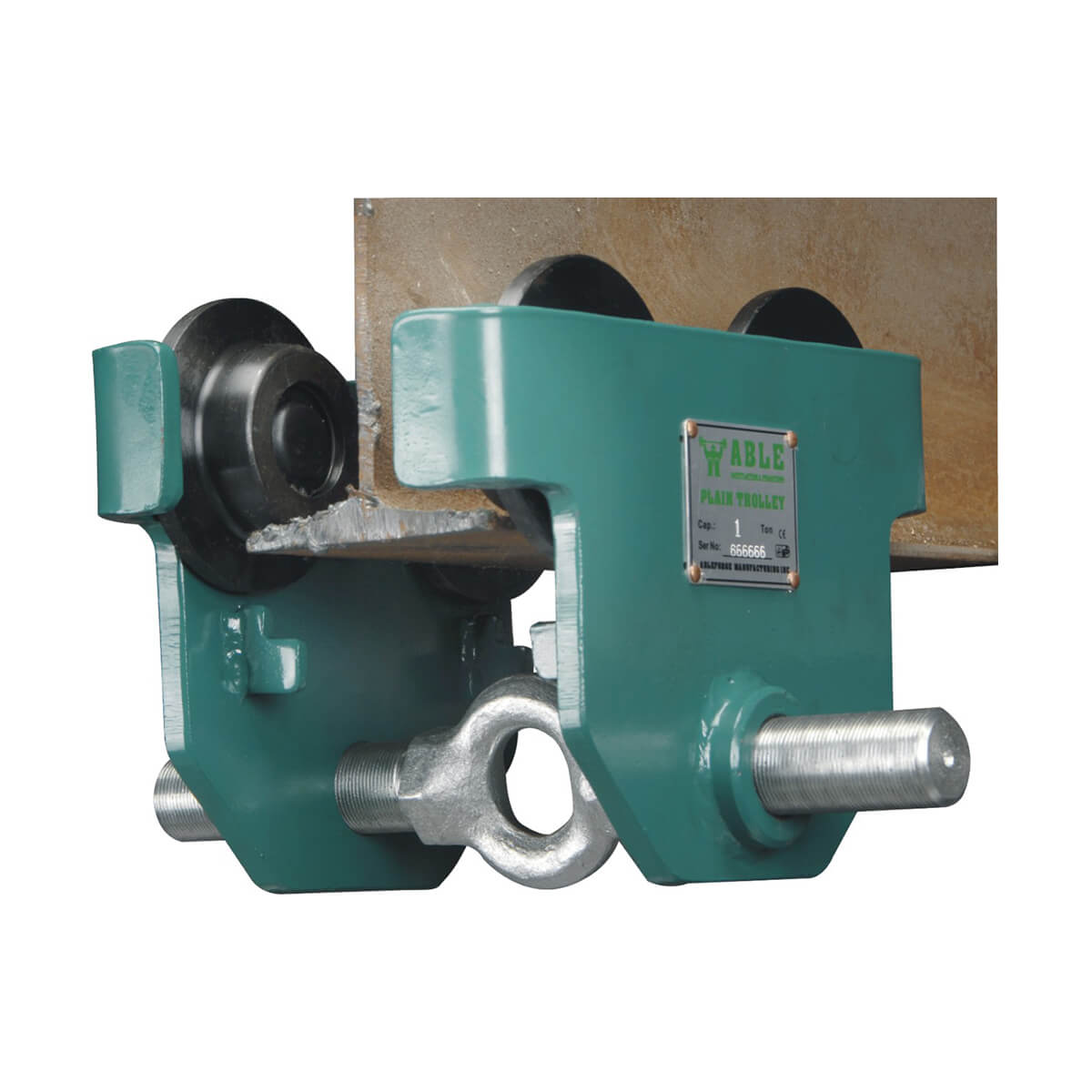

Able PT-II50 Plain Girder Trolley, 5000 kg Capacity
The Able PT-II50 is a heavy-duty plain (push) girder trolley designed to transport loads of up to 5 tonnes along the bottom flange of an I-beam or monorail. Once the load is lifted, simply push it to move the trolley along the beam, no electricity or power supply is required, making it ideal for locations where power is unavailable or impractical.
The screw hanger mechanism allows the beam width to be adjusted easily on site to suit a range of I-beam sizes, with a minimum beam width of 114 mm and a maximum of 220 mm. The trolley is manufactured by Ableforge Manufacturing Inc and conforms to and is tested to EN 13157-2010, with each unit individually proof load tested and assigned its own serial number.
Suitable for a wide range of industrial environments including factories, mines, wharves, docks, warehouses, and engine rooms, anywhere that reliable manual load movement is needed.
- 5000 kg (5-tonne) working load limit, test load 7.5 tonnes
- Screw hanger for adjustable beam width: 114 mm, 220 mm
- Minimum curve radius: 1.4 m
- Conforms and tested to EN 13157-2010; individually proof load tested with serial number
- Heavy-duty close-headroom construction finished in green
- No power supply required, load is moved by manual pushing
Key features
- 015000 kg working load limit
- 02Adjustable beam width
- 03NO power required
- 04EN 13157-2010 compliant
- 05Robust industrial build
