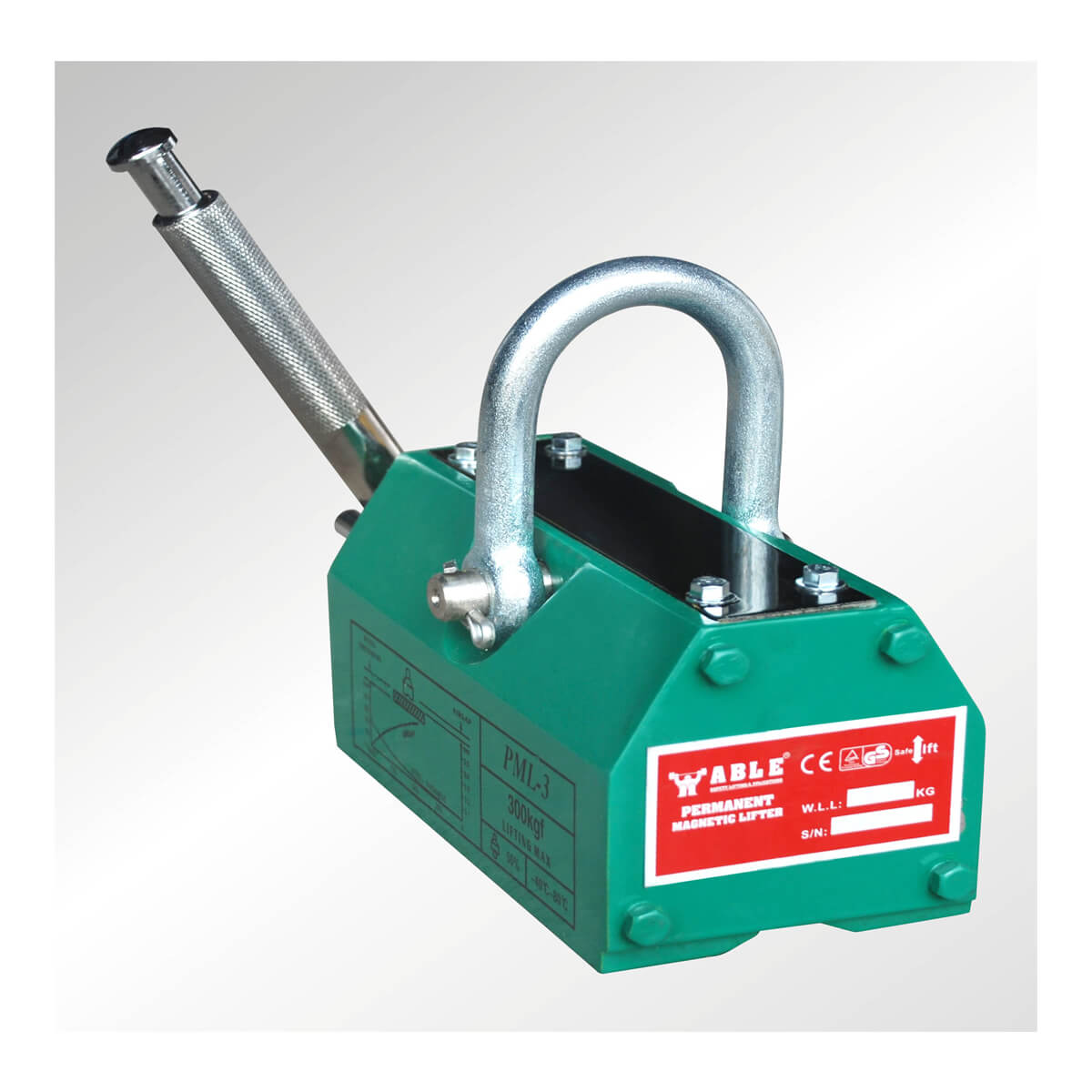

300kg Permanent Magnetic Lifter – ABLE PML-3

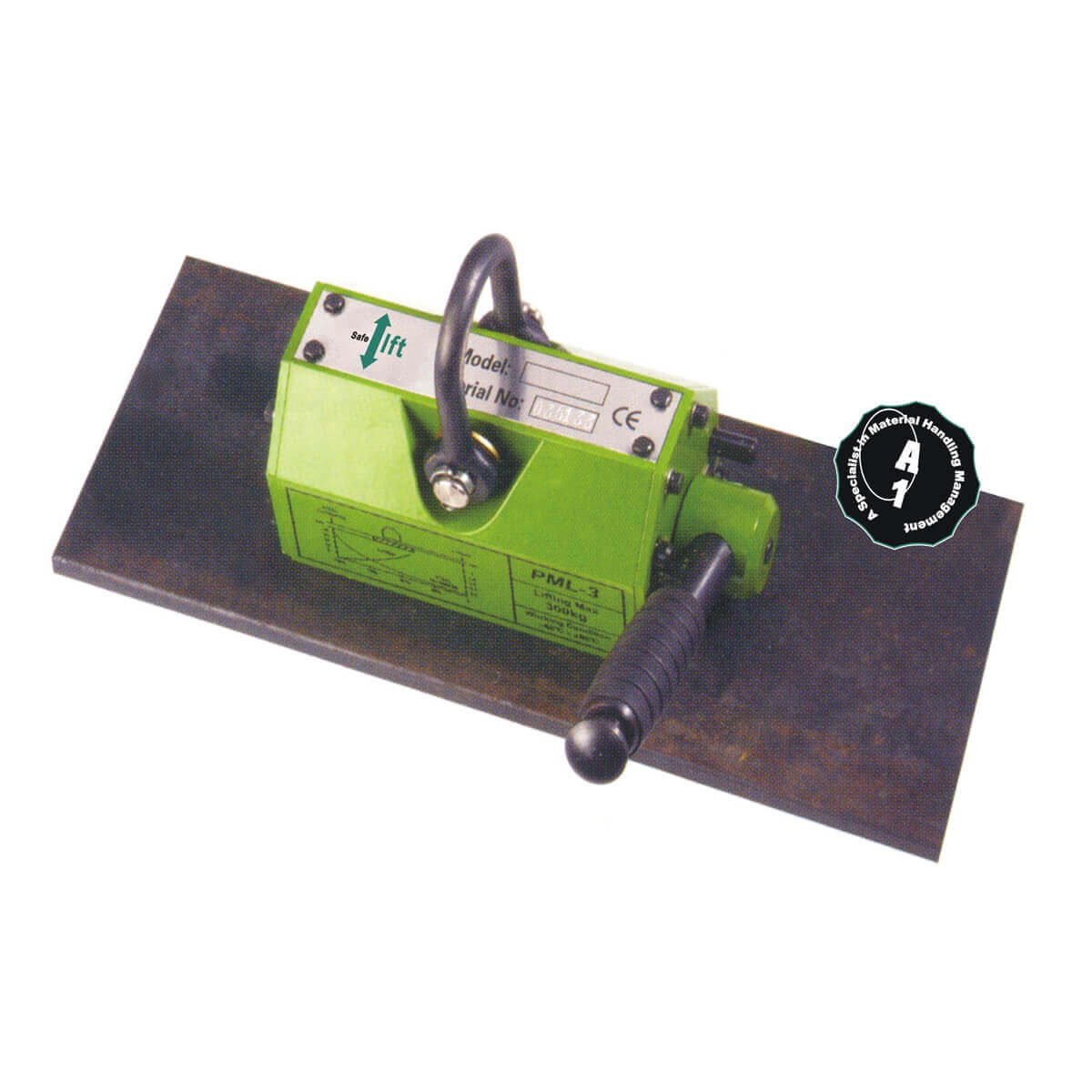

The ABLE PML-3 Permanent Magnetic Lifter provides a reliable, no-power solution for lifting and transporting ferromagnetic materials including steel plate, engine parts, semi-manufactured goods and moulds. By harnessing permanent magnet technology, it eliminates the need for slings, clamps or other holding devices, protecting the surface of your workpiece throughout the lift.

Rated at 300 kg lifting capacity on flat surfaces (100 kg on round stock), the PML-3 is operated by a single knurled lever with an integrated safety button, making one-handed engagement and release fast and intuitive. Once switched off, residual magnetism falls to less than 1%, ensuring safe and positive release every time.

Built to perform across a wide operating temperature range of -40 °C to +80 °C, the PML-3 is equally at home in fabrication workshops, steel stockholders, engineering facilities and heavy manufacturing environments.

• Flat (plate) lifting capacity: 300 kg
• Round stock lifting capacity: 100 kg
• Proof load: 900 kg
• Highest pulling force is 3.0× the rated lifting capacity
• No electricity required, less than 1% residual magnetism after release
• One-handed operation via lever switch with integrated safety button
• Operating temperature: -40 °C to +80 °C
• CE marked; Safe-Lift certified
• Body dimensions (A × B × C × D): 192 mm × 95 mm × 255 mm × 250 mm
• Unit weight: 10 kg

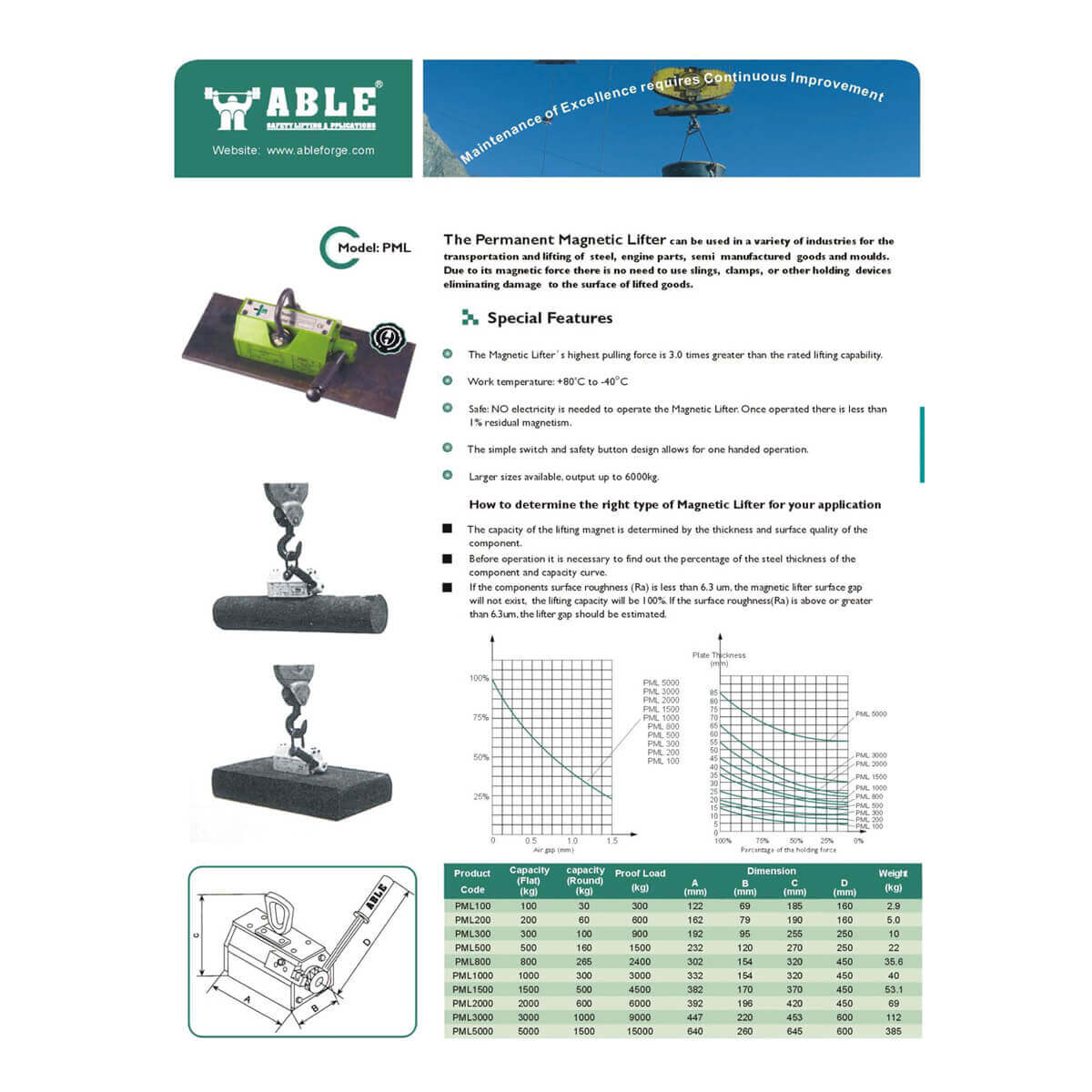

Larger capacity models available in the ABLE PML range, from 100 kg up to 5,000 kg output.
