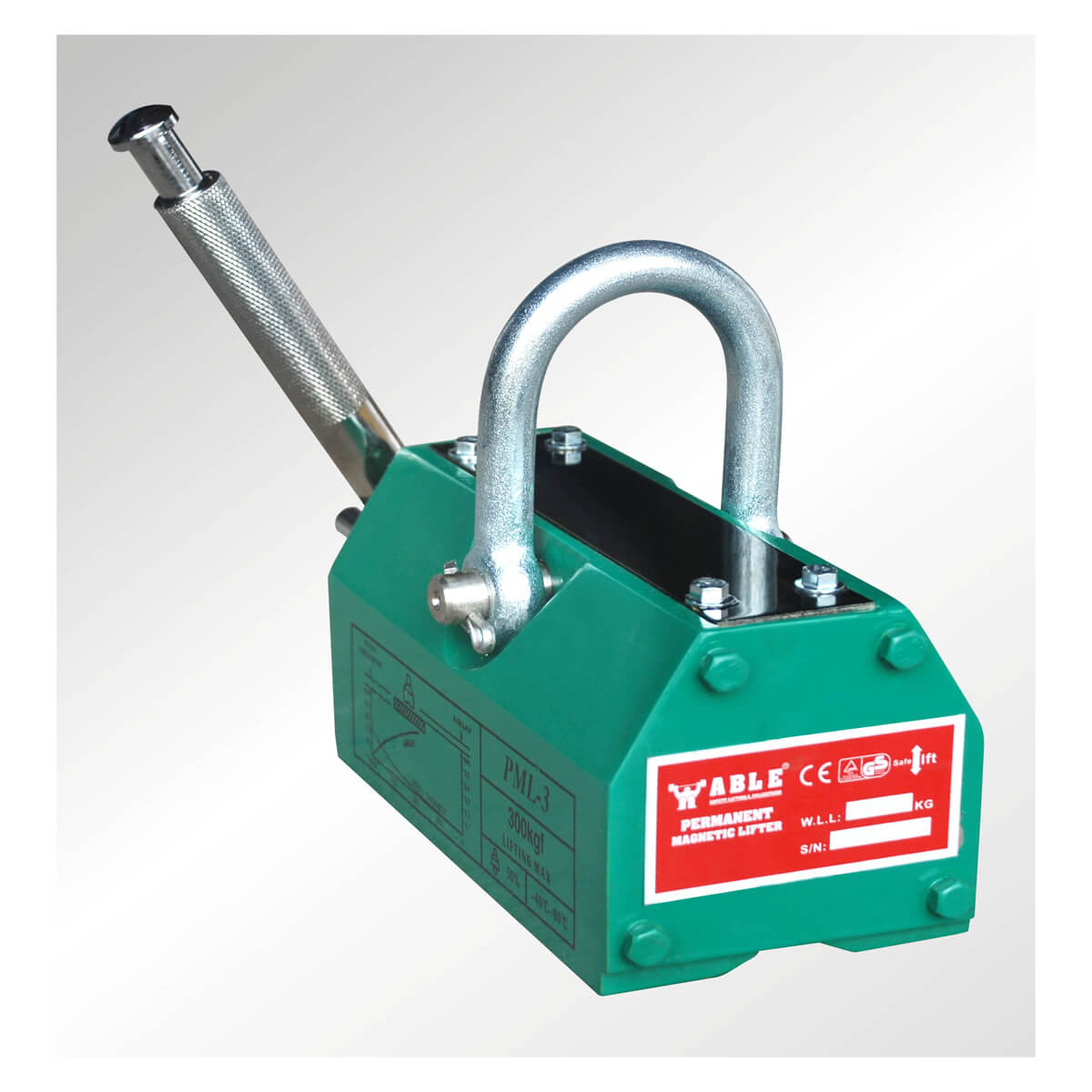

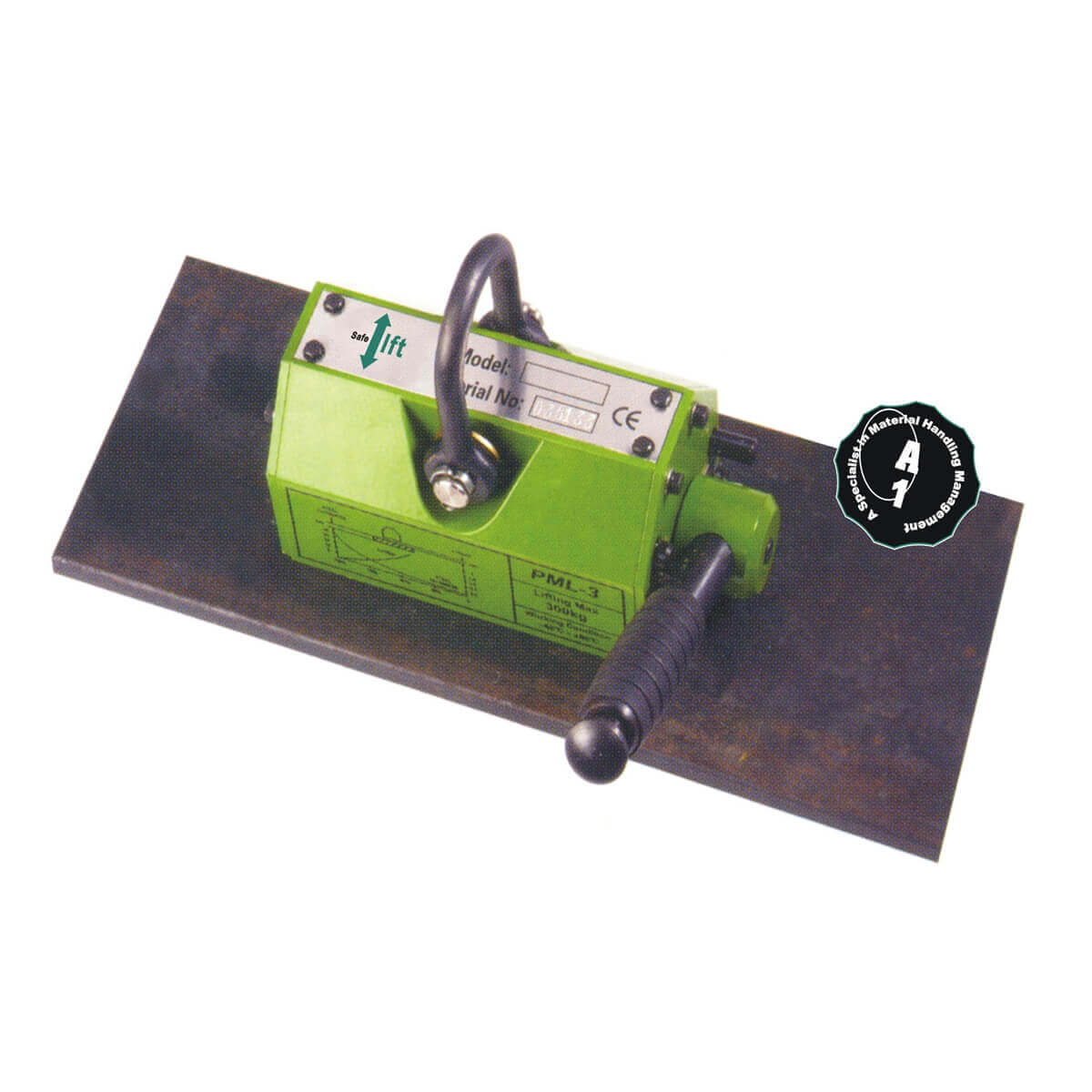

2000 kg Permanent Magnetic Lifter – ABLE PML-2000

The ABLE PML-2000 Permanent Magnetic Lifter provides a reliable, no-power solution for lifting and transporting steel plates, engine parts, semi-manufactured goods and moulds across a wide range of industrial environments. Simply rotate the handle to engage or release the powerful permanent magnet, no electricity, no slings, and no risk of surface damage to your workpiece.

With a rated lifting capacity of 2000 kg on flat surfaces and 600 kg on round stock, and a proof load of 6000 kg, the PML-2000 is engineered for heavy-duty production and fabrication environments. The highest pulling force is 3.0 times greater than the rated lifting capability, providing a substantial safety margin.

Once released, residual magnetism falls to less than 1%, ensuring safe and clean release of lifted goods every time.

• Rated lifting capacity: 2000 kg (flat) / 600 kg (round)
• Proof load: 6000 kg
• Works temperature range: -40 °C to +80 °C
• No electricity required, permanent magnet technology
• Less than 1% residual magnetism after release
• One-handed operation via simple switch and safety button
• No slings or clamps needed, protects workpiece surfaces
• CE marked; range extends up to 6000 kg output

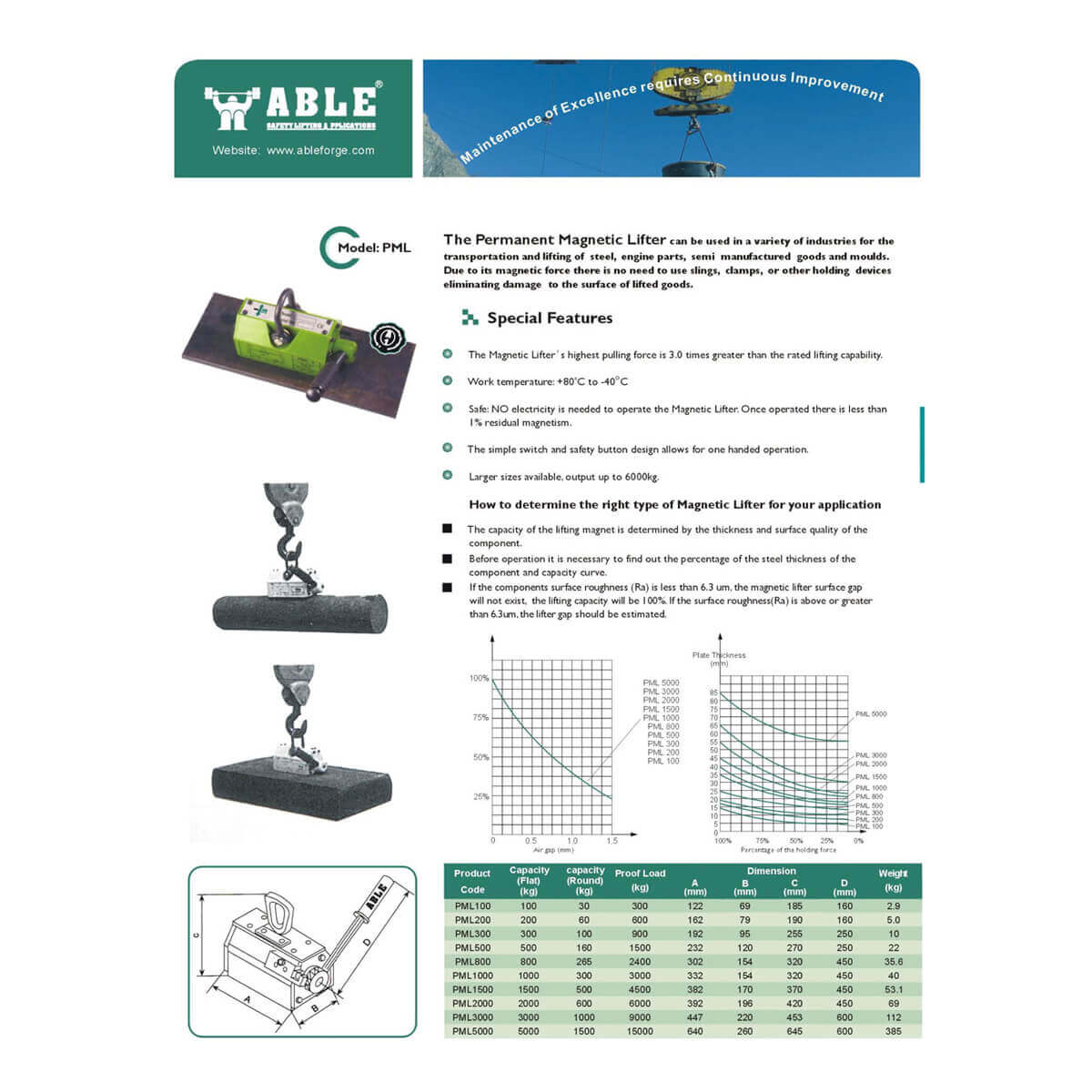

Dimensions (A × B × C × D): 392 mm × 196 mm × 420 mm × 450 mm. Unit weight: 69 kg.
