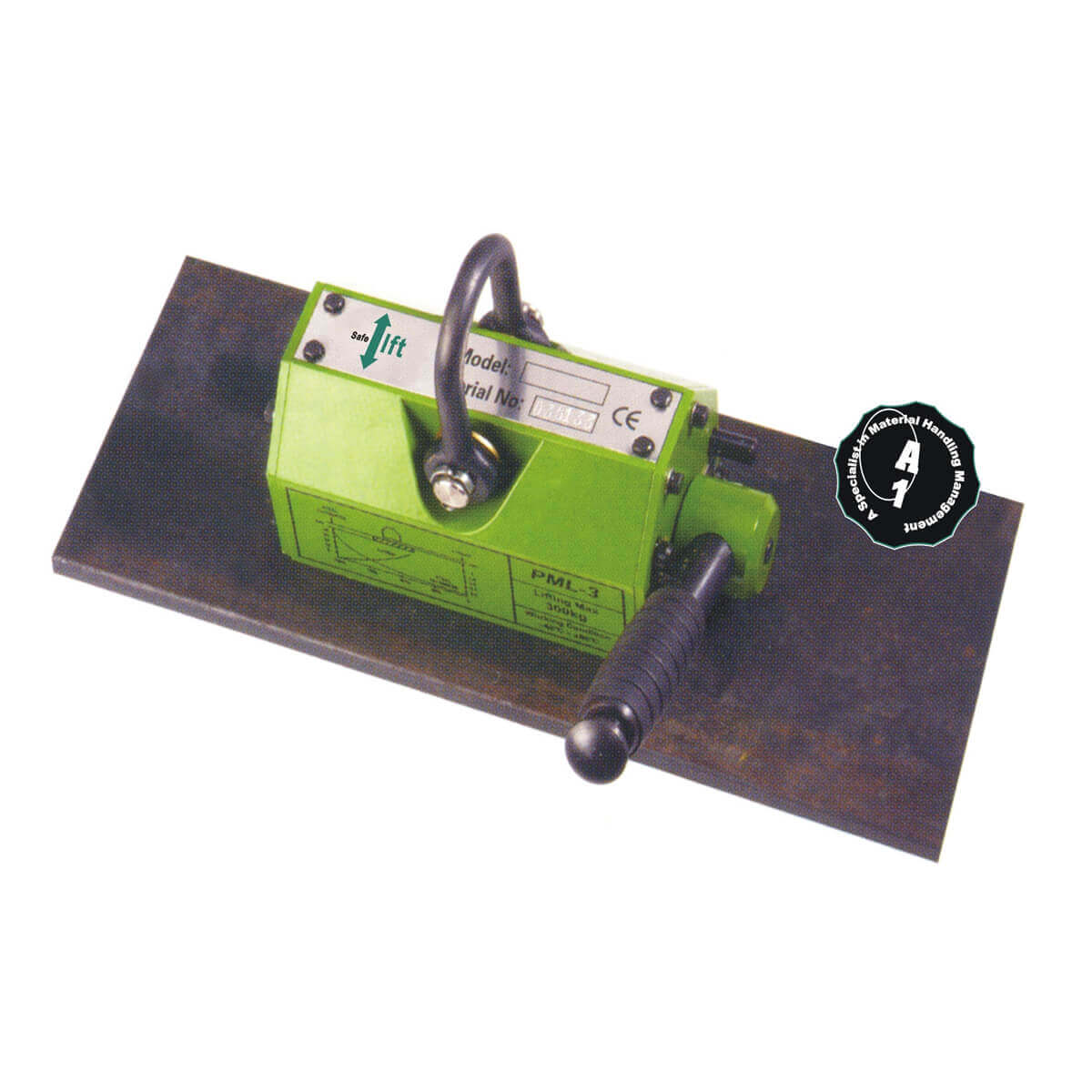

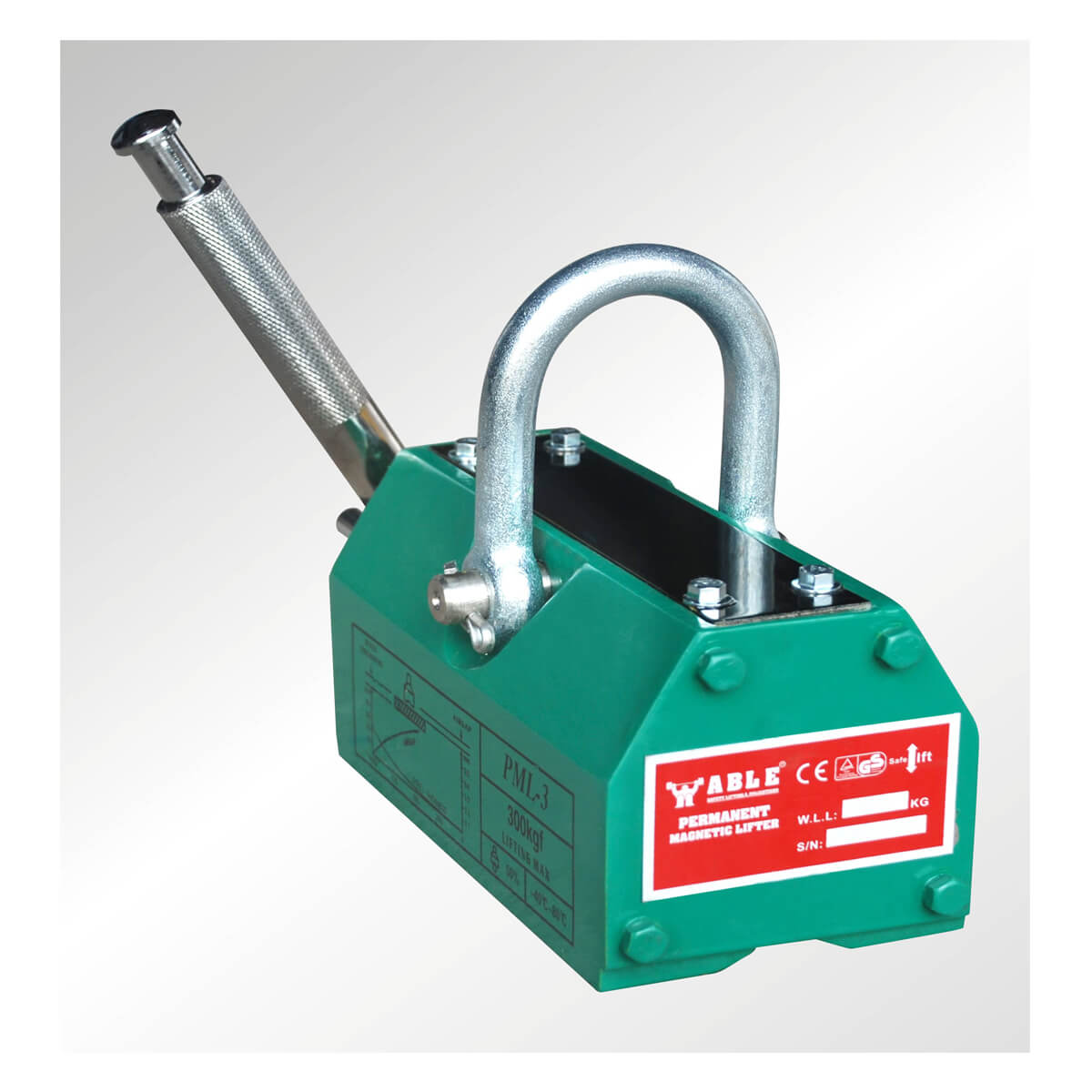

3000 kg Permanent Magnetic Lifter – ABLE PML-3000
The ABLE PML-3000 is a 3000 kg capacity permanent magnetic lifter for safe, electricity-free lifting of flat and round steel workpieces, plates, engine parts, and moulds in industrial environments.
- Working load limit
- 3,000 kg
- Material
- Ferromagnetic steel (flat plate, round bar, engine parts, moulds, semi-manufactured goods)
- Safety factor
- 3
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
The ABLE PML-3000 Permanent Magnetic Lifter provides a reliable, no-electricity solution for lifting and transporting heavy ferromagnetic loads in workshops, fabrication yards, steelworks, and engineering facilities. With a 3000 kg flat-plate lifting capacity and a 1000 kg round-bar capacity, it eliminates the need for slings, clamps, or other holding devices, protecting the surface finish of lifted components.
Powered entirely by its permanent magnet system, the PML-3000 requires no external power supply. A simple lever switch and integrated safety button allow one-handed engagement and release, while less than 1% residual magnetism remains once the lifter is switched off. The highest pulling force is 3.0 times greater than the rated lifting capacity, providing a significant safety margin during operation.
Suitable for flat steel plate, round bar stock, engine parts, semi-manufactured goods, and moulds, the PML-3000 is designed for demanding industrial use across a wide working-temperature range of −40 °C to +80 °C.
- 3000 kg flat-plate lifting capacity, handles heavy steel plate, structural sections, and large fabrications with ease
- 1000 kg round-bar capacity, versatile for cylindrical and profiled stock as well as flat material
- No electricity required, permanent magnet operation with less than 1% residual magnetism after release
- One-handed operation, simple lever switch and safety button for quick, safe engagement and release
- Wide temperature range, rated for use from −40 °C to +80 °C, suitable for indoor and outdoor industrial environments
- High safety factor, magnetic pulling force is 3.0× greater than the rated lifting capacity
- 9000 kg proof load, tested to three times the working load limit

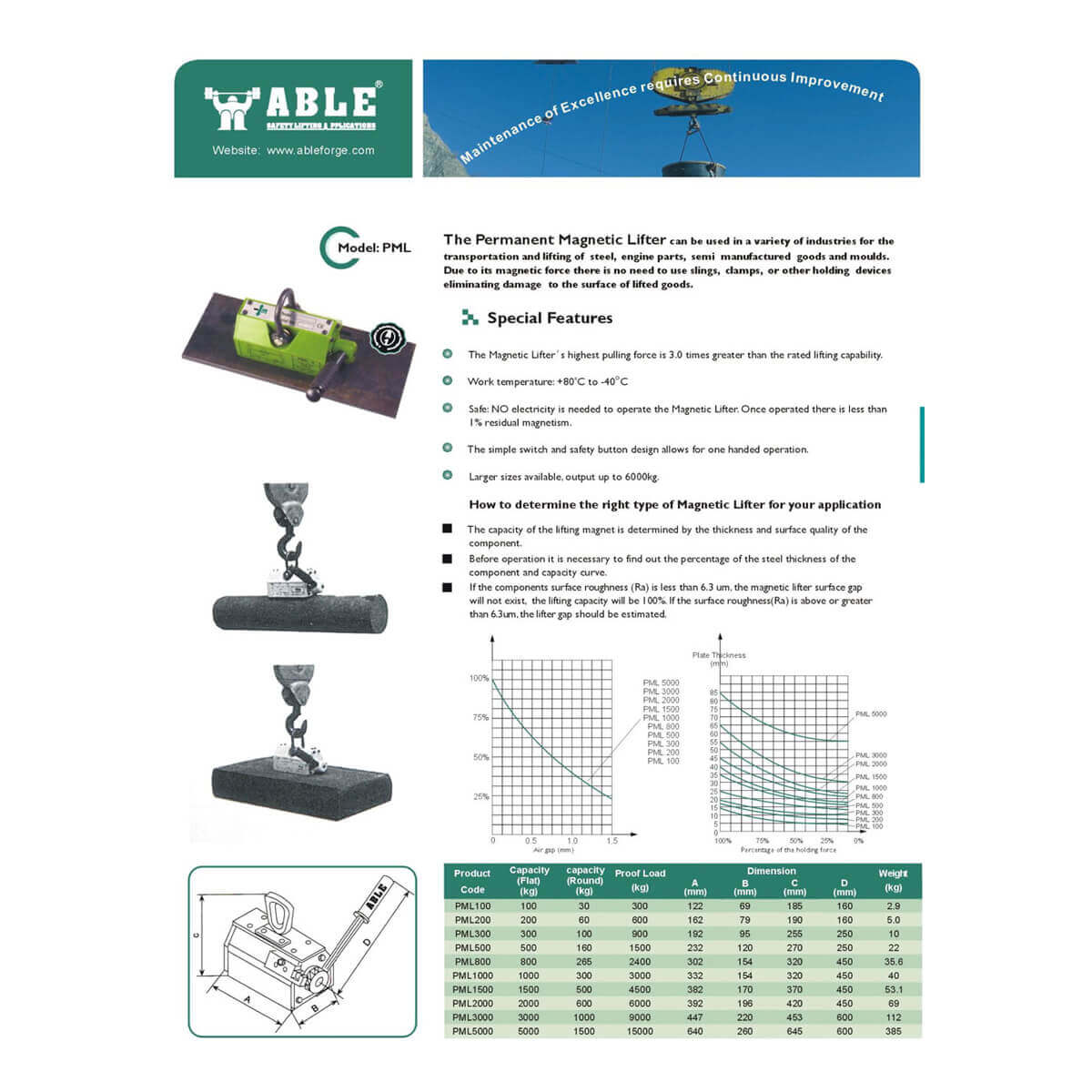

Lifting capacity is affected by the thickness and surface quality of the workpiece. Where surface roughness (Ra) is below 6.3 µm, full rated capacity is achieved. For rougher surfaces, the effective capacity should be estimated using the load/air-gap capacity curve supplied with the unit.
Key features
- 013000 kg flat & 1000 kg round lifting capacity
- 02No power required
- 03One-handed engagement
- 0430× safety factor
- 05Wide operating temperature range of −40 °C to +80 °C
