3000kg Mechanical Steel Jack – HVP-3
Heavy-duty mechanical rack-and-pinion steel jack with a 3-tonne safe working load. Ideal for lifting, bracing and supporting loads in construction, agriculture and rail applications.
- Working load limit
- 3,000 kg
- Material
- CRS (cold-rolled steel) plate
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
Easy Winder Ratchet Strap Winder Tool £9.60£8.00
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

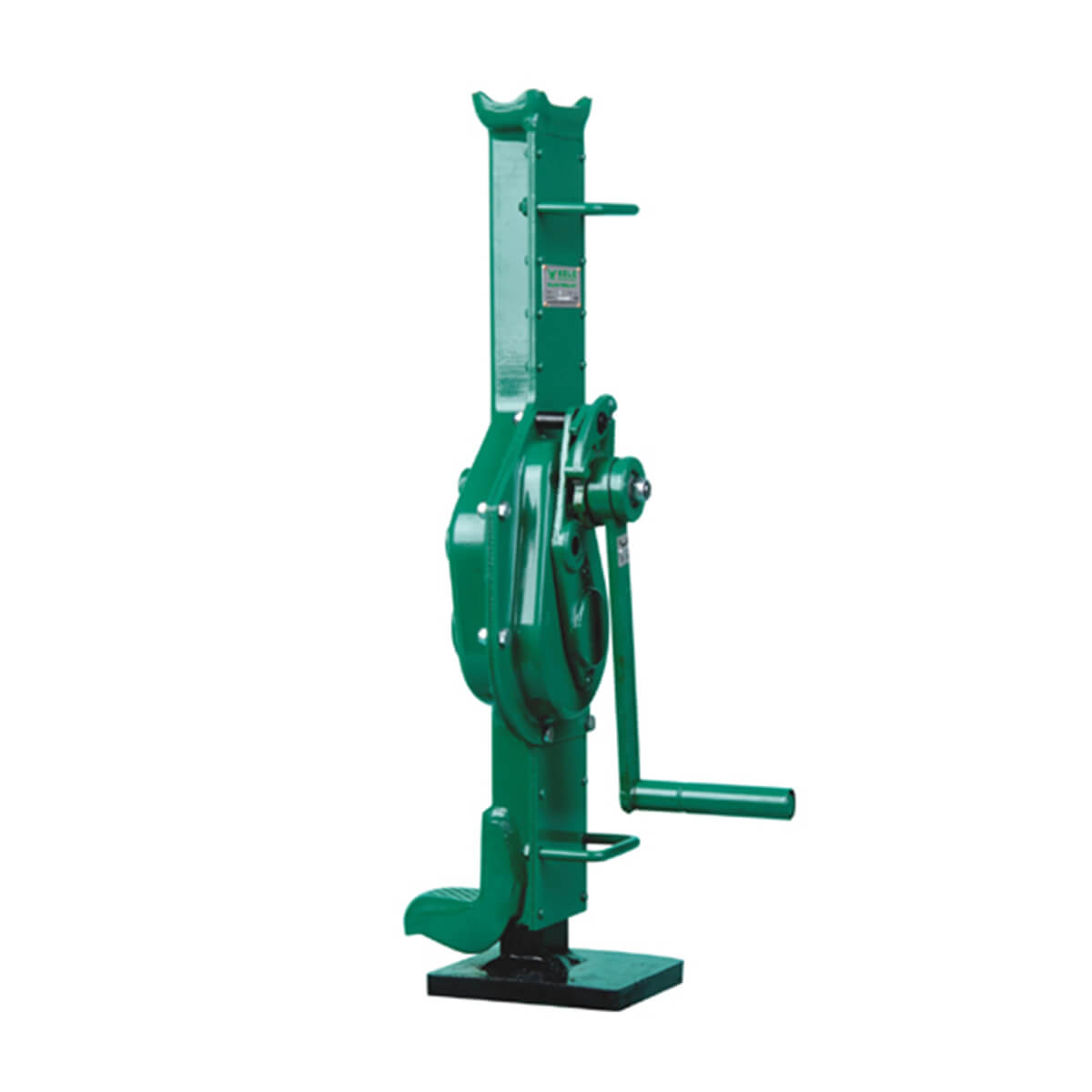

3000kg Mechanical Steel Jack (HVP-3)
This robust mechanical rack-and-pinion jack is engineered for heavy lifting across construction, agriculture and railway environments. Built from high-quality CRS plate with carburised alloy steel gears, it delivers smooth, reliable performance lift after lift.
The double pawl brake system ensures quick, safe braking at any point during the lift, while the low-gearing tolerance provides jerk-free, smooth transmission throughout the full range of travel. An operating turning force of less than 25 kg is all that is needed to raise a full rated load, reducing operator fatigue on demanding jobs.

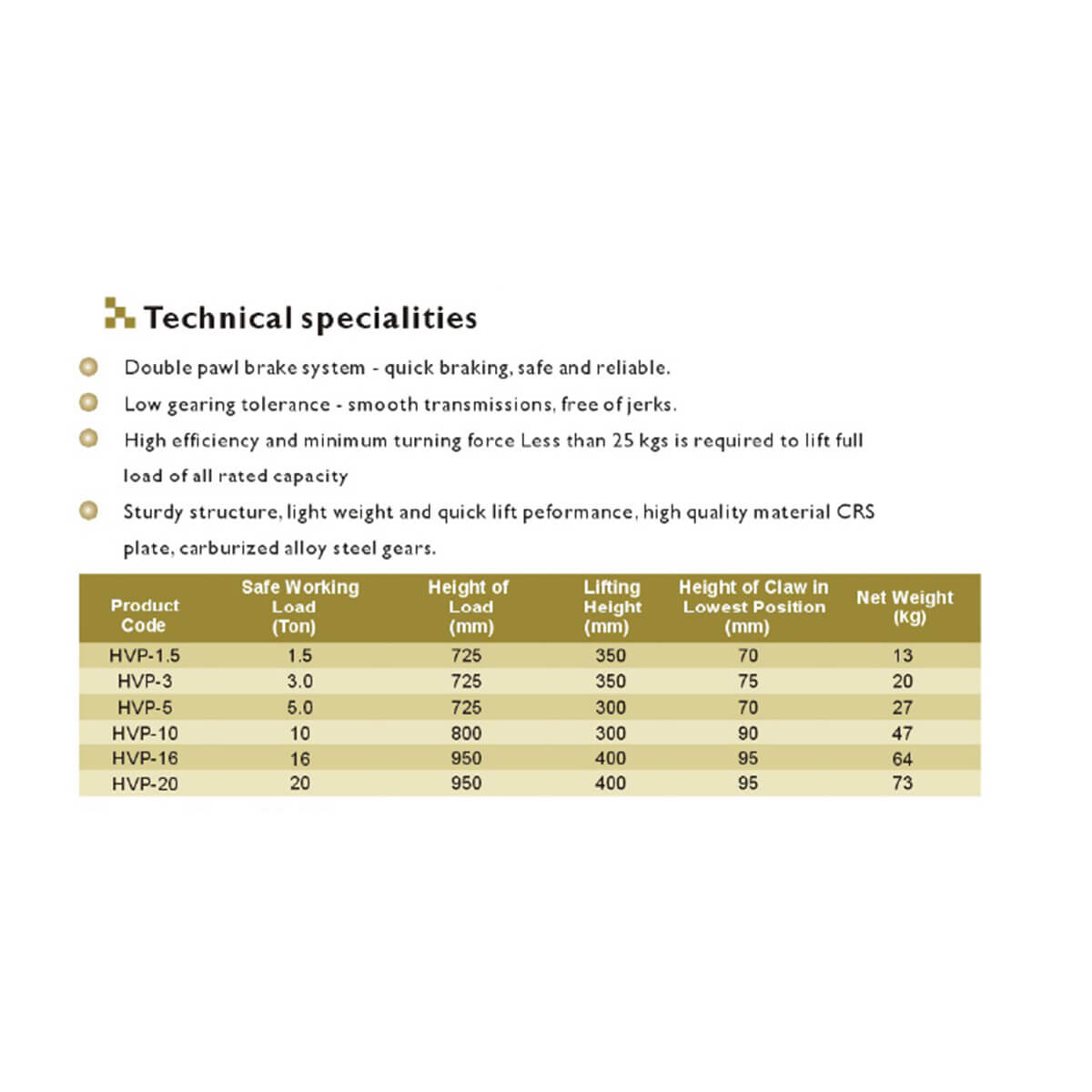

- Safe working load: 3.0 tonnes (3000 kg)
- Height of load: 725 mm
- Lifting height: 350 mm
- Height of claw in lowest position: 75 mm
- Net weight: 20 kg
- Double pawl brake system for safe, controlled lowering
- CRS plate construction with carburised alloy steel gears
- Minimum turning force, less than 25 kg to lift full rated capacity
Suitable for industrial, agricultural and rail maintenance applications where a reliable, manually operated lifting solution is required.
Key features
- 01Safe working load
- 02Double pawl brake system
- 03Low effort operation
- 04725 mm load height & 350 mm lift stroke: Generous height of load and lift range suits a wide variety of industrial applications
- 05Durable crs plate body with alloy steel gears: Carburised alloy steel gears and crs plate construction deliver long service life
Specification
