16000kg Mechanical Steel Jack – HVP-16
A heavy-duty mechanical rack-and-pinion steel jack with a 16-tonne safe working load, designed for lifting, bracing and supporting loads in construction, agriculture and rail applications.
- Working load limit
- 16,000 kg
- Material
- CRS (cold-rolled steel) plate
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
Easy Winder Ratchet Strap Winder Tool £9.60£8.00
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

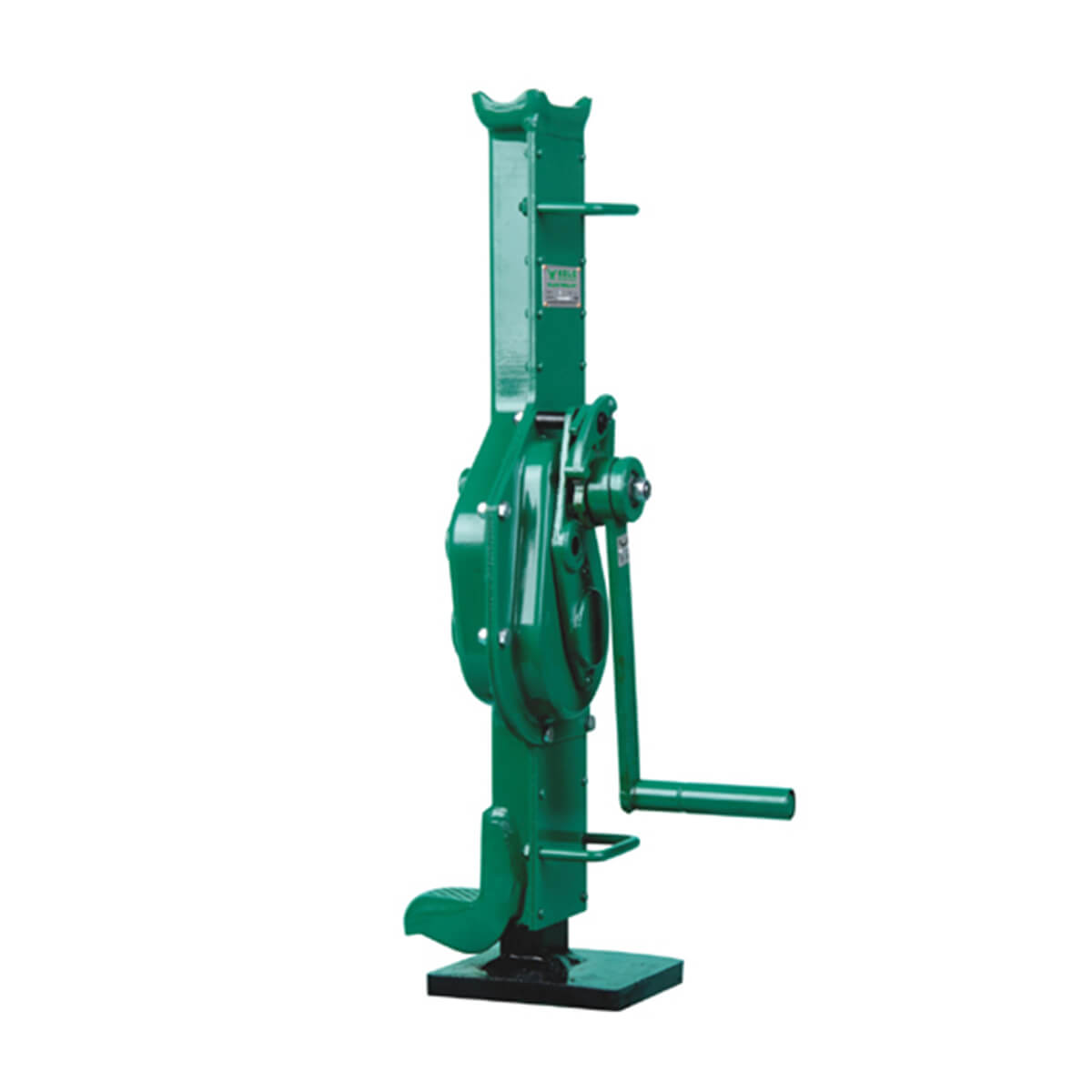

16,000 kg Mechanical Steel Jack, HVP-16
The HVP-16 mechanical steel jack is a robust rack-and-pinion lifting jack rated to a 16-tonne (16,000 kg) safe working load. Built from high-quality CRS (cold-rolled steel) plate with carburised alloy steel gears, it delivers reliable, jerk-free lifting across construction sites, agricultural settings and rail maintenance environments.
A double pawl brake system ensures the load is held securely at any height, while the low-gearing tolerance provides smooth, controlled operation. Despite its impressive capacity, the HVP-16 requires less than 25 kg of turning force at the handle to lift a full rated load, reducing operator fatigue on demanding jobs.
- Double pawl brake system for quick, safe and reliable load holding
- Low gearing tolerance for smooth, jerk-free transmission
- Less than 25 kg turning force required to lift full rated capacity
- CRS plate construction with carburised alloy steel gears for long service life
- Suitable for lifting, bracing and supporting loads in construction, agriculture and rail industries
Key features
- 0116-tonne safe working load
- 02Double pawl brake system
- 03Low effort operation
- 04Premium materials
- 05Generous lift range

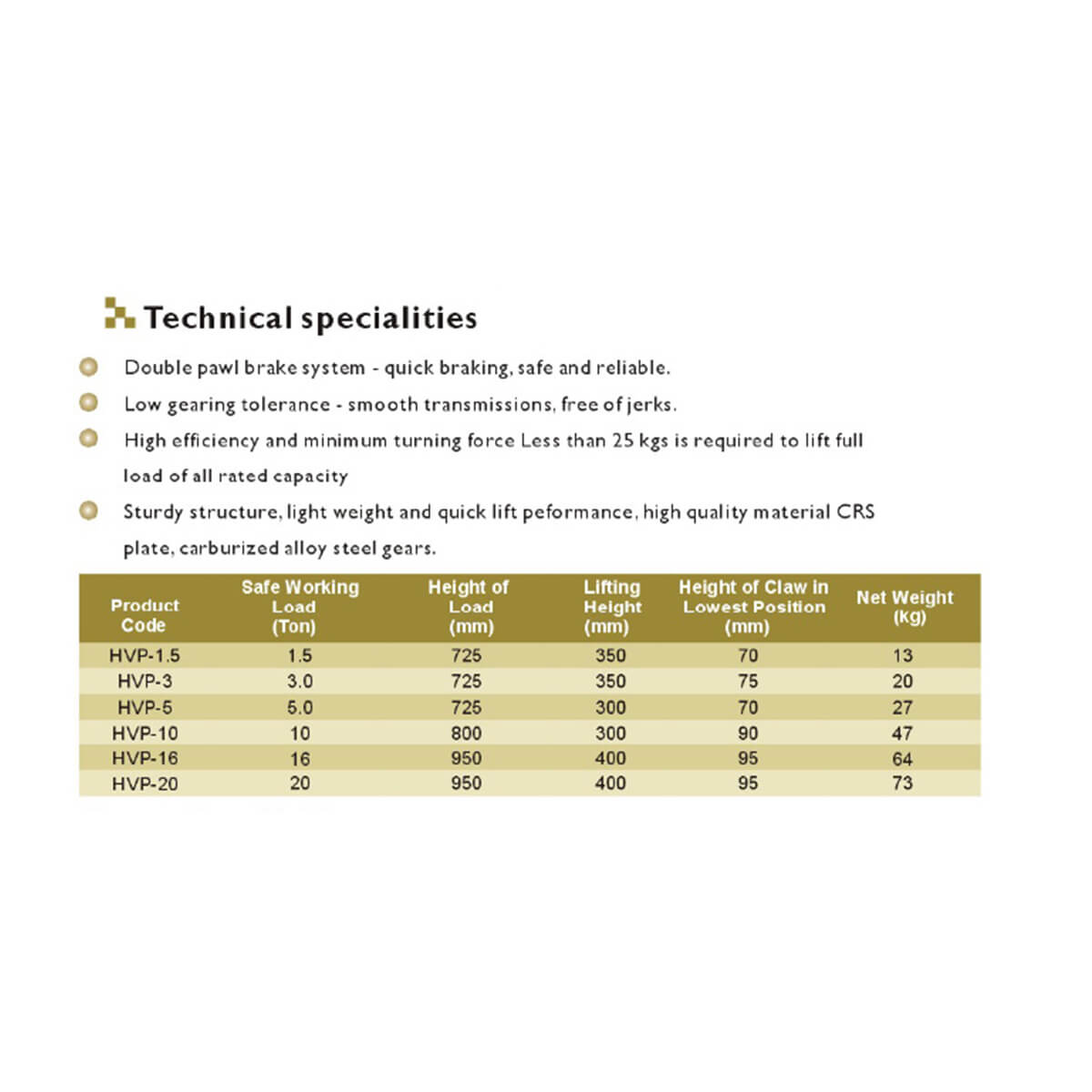

Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
