20,000 kg Mechanical Steel Jack – HVP-20
A heavy-duty mechanical rack-and-pinion steel jack rated to 20 tonnes, designed for lifting, bracing and supporting large loads in construction, agriculture and rail applications.
- Working load limit
- 20,000 kg
- Material
- CRS (cold-rolled steel) plate
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
Easy Winder Ratchet Strap Winder Tool £9.60£8.00
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

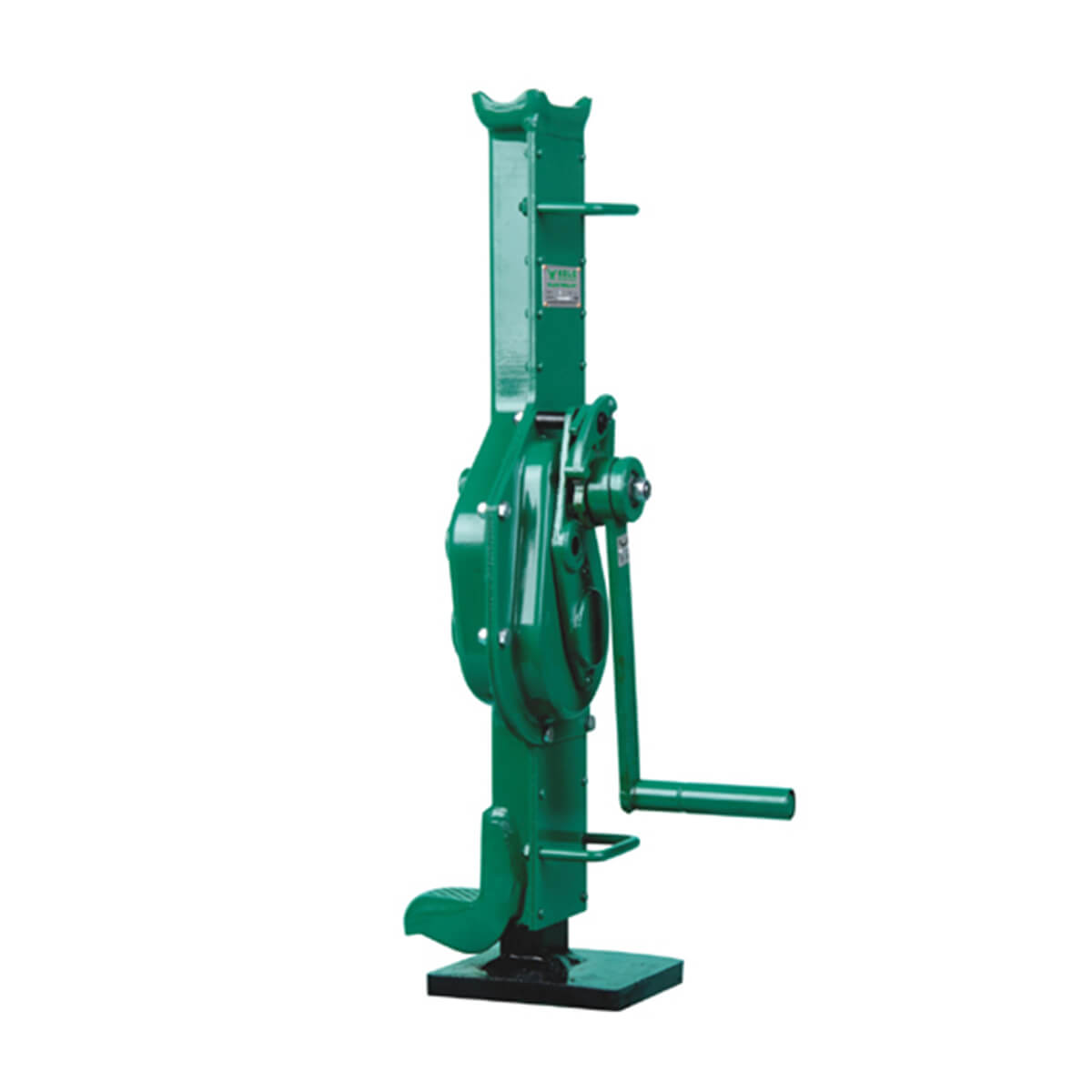

ABLE HVP-20 Mechanical Steel Jack, 20,000 kg Capacity
The ABLE HVP-20 is a heavy-duty mechanical rack-and-pinion steel jack capable of safely lifting up to 20 tonnes. Built from high-quality CRS (cold-rolled steel) plate with carburised alloy steel gears, it delivers smooth, reliable performance in demanding environments including construction, agriculture and rail industries.
The jack features a double pawl brake system for quick, positive braking and a low-gearing tolerance that ensures smooth, jerk-free transmission throughout the lift. Its high-efficiency gear train means that less than 25 kg of turning force is all that is required to raise a full-rated load, reducing operator fatigue during extended use.

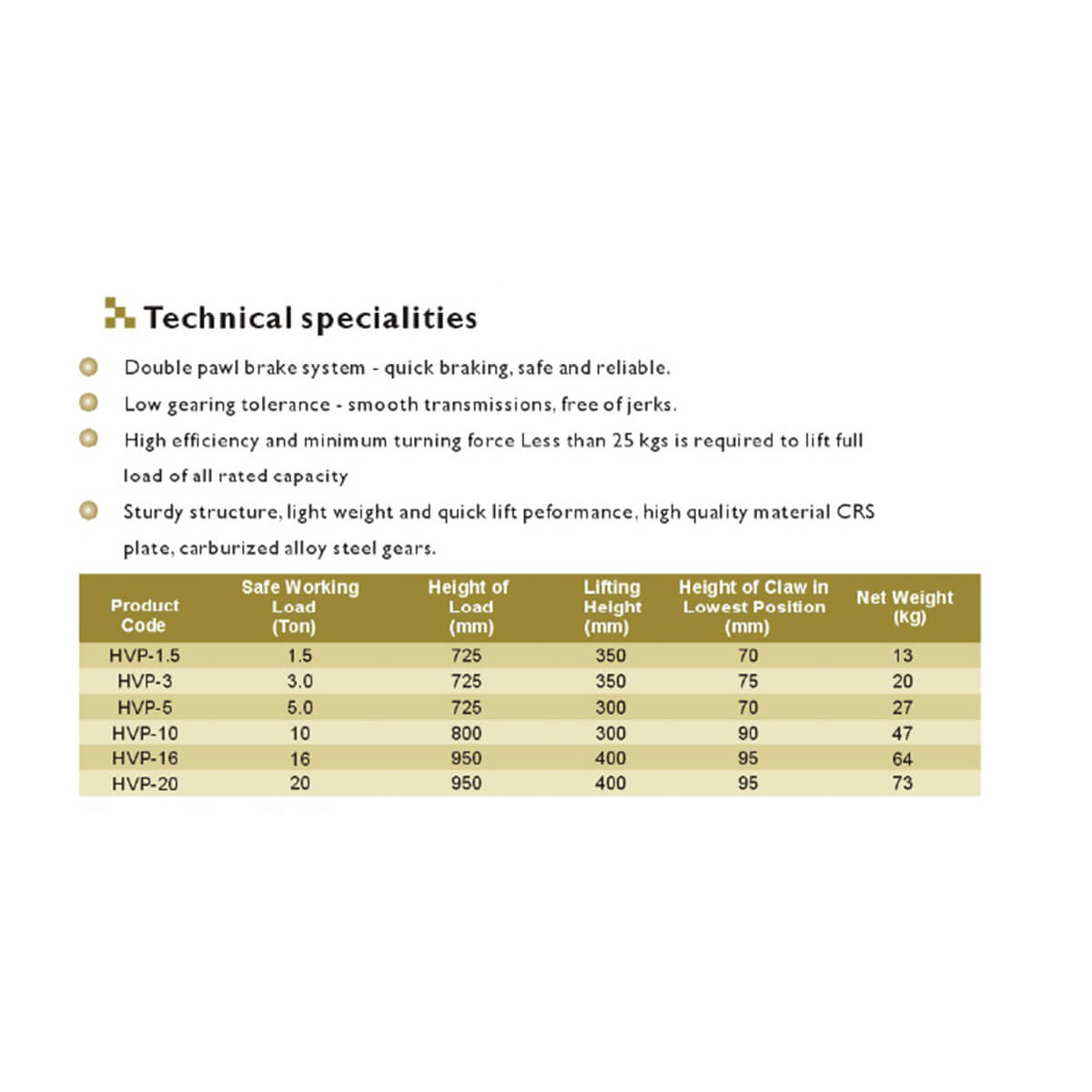

- Safe Working Load: 20 tonnes (20,000 kg)
- Height of Load: 950 mm
- Lifting Height: 400 mm
- Height of Claw in Lowest Position: 95 mm
- Net Weight: 73 kg
- Construction: CRS plate body with carburised alloy steel gears
- Brake System: Double pawl for safe, reliable load holding
- Colour: Green
Suitable for lifting and positioning heavy machinery, rail infrastructure, structural steelwork and agricultural equipment, the HVP-20 is a dependable workhorse wherever substantial lifting capacity is needed.
Key features
- 01Heavy-duty 20-tonne capacity
- 02Double pawl brake system
- 03Low effort operation
- 04Smooth
- 05Robust steel construction
