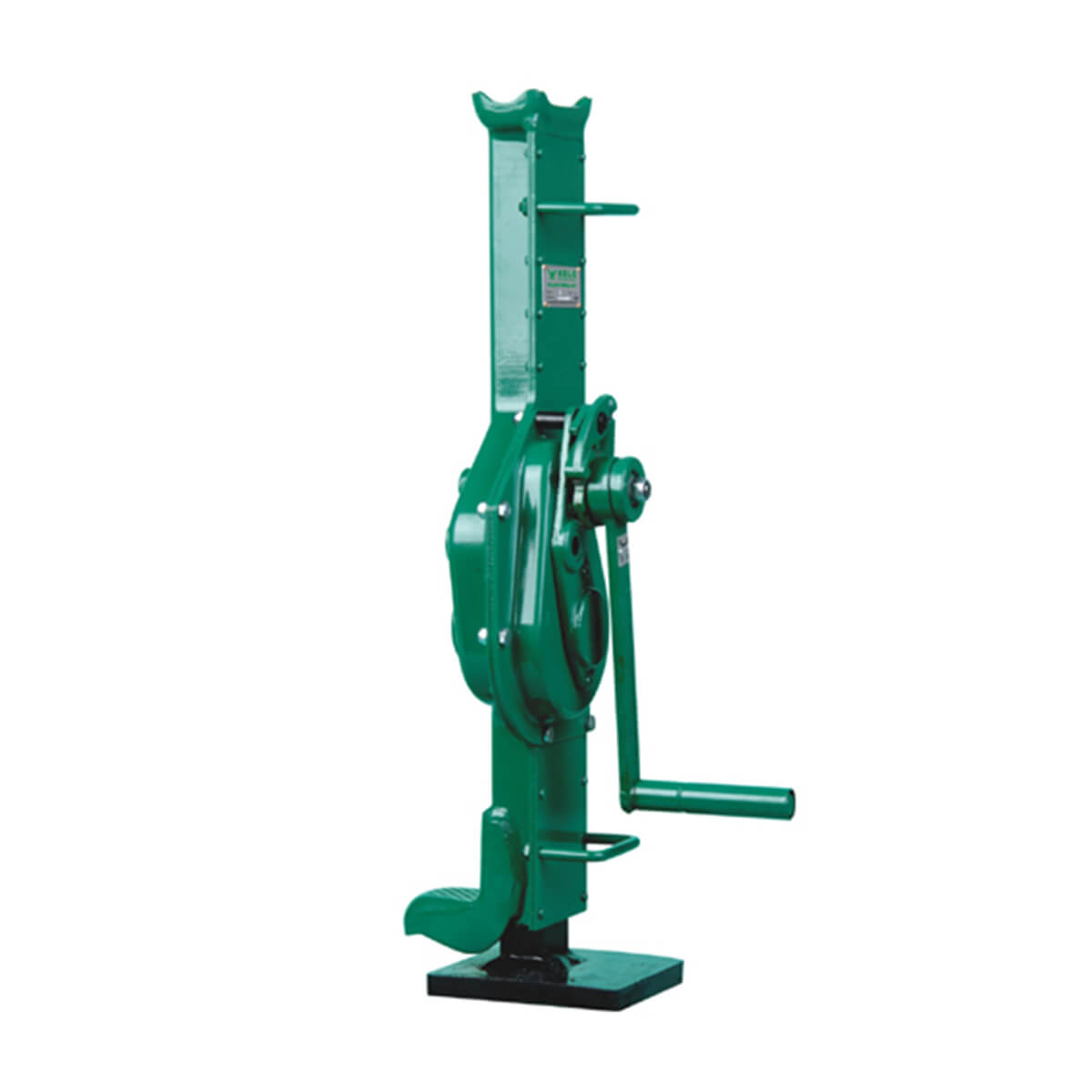

5000kg Mechanical Steel Jack – HVP-5

The HVP-5 Mechanical Steel Jack is a robust, manually operated ratchet jack designed for heavy industrial lifting, jacking, and supporting of machinery, vehicles, rail equipment, agricultural plant, and structural loads up to 5,000 kg (5 tonnes).

Constructed from high-quality cold-rolled steel (CRS) plate with carburised alloy steel gears, this jack delivers exceptional durability and long service life even in demanding site conditions. The low-profile claw foot, wide steel base plate, and notched lifting head allow it to engage loads from a minimum claw height of just 70 mm.

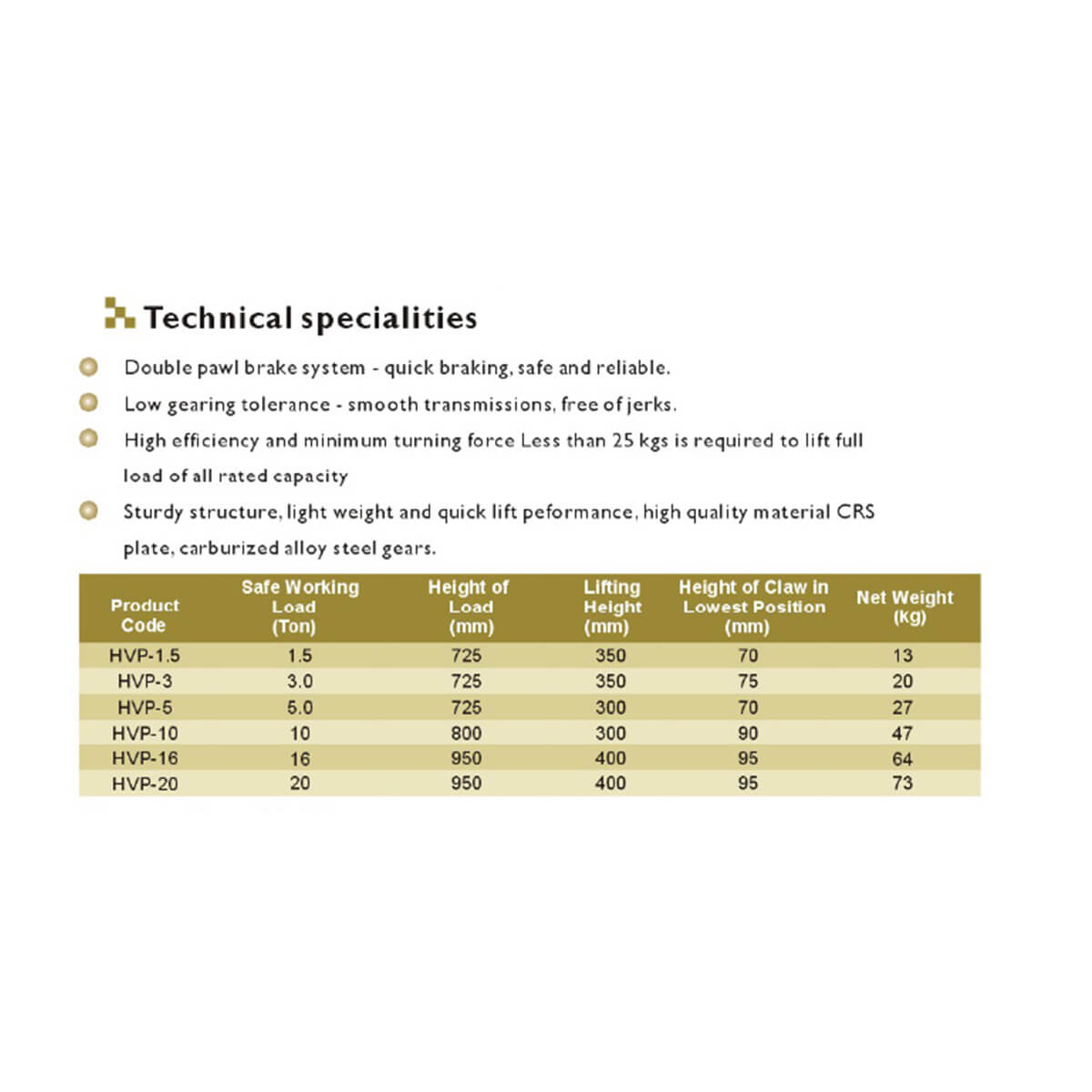

• Double pawl brake system, provides quick, safe, and reliable braking to hold the load securely at any position.
• Low gearing tolerance, ensures smooth, jerk-free transmission for precise load control.
• High mechanical efficiency, less than 25 kg of turning force is required to lift the full rated load.
• CRS plate body with carburised alloy steel gears, sturdy yet comparatively lightweight construction at just 27 kg net weight.
• Versatile claw and head design, lifts from a low claw position of 70 mm with a total lifting stroke of 300 mm and a load height of 725 mm.

Suitable for use in construction, agriculture, rail, heavy haulage, and industrial maintenance environments wherever a reliable mechanical lifting solution is required.
