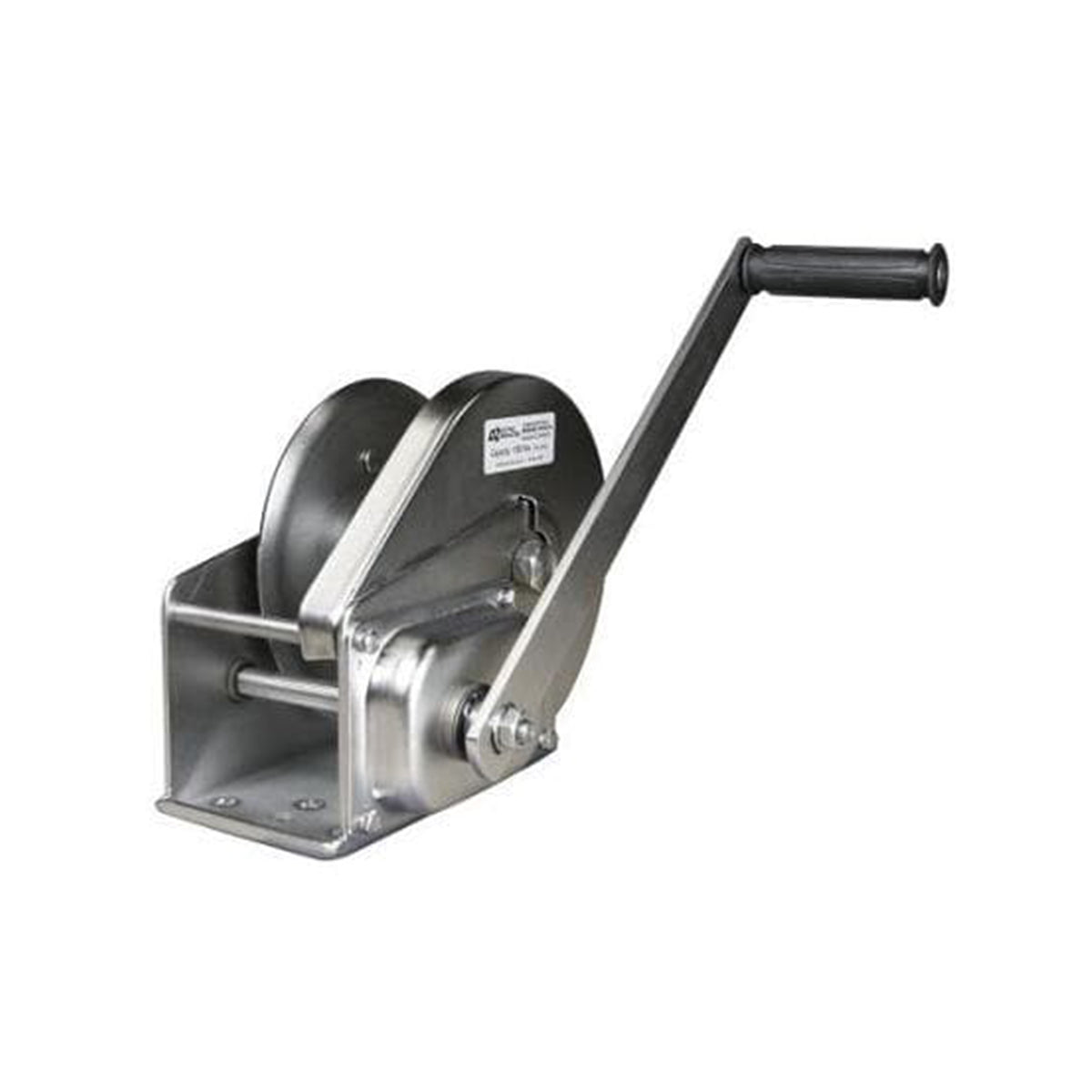

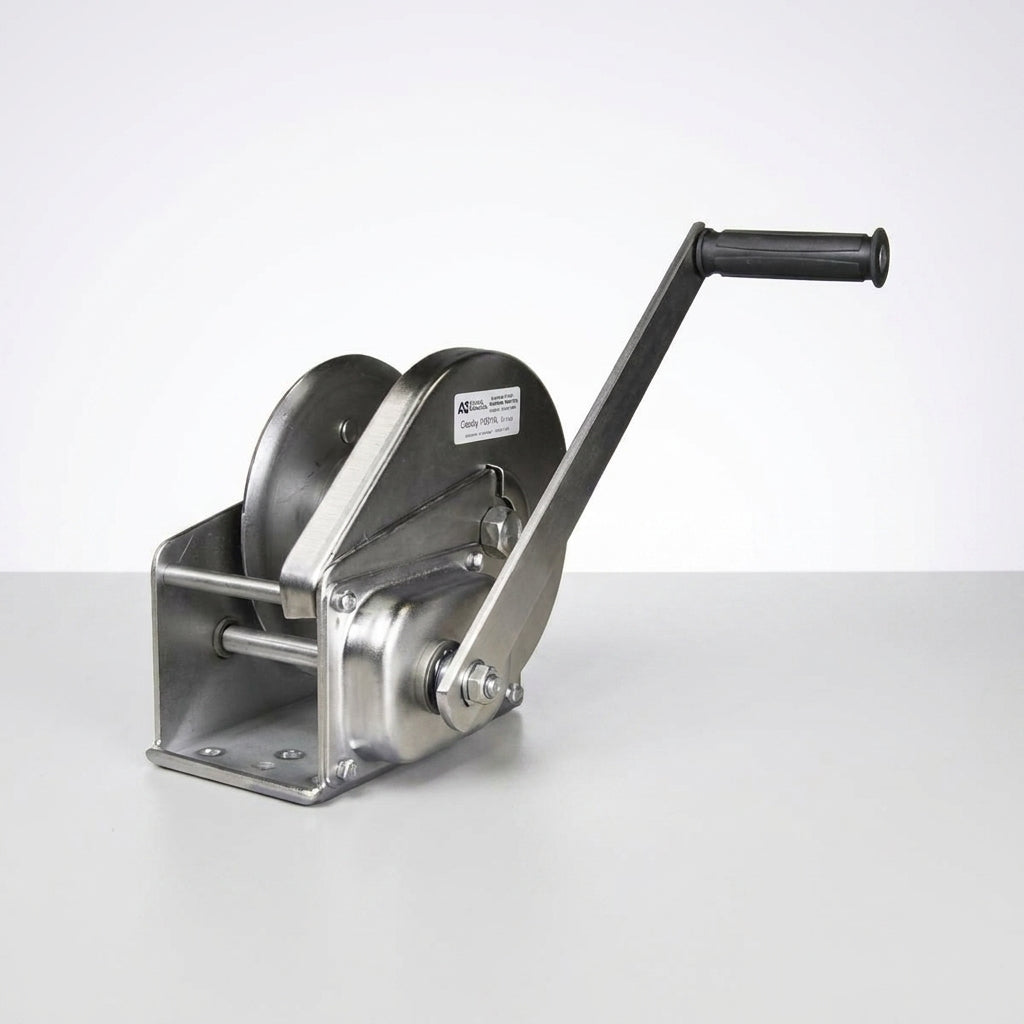

Able BHW-2600S Stainless Steel Brake Hand Winch – 600 kg / 1,200 kg Pulling Capacity
Heavy-duty stainless steel manual brake hand winch by Able with a 600 kg lifting capacity and 10:1 gear ratio. Ideal for boat hoisting, vehicle recovery and outdoor lifting in corrosive environments.
- Working load limit
- 600 kg
- Pulling capacity
- 1,200 kg
- Rope diameter
- 8 mm
- Material
- A304 stainless steel
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
Easy Winder Ratchet Strap Winder Tool £9.60£8.00
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

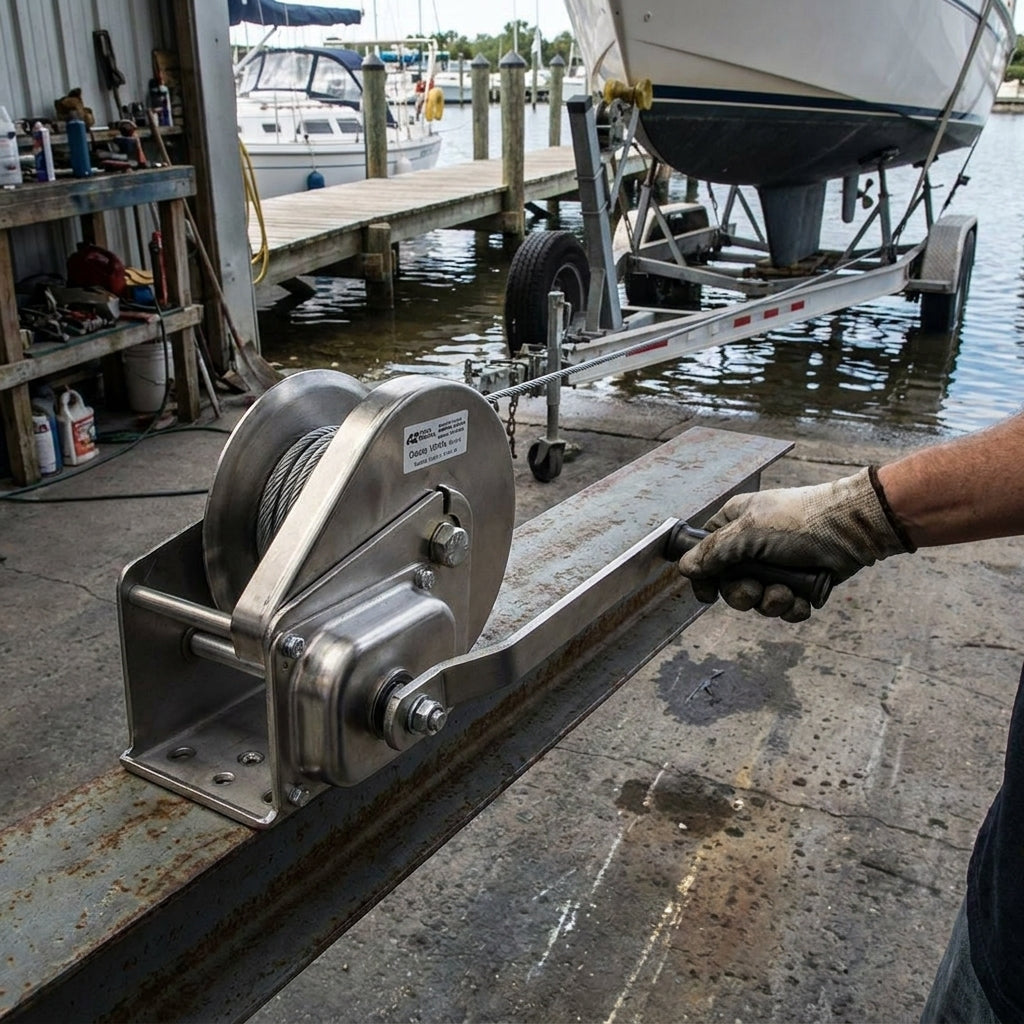

The Able BHW-2600S is a robust stainless steel manual brake hand winch designed for safe, controlled lifting and pulling across a wide range of demanding applications, including boat raising on trailers, vehicle recovery, and general hoisting duties. Built from A304 stainless steel throughout, it is exceptionally resistant to corrosion, making it the go-to choice for marine, coastal, and other harsh outdoor environments.
An automatic load-pressure brake holds the load securely in any position without freewheeling, giving the operator confident hands-on control whether raising or lowering. The 10:1 spur-gear drive delivers optimal mechanical efficiency, requiring only 19.0 kg of effort on the first rope layer to pull a 1,200 kg load. The rope drum runs on bearings for smooth, low-effort operation, and the bolt-down base plate allows permanent or semi-permanent mounting to trailers, jetties, or workshop structures.

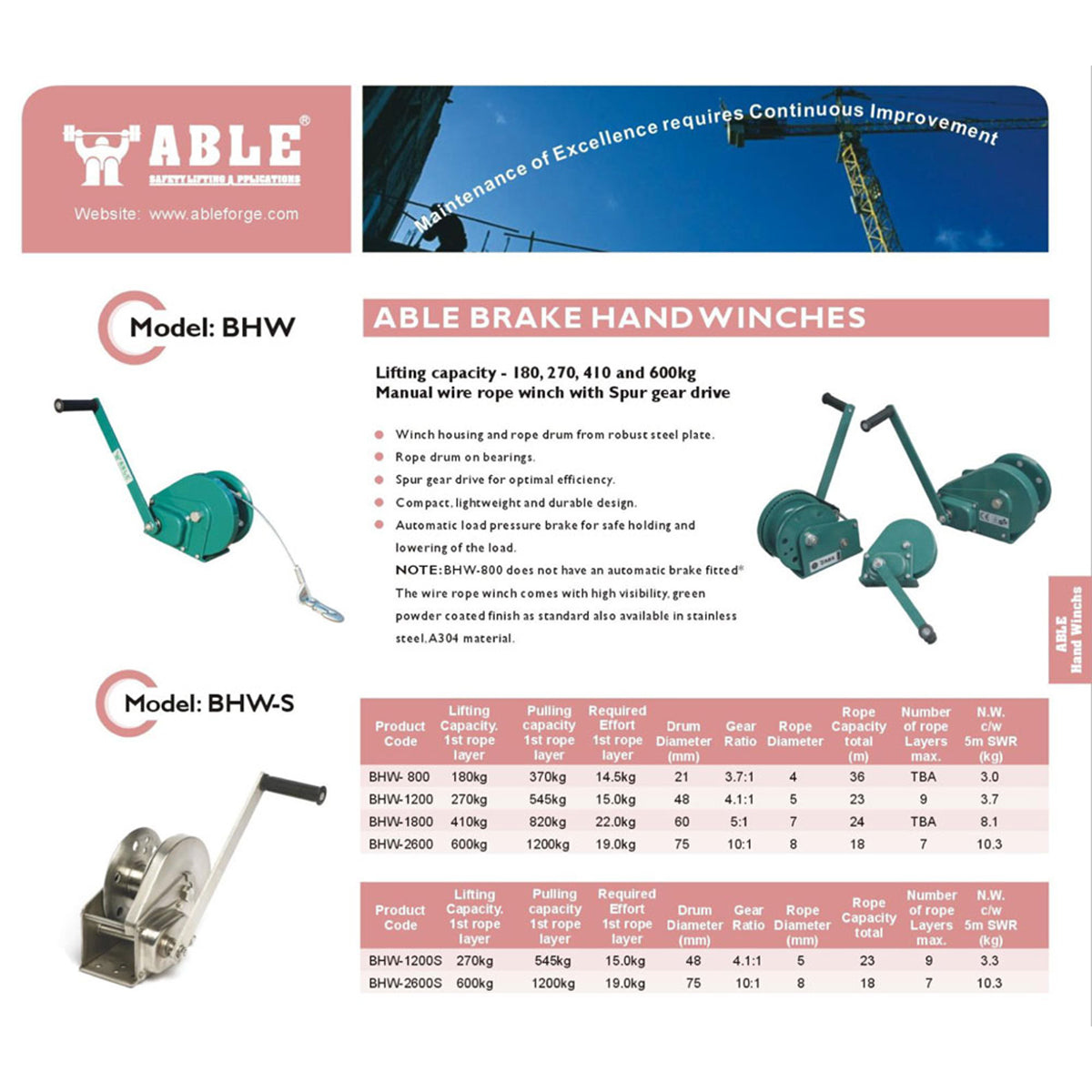

- Lifting capacity (1st rope layer): 600 kg
- Pulling capacity (1st rope layer): 1,200 kg
- Required effort (1st rope layer): 19.0 kg
- Gear ratio: 10:1 spur gear drive
- Drum diameter: 75 mm
- Rope diameter: 8 mm
- Rope capacity: 18 m total
- Number of rope layers (max): 7
- A304 stainless steel construction for superior corrosion resistance
- Automatic load-pressure brake, no freewheeling, safe load holding

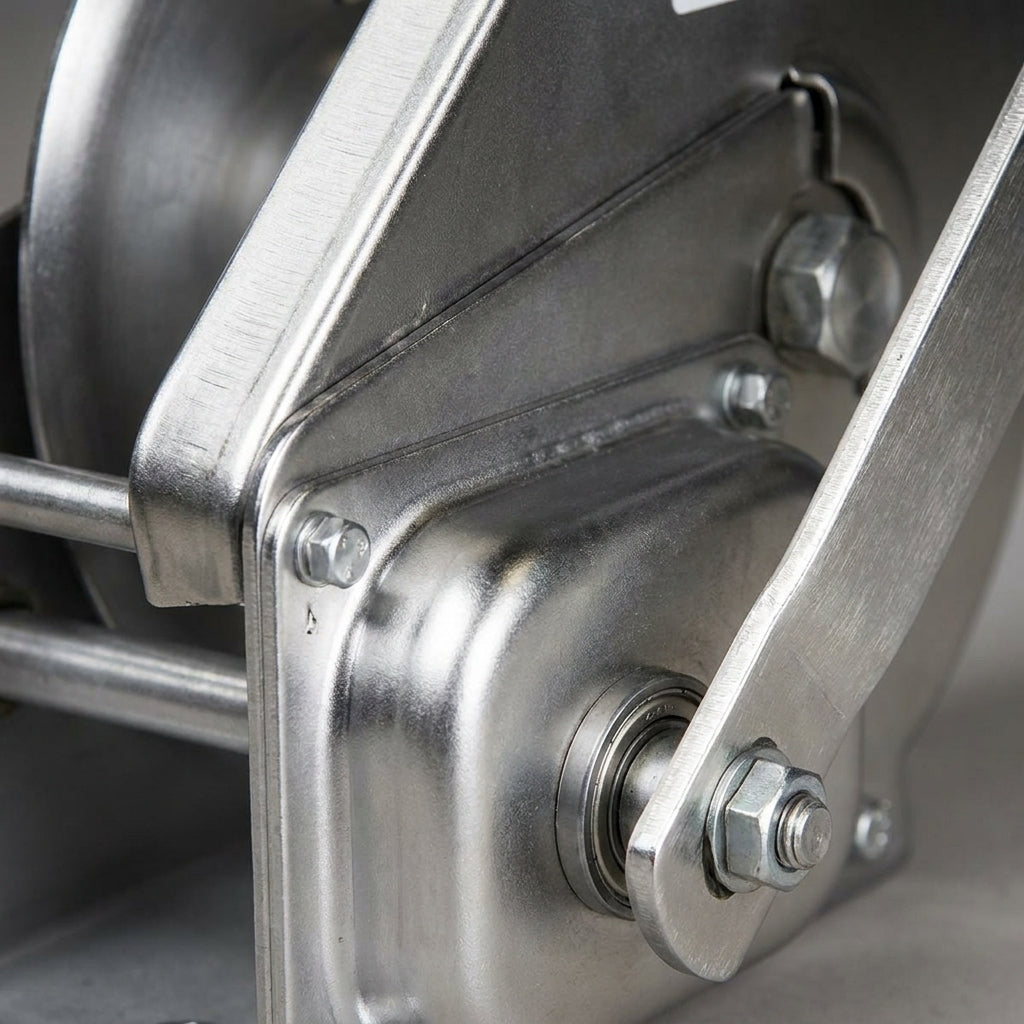

- Rope drum mounted on bearings for smooth, efficient operation
- Compact, lightweight and durable design
- Net weight (c/w 5 m SWR): 10.3 kg
Key features
- 01600 kg lifting capacity (1st rope layer)
- 0210:1 spur gear drive requires only 190 kg of effort on the first rope layer
- 03A304 stainless steel housing and rope drum deliver outstanding corrosion resistance
- 04Automatic load-pressure brake holds the load securely in any position
- 05Rope drum runs on bearings for smooth
Specification
