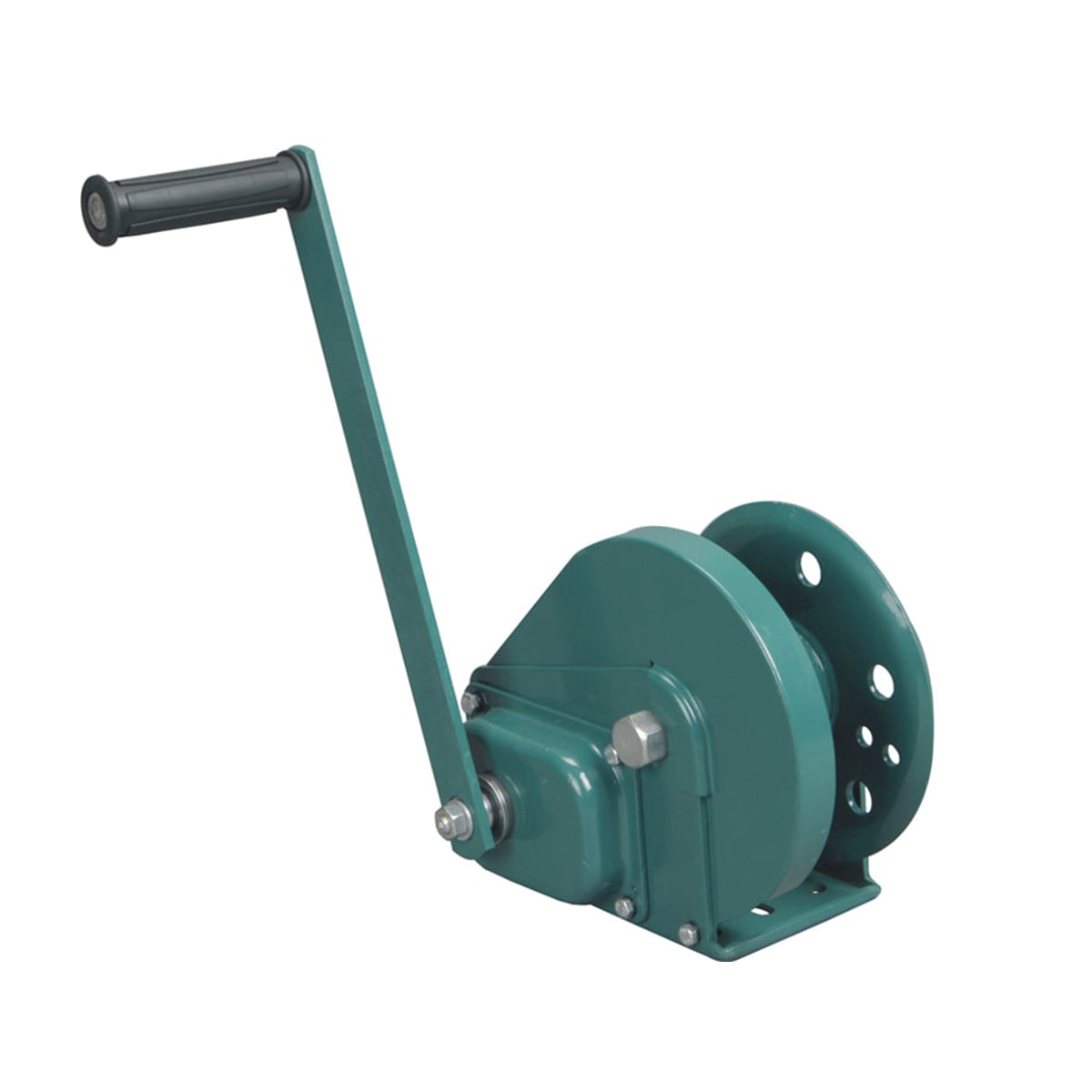

Able BHW-2600 Brake Hand Winch – 600 kg Lifting Capacity
Heavy-duty manual brake hand winch with 600 kg lifting capacity and spur gear drive. Features an automatic load pressure brake for safe holding and lowering of loads in any position.
- Working load limit
- 600 kg
- Pulling capacity
- 1,200 kg
- Rope diameter
- 8 mm
- Material
- Steel plate
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
Easy Winder Ratchet Strap Winder Tool £9.60£8.00
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm

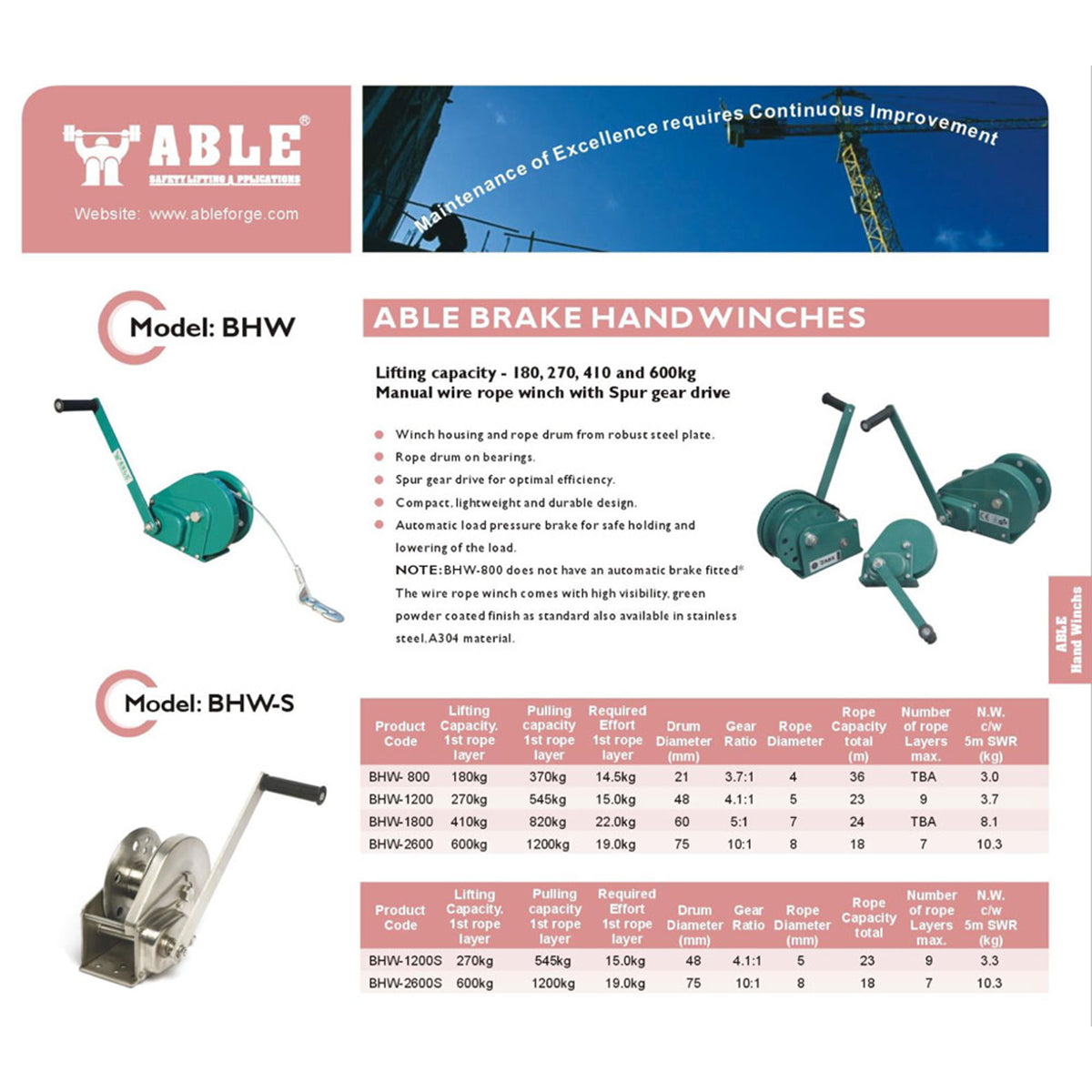

Overview
The Able BHW-2600 is a robust manual wire rope hand winch designed for a wide range of lifting, hoisting and pulling applications, including boat launching, vehicle recovery, crane work and general industrial use. Built from heavy-gauge steel plate with a high-visibility green powder coat finish, it combines genuine durability with a compact, lightweight form factor.
A spur gear drive delivers optimal mechanical efficiency, while the automatic load pressure brake holds the load securely in any position without freewheeling, making this winch significantly safer to operate than non-braked alternatives. All mechanical components are enclosed within the housing for protection against dust, dirt and moisture ingress.
- Winch housing and rope drum constructed from robust steel plate
- Rope drum mounted on bearings for smooth, efficient operation
- Spur gear drive for optimal mechanical efficiency
- Automatic load pressure brake for safe holding and controlled lowering
- High-visibility green powder coat finish as standard
- Rope-to-drum fixing clamp included
- Also available in Grade 304 stainless steel (BHW-2600S)
Supplied complete with 5 m of steel wire rope (SWR). Rope to drum fixing clamp included as standard.
Key features
- 01600 kg lifting capacity (1st rope layer)
- 02Automatic load pressure brake holds the load securely in any position
- 03Spur gear drive (10:1 gear ratio) reduces required hand effort to just 19 kg
- 04Enclosed steel plate housing and rope drum
- 05Accepts 8 mm diameter wire rope
