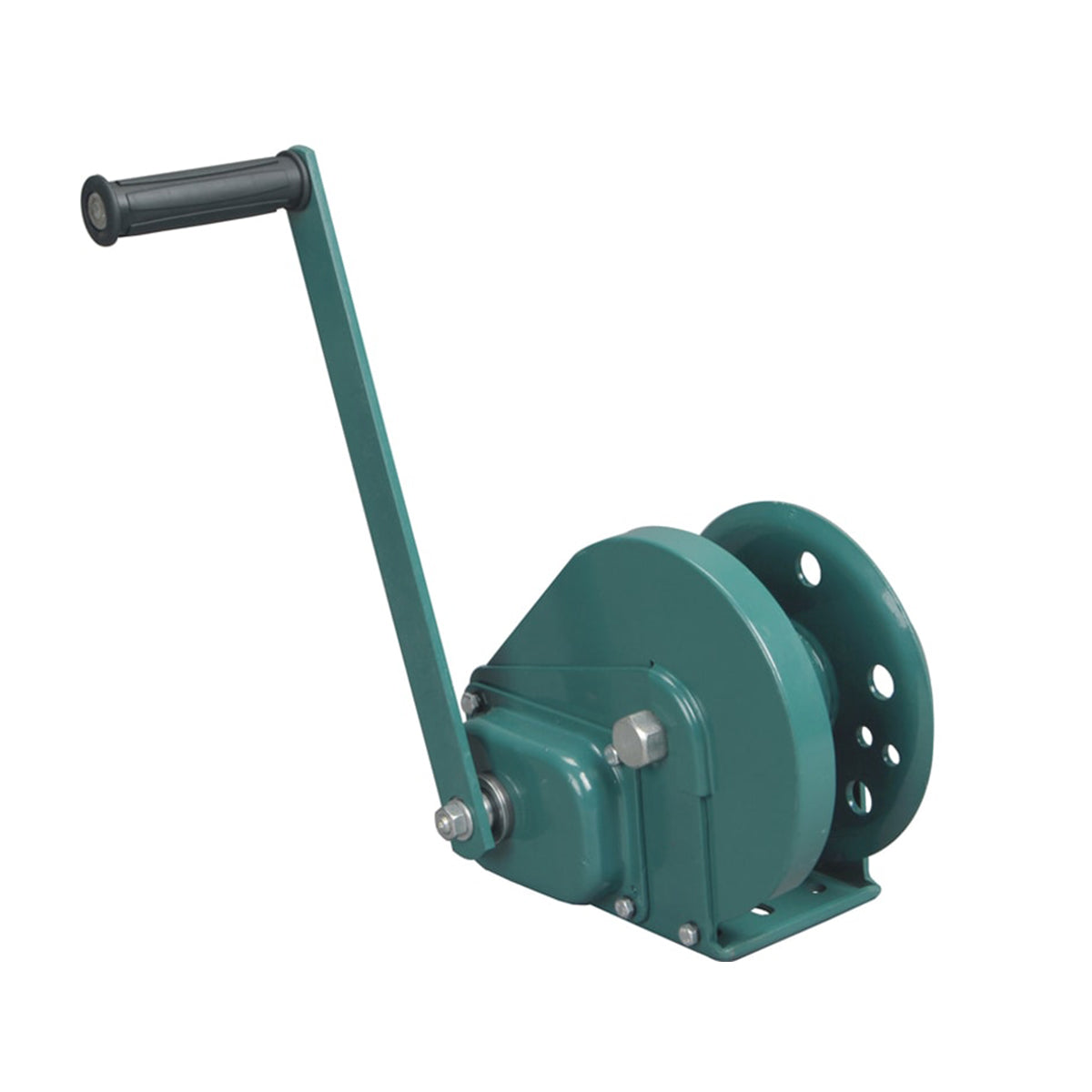

1,200 lbs x 10 m Brake Hand Winch – Able BHW-1200
Heavy-duty manual brake hand winch with a 270 kg lifting capacity and 23 m rope storage. Spur gear drive and automatic load pressure brake make lifting and lowering safe and efficient.
- Working load limit
- 270 kg
- Pulling capacity
- 545 kg
- Rope diameter
- 5 mm
- Material
- Steel plate
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
Easy Winder Ratchet Strap Winder Tool £9.60£8.00
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
The Able BHW-1200 is a robust manual wire rope hand winch designed for lifting, hoisting and pulling applications including boat raising, vehicle recovery and general crane use. Built from heavy-gauge steel plate with a high-visibility green powder-coated finish, it is compact yet tough enough for demanding site conditions.
An automatic load pressure brake holds the load securely in any position without freewheeling, making every lift safer and more controlled. The spur gear drive delivers optimal mechanical efficiency, while the rope drum runs on bearings for smooth, low-effort operation. All mechanical components are enclosed within the steel housing for protection against dust, dirt and moisture.
- Winch housing and rope drum constructed from robust steel plate
- Rope drum mounted on bearings for smooth operation
- Spur gear drive for optimal efficiency
- Automatic load pressure brake, holds load safely in any position
- High-visibility green powder-coated finish; stainless steel (A304) version also available
- Rope-to-drum fixing clamp included
- All mechanical components enclosed for protection against dust, dirt and rain
The BHW-1200 is supplied complete with 5 m of steel wire rope (SWR) as standard. A stainless steel variant (BHW-1200S) is available for corrosive environments.
Key features

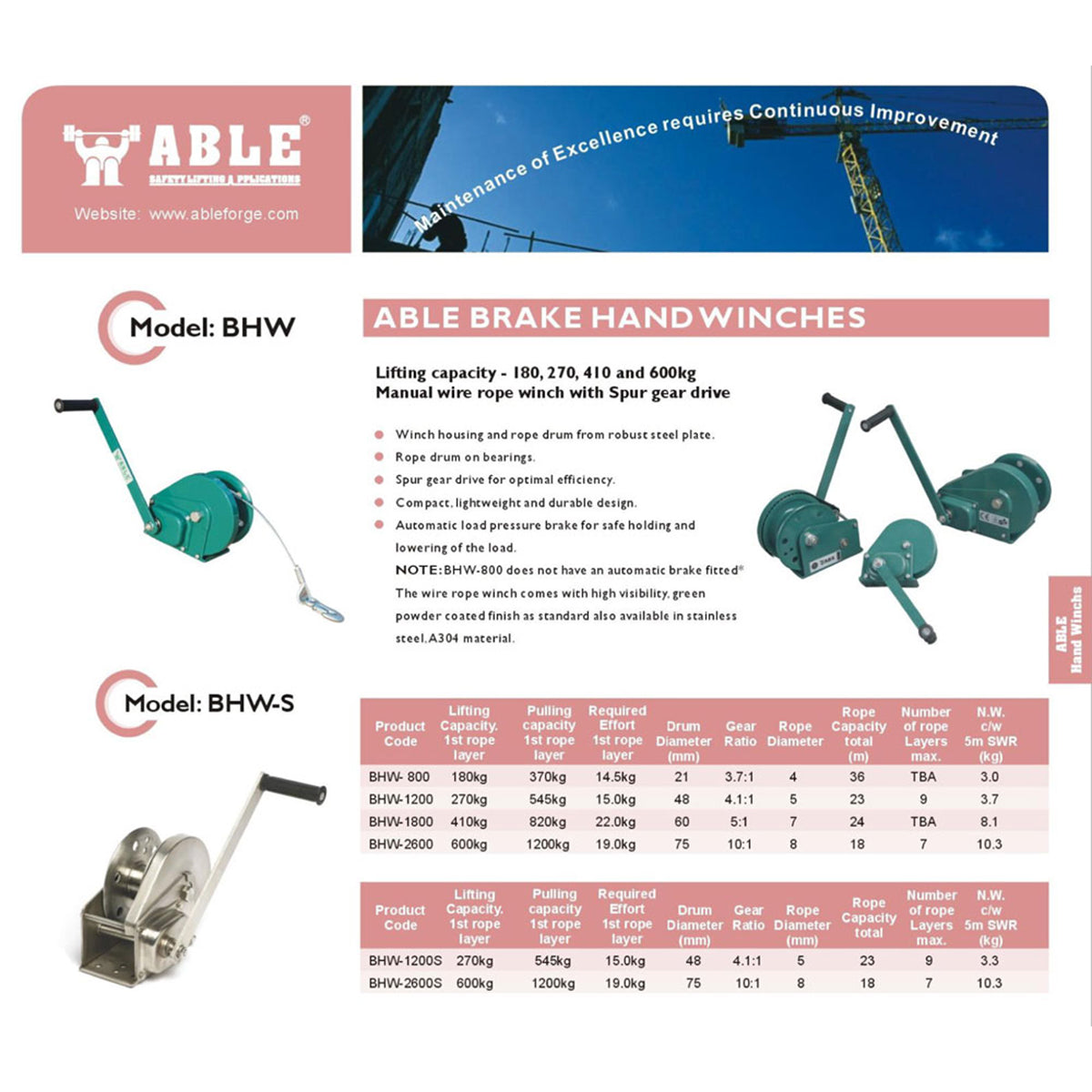

- 01270 kg lifting capacity (545 kg pulling capacity on 1st rope layer)
- 02Automatic load pressure brake holds the load securely in any position
- 03Spur gear drive (41:1 ratio) reduces required hand effort to just 15 kg
- 04Robust steel plate housing
- 05Rope drum on bearings
