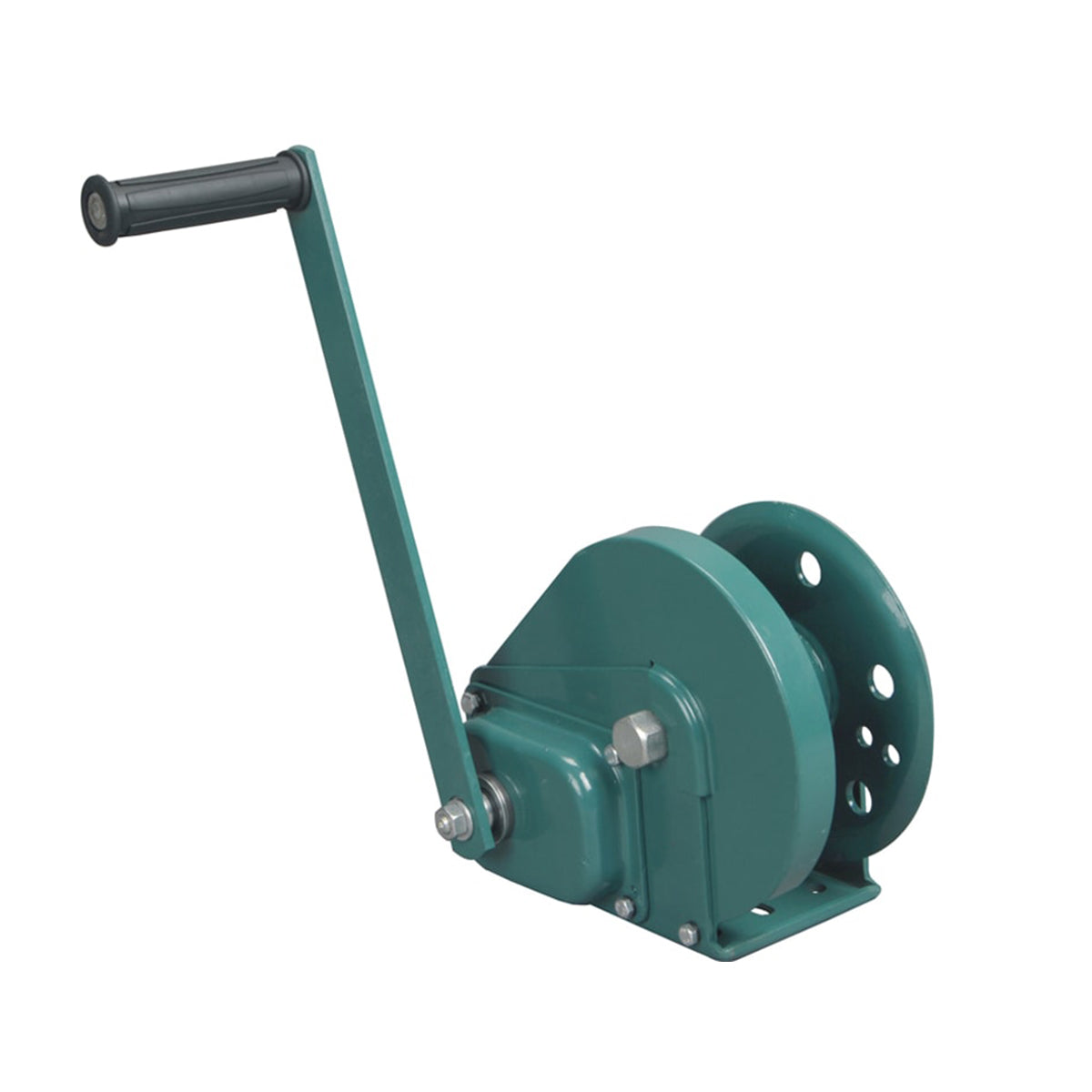

1,800 lbs (410 kg) x 10 m Brake Hand Winch – BHW-1800
Heavy-duty manual brake hand winch with a 410 kg lifting capacity and 10 m rope storage. Spur gear drive, automatic load-pressure brake, and robust steel construction for safe, reliable lifting and lowering.
- Working load limit
- 410 kg
- Pulling capacity
- 820 kg
- Rope diameter
- 7 mm
- Material
- Robust steel plate
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
Easy Winder Ratchet Strap Winder Tool £9.60£8.00
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
The Able BHW-1800 Brake Hand Winch is a compact, robust manual wire rope winch designed for a wide range of lifting, hoisting and pulling applications, including boat raising, vehicle recovery and crane-assist duties. With a 410 kg lifting capacity (820 kg pulling capacity on the first rope layer) and a 5:1 gear ratio, it delivers controlled, efficient operation with minimal hand effort.
An automatic load-pressure brake holds the load securely in any position with no freewheeling, making controlled lowering as safe as lifting. All mechanical components are enclosed within a robust steel housing, protecting the gearing against dust, dirt and moisture ingress.
Supplied as standard with a high-visibility green powder-coated finish for corrosion protection. A rope-to-drum fixing clamp is included. Also available in grade A304 stainless steel (BHW-1800S).
- Winch housing and rope drum manufactured from robust steel plate
- Rope drum mounted on bearings for smooth, low-friction operation
- Spur gear drive for optimal mechanical efficiency
- Automatic load-pressure brake for safe holding and controlled lowering
- All mechanical components enclosed against dust, dirt and rain
- High-visibility green powder-coated finish as standard
- Rope-to-drum fixing clamp included
Key features
- 01410 kg lifting capacity (820 kg pulling capacity
- 02Automatic load-pressure brake holds the load in any position
- 03Robust steel housing and rope drum
- 04Compact
- 05High-visibility green powder-coated finish supplied as standard

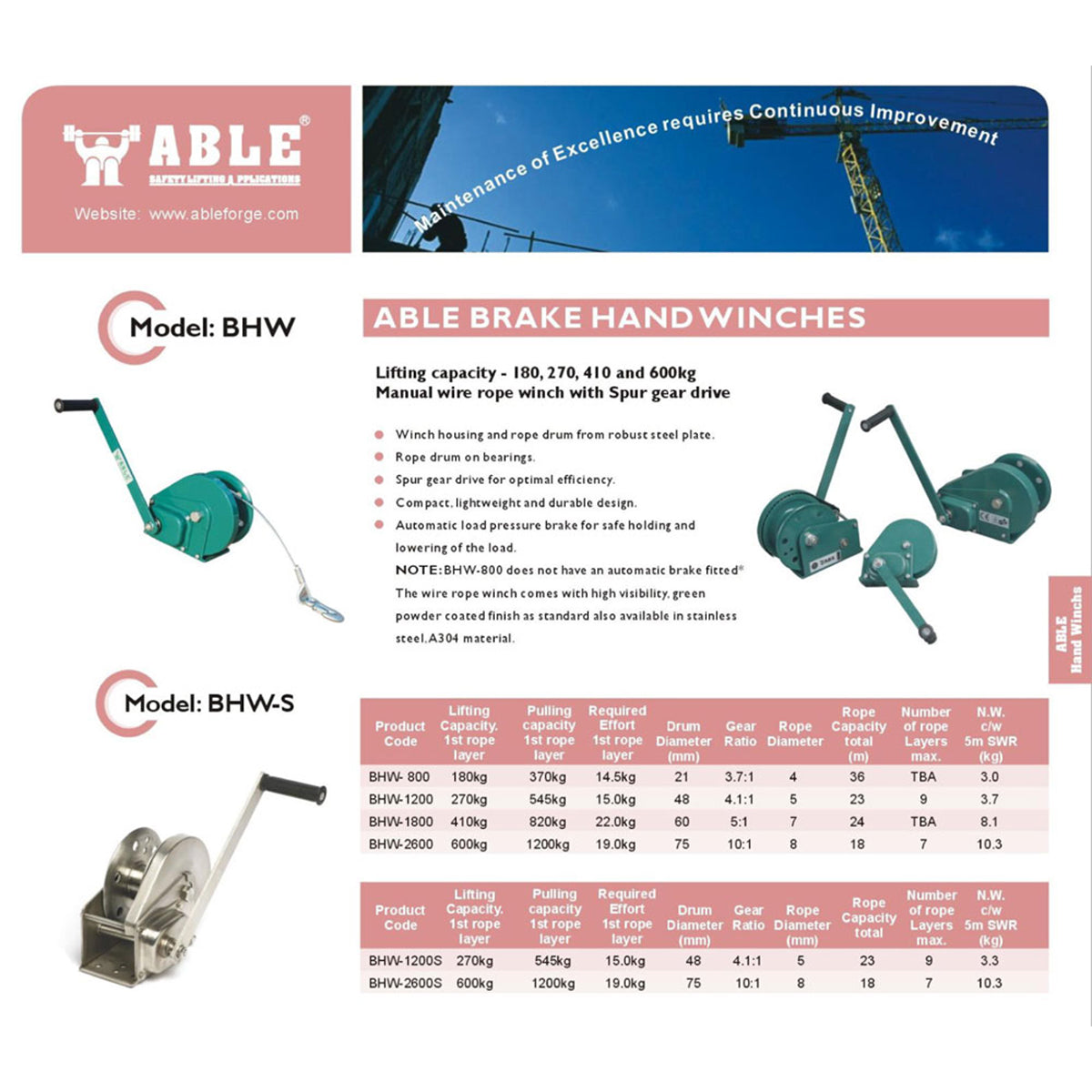

Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
