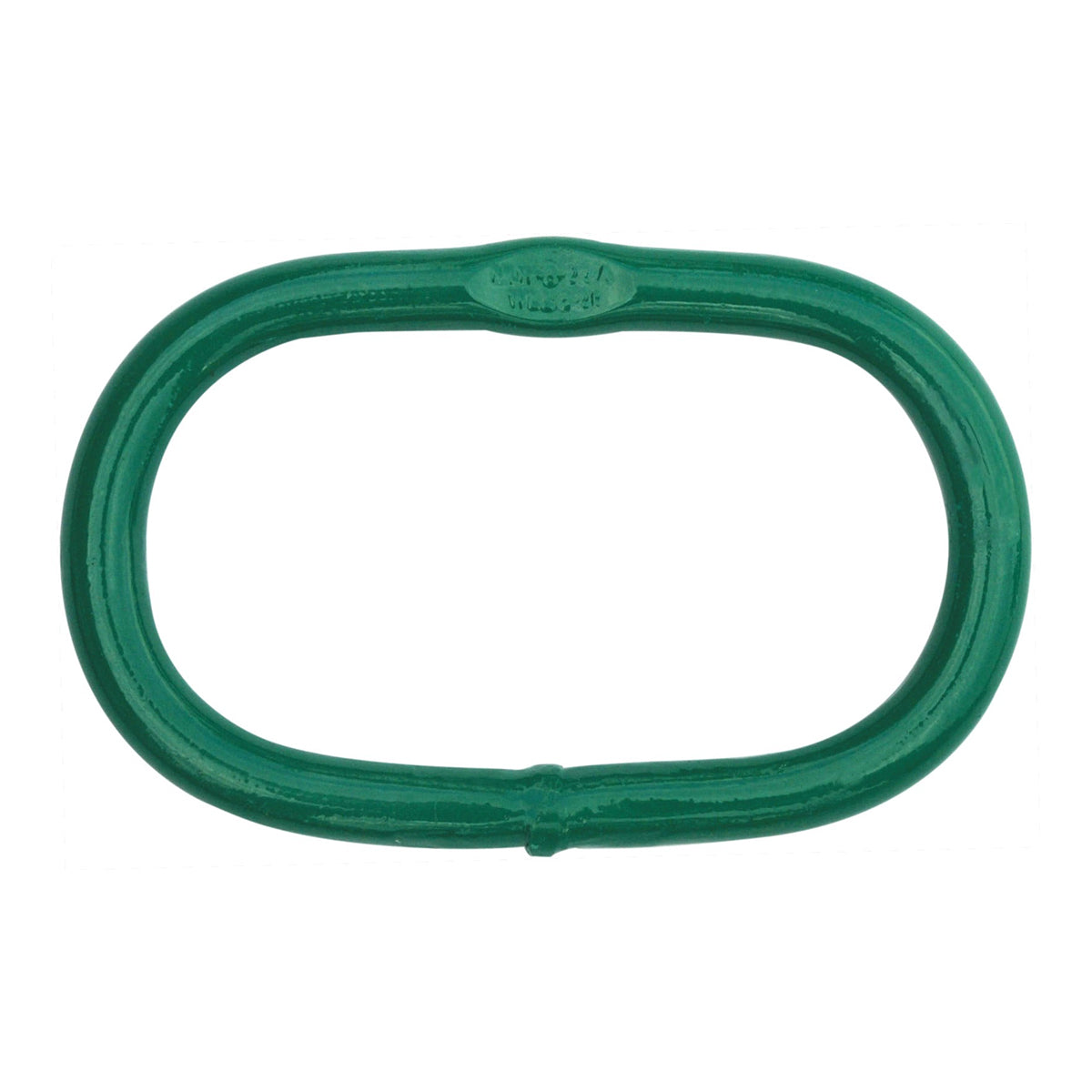

16mm Master Link – Grade 80 Welded (MLW-8-16)
A Grade 80 welded alloy steel master link for 1- or 2-leg chain sling assemblies. Proof tested to 2.5× WLL, individually marked, and supplied with certification.
- Working load limit
- 8,000 kg
- Chain size
- 8 mm
- Grade
- Grade 80
- Material
- High-grade alloy steel, quenched and tempered
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

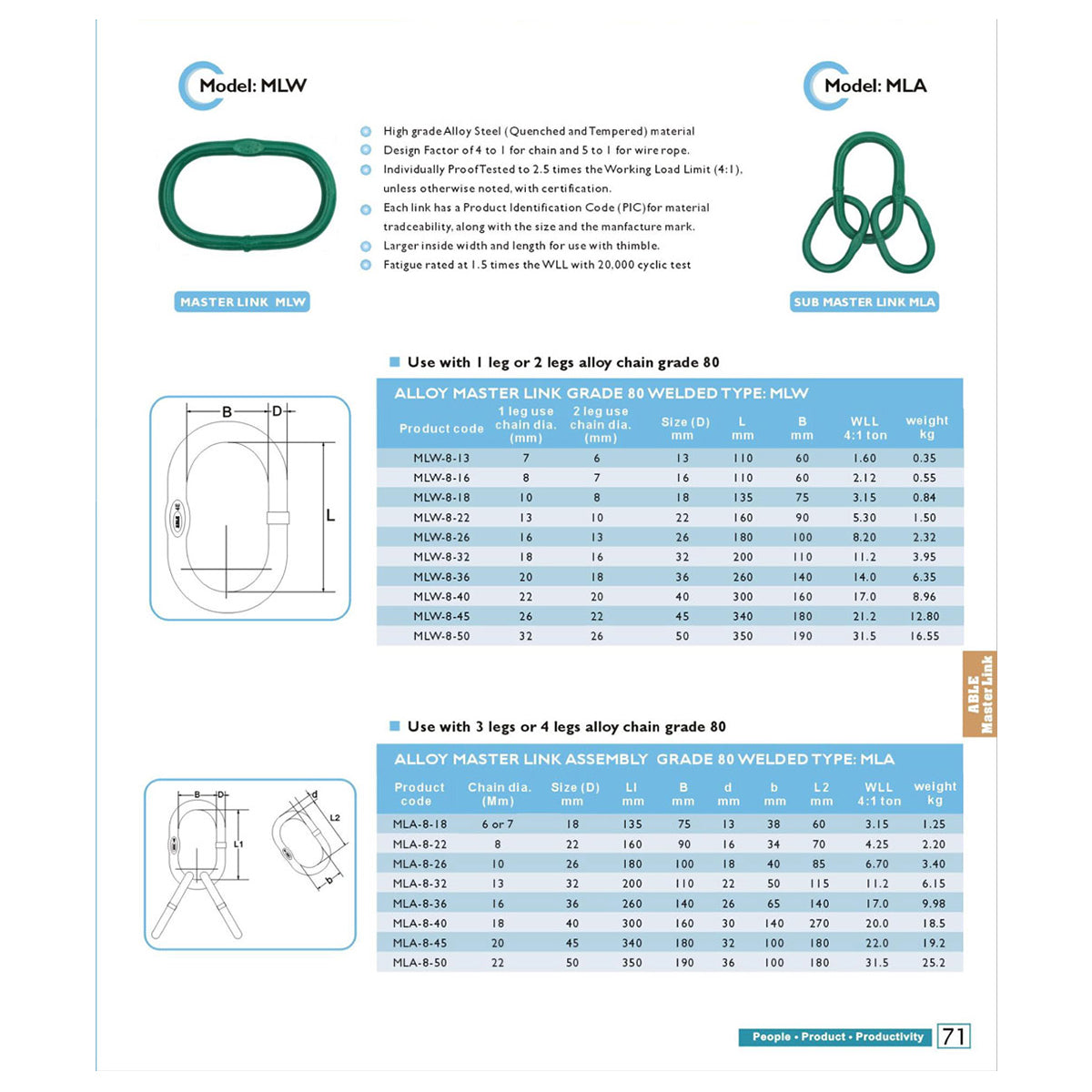

The 16mm Grade 80 Welded Master Link (model MLW-8-16) is a high-integrity lifting component manufactured from quenched and tempered alloy steel. Designed for use with Grade 80 alloy chain, it provides the primary connection point between a chain sling assembly and the crane hook or load attachment point. Its larger internal width and length make it compatible with thimbles, making it well suited to bridle configurations involving wire rope.
Every link is individually proof tested to 2.5 times its Working Load Limit (4:1 design factor) and carries a Product Identification Code (PIC) for full material traceability. Fatigue rated at 1.5 times the WLL with a 20,000-cycle test, these links are built for demanding lifting environments including offshore container lifting sets, construction, and heavy industry.
- Manufactured from high-grade alloy steel, quenched and tempered (Grade 80)
- Proof tested to 2.5× Working Load Limit; design factor 4:1 for chain, 5:1 for wire rope
- Individually marked with brand, WLL, batch number, size, and Product Identification Code (PIC)
- Larger internal width and length for compatibility with thimbles in wire rope bridle applications
- Fatigue rated at 1.5× WLL with 20,000-cycle test; certification supplied
Key features
- 01Grade 80 alloy steel
- 02Proof tested
- 03Full traceability
- 04Thimble compatible
- 05Certified
Specification
