13mm Grade 80 Alloy Master Link (MLW-8-13) – WLL 1.60 Tonne
A Grade 80 quenched and tempered alloy steel welded master link for connecting 1- or 2-leg lifting chain assemblies. Proof tested to 2.5× WLL and supplied with certification.
- Working load limit
- 1,600 kg
- Chain size
- 7 mm
- Webbing width
- 60 mm
- Grade
- Grade 80
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

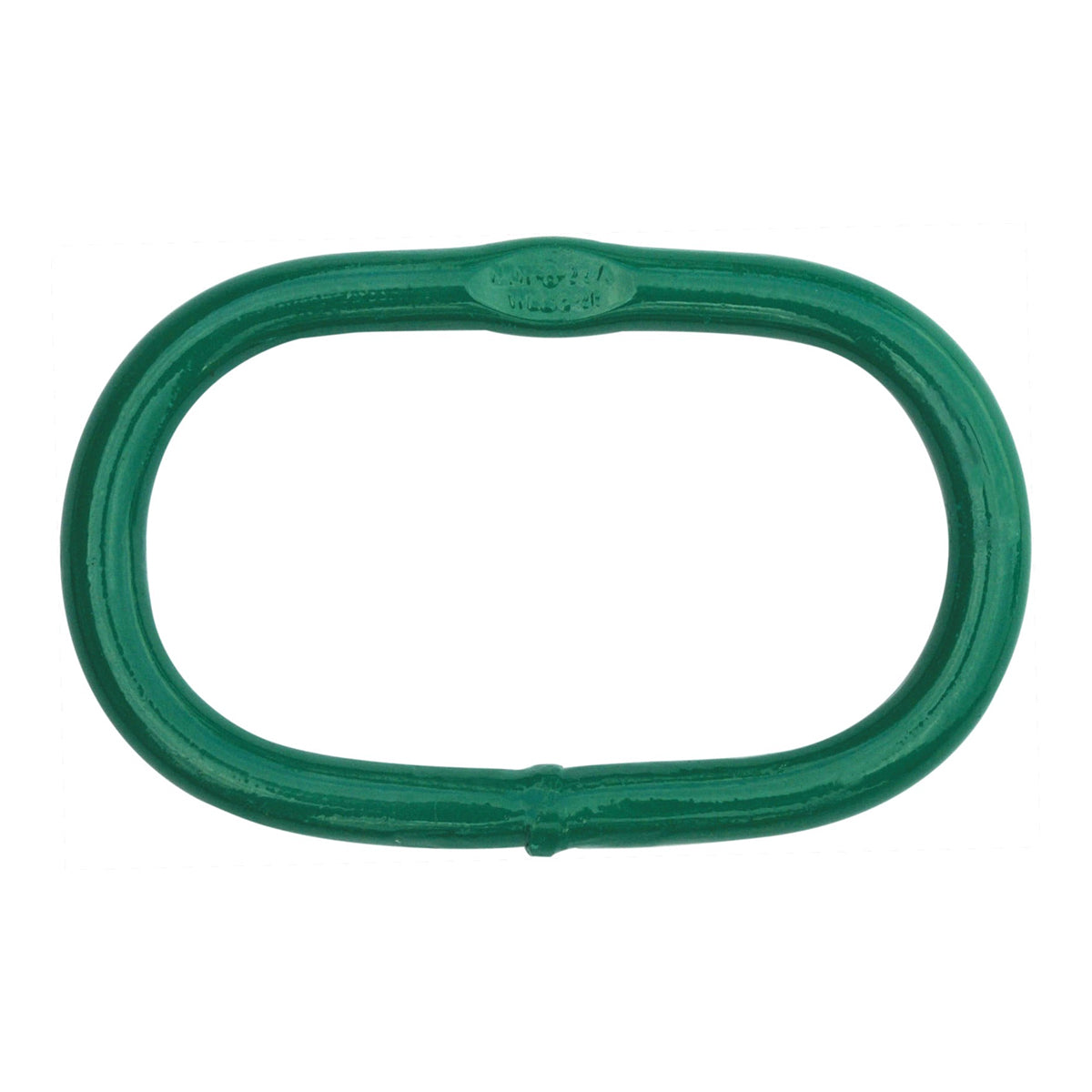

This Grade 80 alloy steel master link (model MLW-8-13) is an essential component for chain sling assemblies, connecting lifting chains or wire rope slings to a load or hook. Manufactured from high-grade quenched and tempered alloy steel, it is individually proof tested to 2.5 times the Working Load Limit and supplied with certification as standard.

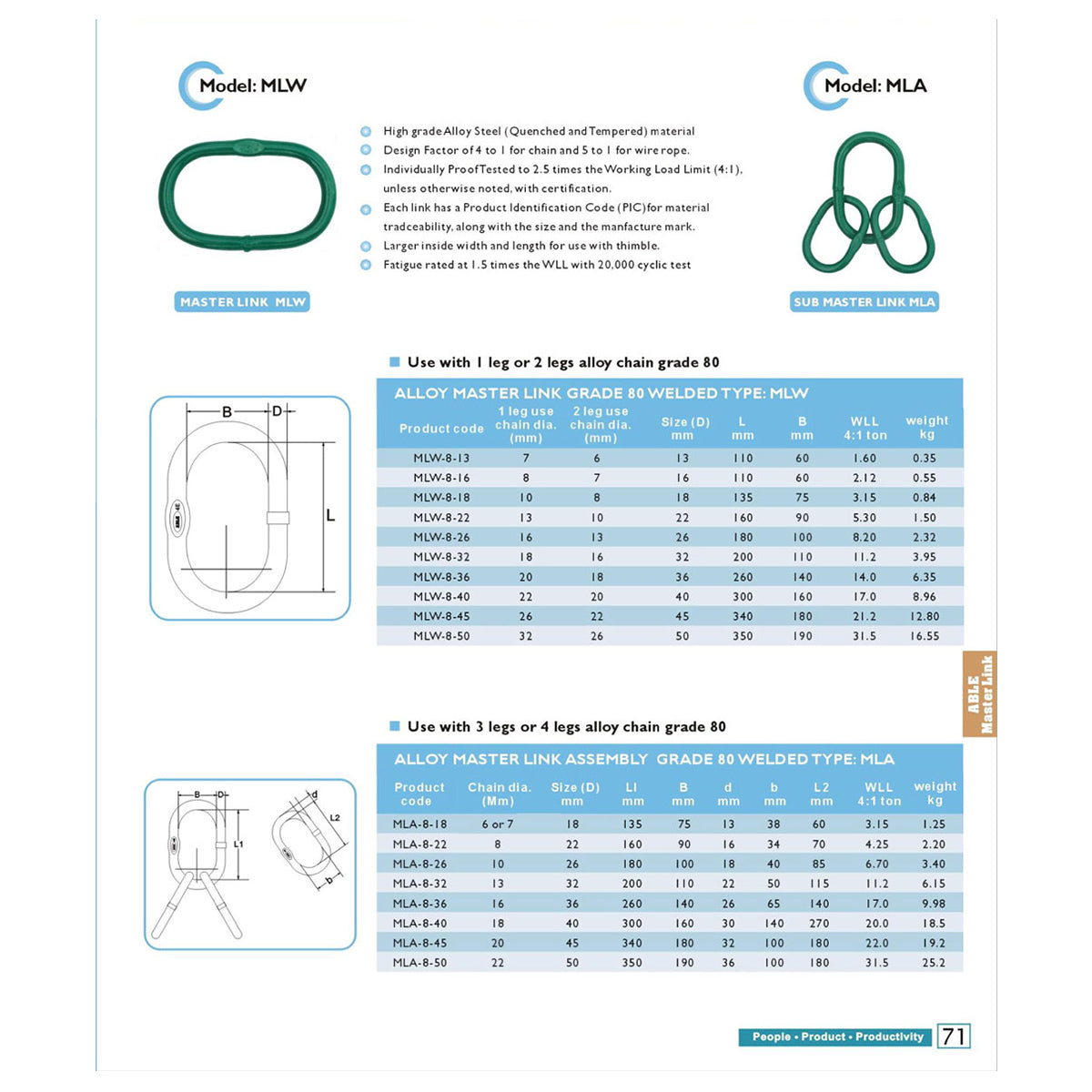

The oblong welded design features a larger internal width and length to accommodate thimbles for wire rope use in bridle configurations. Each link carries a Product Identification Code (PIC) for full material traceability, along with the size and manufacturer's mark.
- High-grade alloy steel, quenched and tempered for maximum strength and durability
- Grade 80 rated, suitable for use with 7 mm (1-leg) or 6 mm (2-leg) alloy chain
- Individually proof tested to 2.5× Working Load Limit (WLL: 1.60 tonne at 4:1 design factor)
- Fatigue rated at 1.5× WLL with 20,000 cyclic test
- Product Identification Code (PIC) stamped for full material traceability
- Larger internal width and length for compatibility with thimbles and wire rope
- Certification provided as standard
Key features
- 01Grade 80 alloy steel
- 02Working load limit 160 tonne
- 03Proof tested to 25× WLL
- 04Fatigue rated
- 05Full traceability
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
