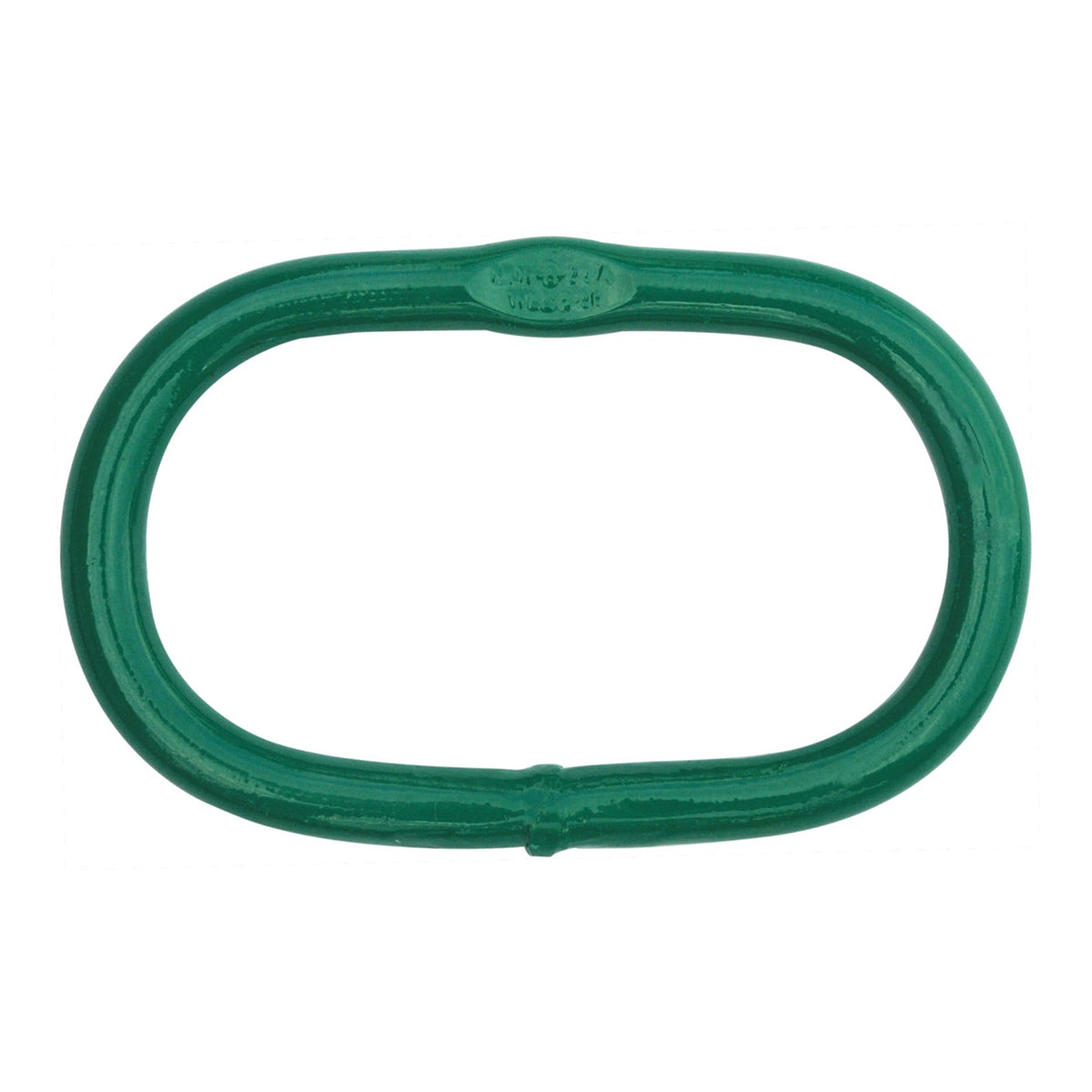

10mm Master Link – Grade 80 Welded (MLW-8-18)
A Grade 80 alloy steel welded master link for 10mm single-leg or 8mm two-leg lifting chain assemblies. Proof tested to 2.5× WLL with a 3,150 kg working load limit.
- Working load limit
- 3,150 kg
- Chain size
- 10 mm
- Grade
- Grade 80
- Material
- High-grade alloy steel, quenched and tempered
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

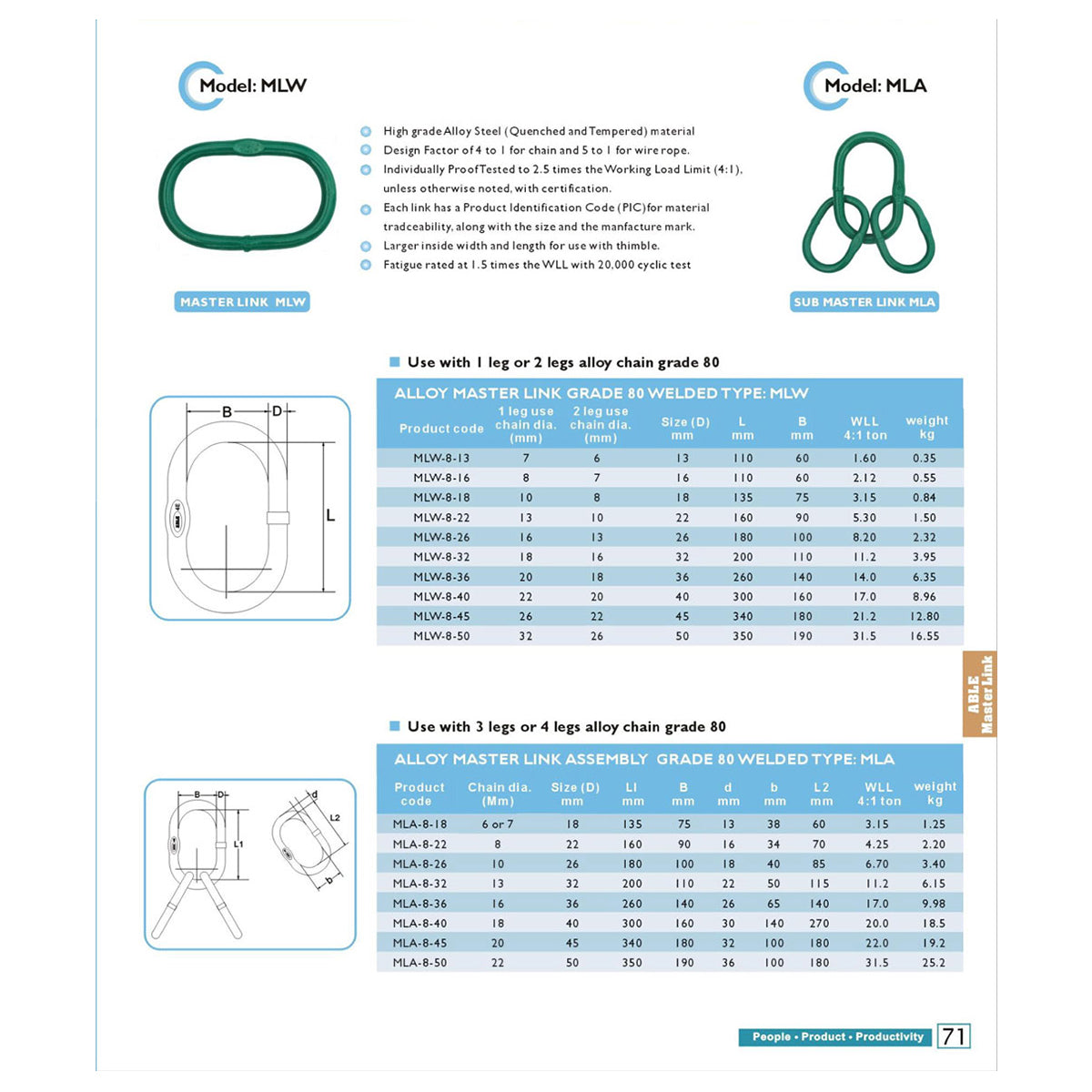

This Grade 80 welded master link (model MLW-8-18) is an essential component for professional lifting and rigging applications. Manufactured from high-grade quenched and tempered alloy steel, it provides a reliable connection point between chain slings and the lifting hook or load, including offshore container lifting sets and multi-leg bridle configurations.
Each link carries a Product Identification Code (PIC) for full material traceability, along with the size and manufacturer's mark. The oblong profile offers a generous internal width and length, making it compatible with thimbles for use with larger wire ropes. Supplied with certification as standard.
- High-grade alloy steel, quenched and tempered, Grade 80
- Working Load Limit (WLL): 3,150 kg (4:1 design factor for chain; 5:1 for wire rope)
- Individually proof tested to 2.5× the Working Load Limit
- Fatigue rated at 1.5× WLL with 20,000 cyclic test
- PIC marking for full material traceability; supplied with certification
- Larger inside width and length for use with thimbles in bridle configurations
Key features
- 01Grade 80 alloy steel
- 023,150 kg working load limit
- 03Proof tested to 25× WLL
- 04Full traceability
- 05Thimble-compatible profile
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
