1500kg Mechanical Steel Jack — HVP-1.5
A heavy-duty mechanical rack-and-pinion steel jack with a 1.5-tonne safe working load. Ideal for lifting, bracing and supporting loads in construction, agriculture and rail applications.
- Working load limit
- 1.5 kg
- Material
- CRS (cold-rolled steel) plate
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
Easy Winder Ratchet Strap Winder Tool £9.60£8.00
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

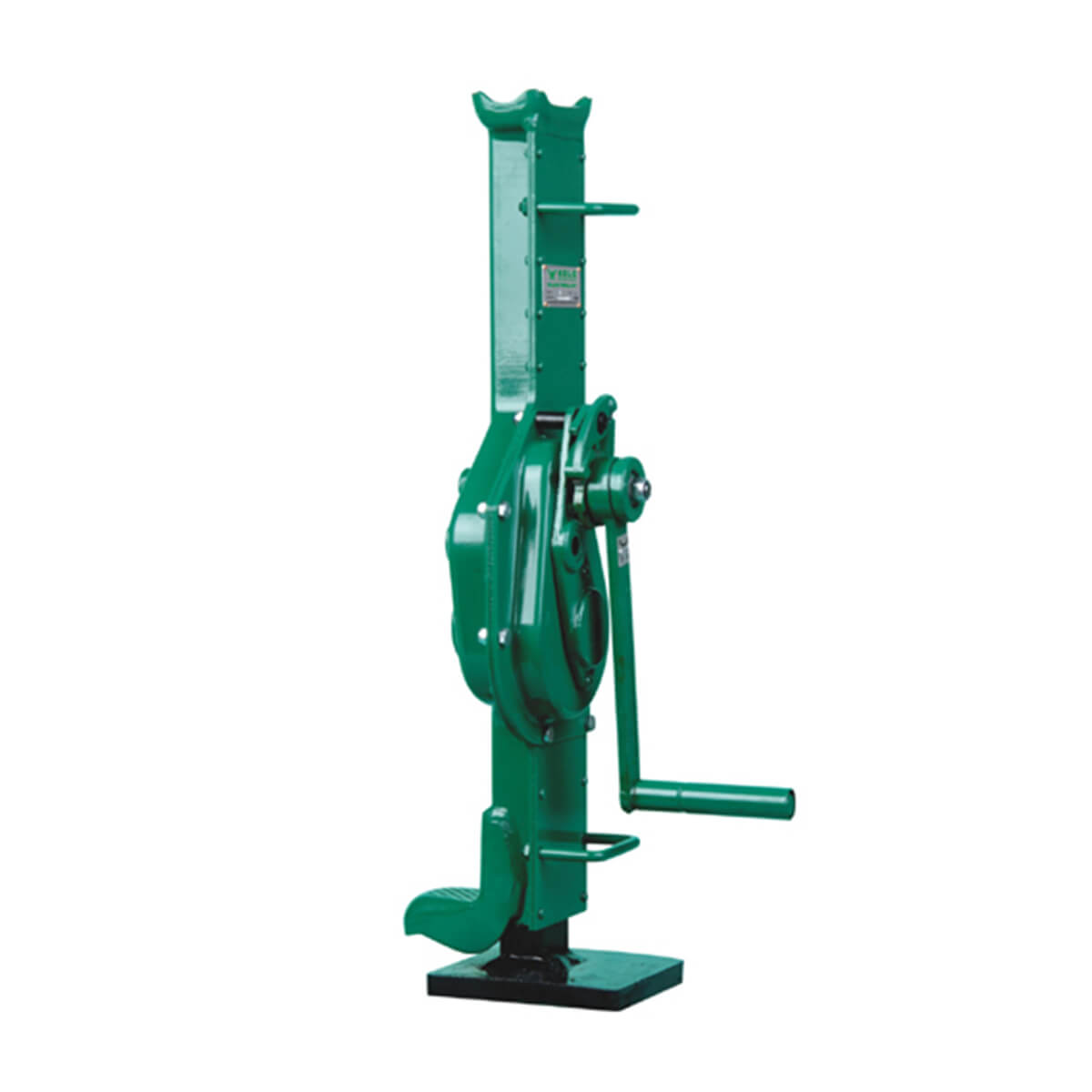

The ABLE HVP-1.5 is a heavy-duty mechanical steel jack designed to lift, brace and support loads of up to 1.5 tonnes. Built from high-quality CRS (cold-rolled steel) plate with carburised alloy steel gears, it delivers reliable performance in demanding environments including construction, agriculture and rail industries.
The rack-and-pinion mechanism features a double pawl brake system for quick, safe braking, while low gearing tolerance ensures smooth, jerk-free transmission. Less than 25 kg of turning force is required to raise the full rated load, making it highly efficient and easy to operate by a single person.
- Double pawl brake system, quick braking, safe and reliable
- Low gearing tolerance for smooth, jerk-free transmission
- Less than 25 kg turning force required to lift full rated capacity
- Sturdy CRS plate body with carburised alloy steel gears
- Suitable for construction, agriculture and rail industry use
Key features
- 01Safe working load 15 tonnes
- 02Double pawl brake system
- 03Easy to operate
- 04Smooth transmission
- 05Quality construction

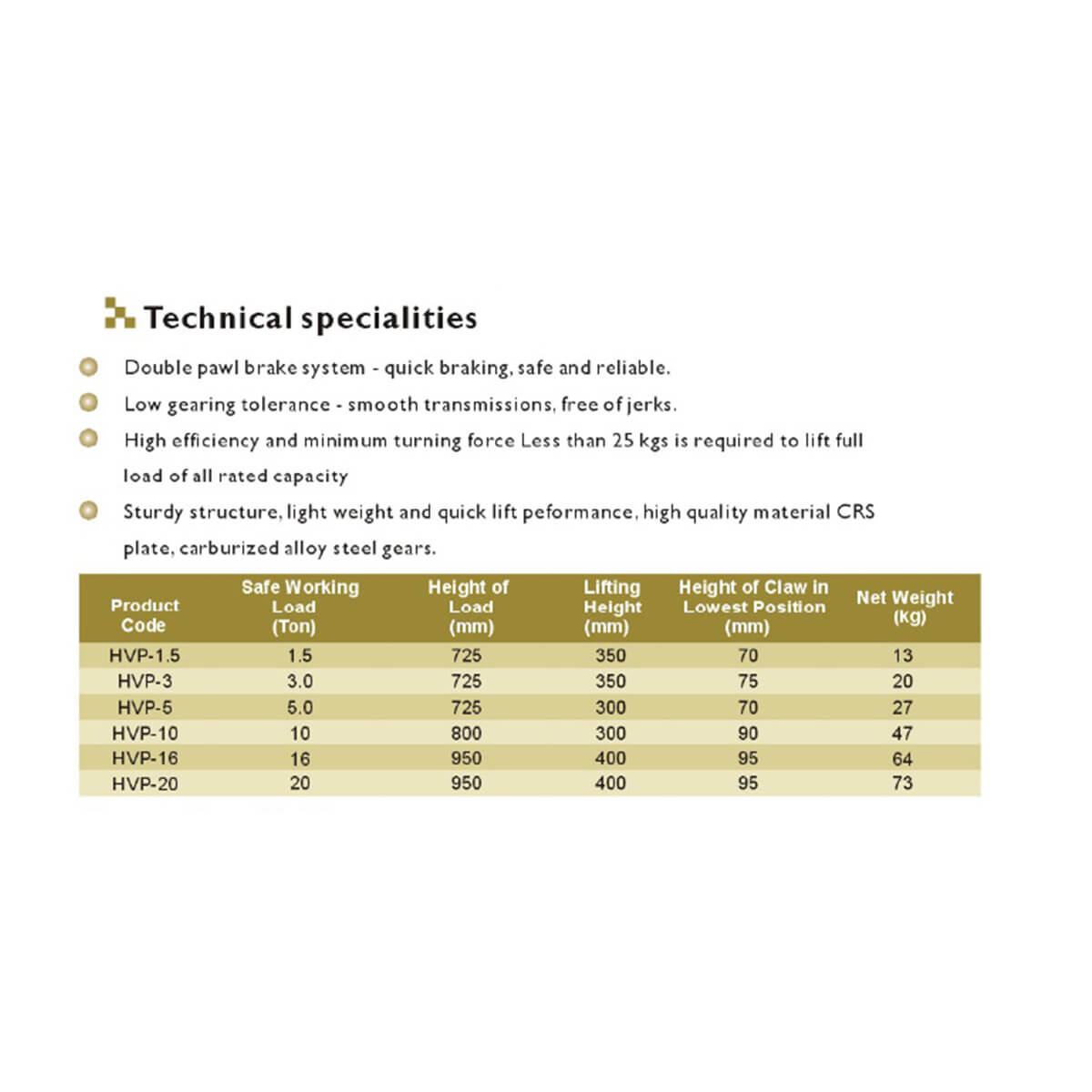

Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
