100kg Permanent Magnetic Lifter – ABLE PML-100
The ABLE PML-100 is a 100 kg rated permanent magnetic lifter for lifting flat and round steel, engine parts, and moulds, no electricity required, one-handed operation.
- Working load limit
- 100 kg
- Material
- Ferromagnetic steel (flat and round sections)
- Safety factor
- 3
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

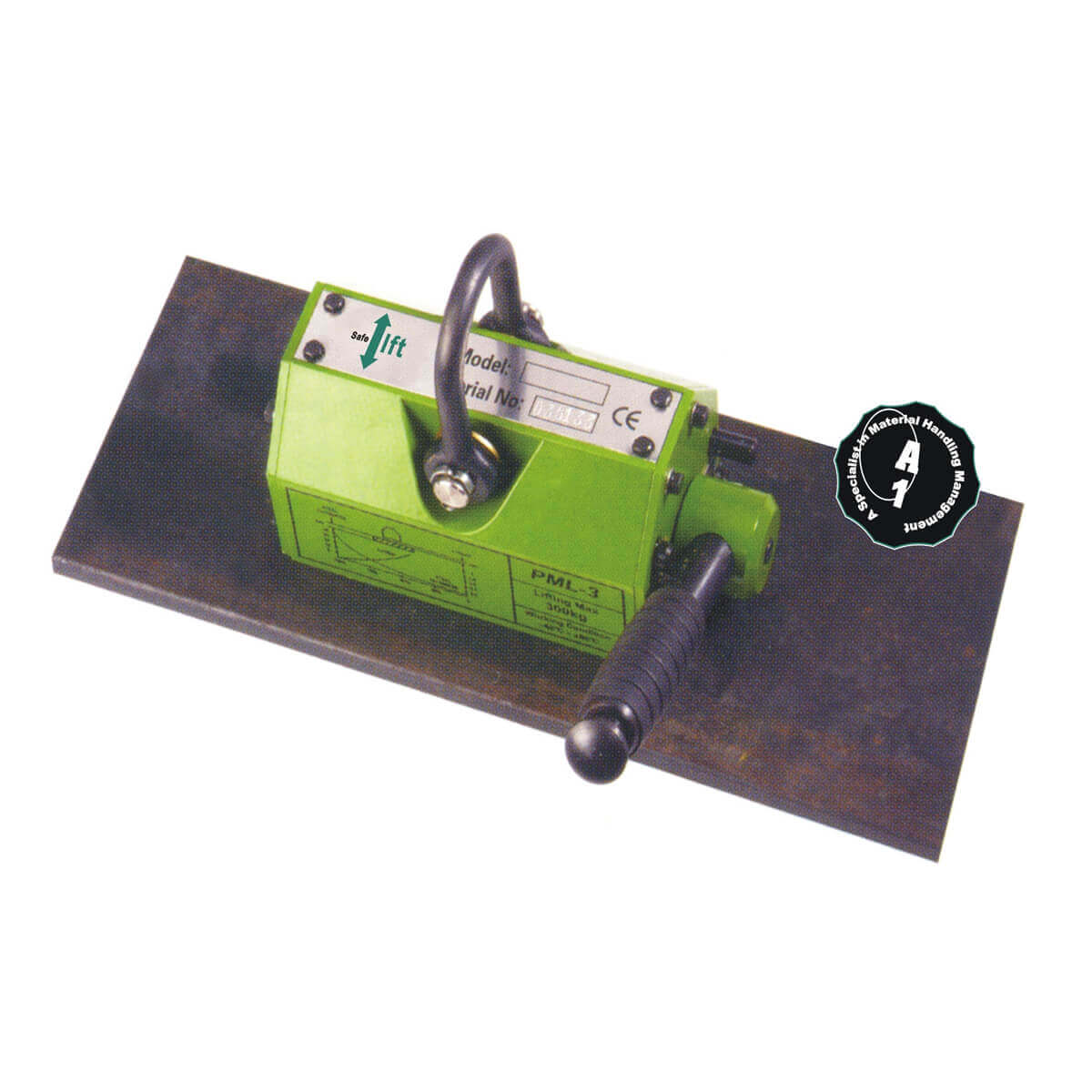

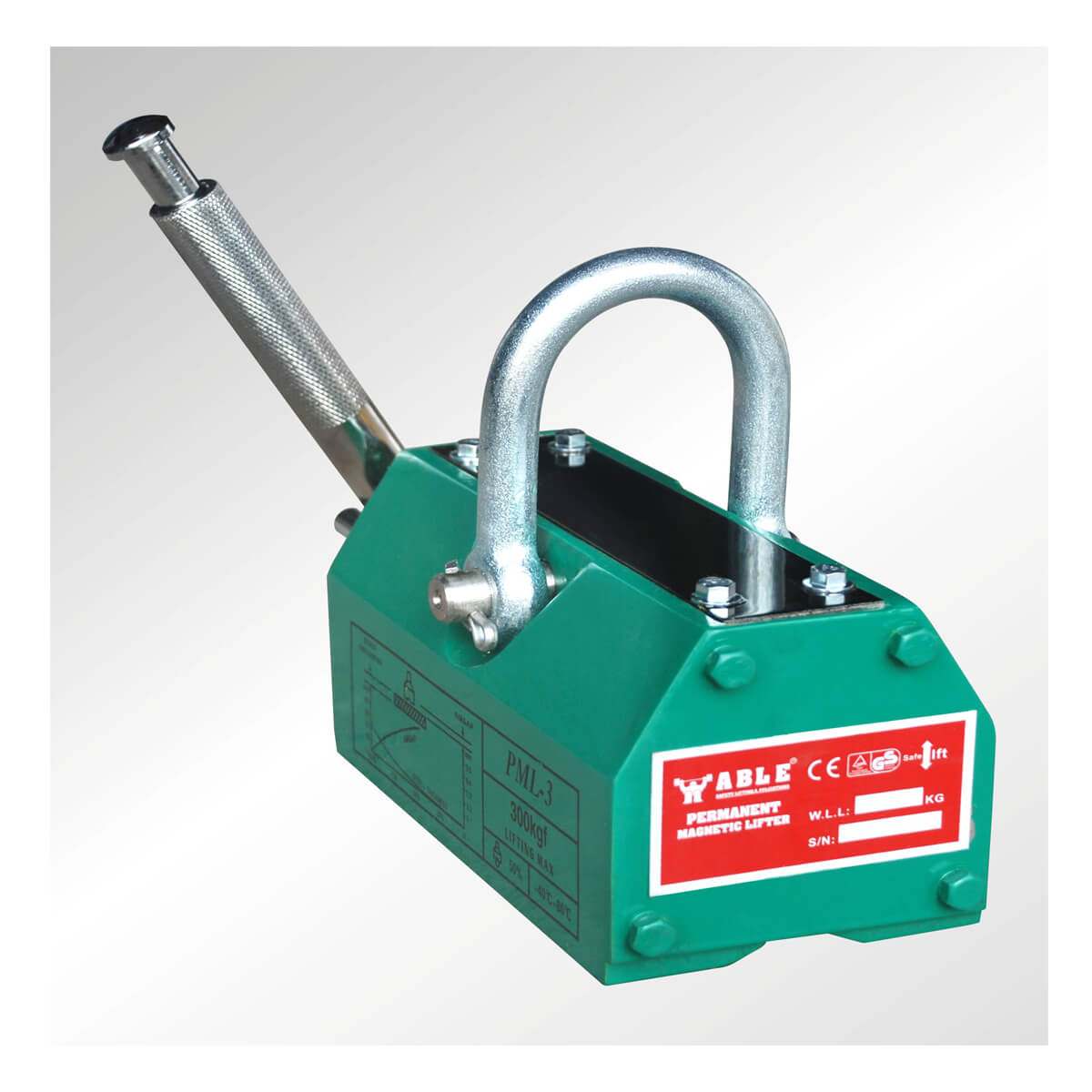

The ABLE PML-100 Permanent Magnetic Lifter is a robust, no-power lifting solution designed for the safe transportation and handling of steel plate, engine parts, semi-manufactured goods, and moulds across a wide range of industrial environments. Simply rotate the handle to engage or release the powerful permanent magnet, no slings, clamps, or holding devices required, eliminating the risk of surface damage to lifted goods.
Key Features
- Rated lifting capacity of 100 kg flat / 30 kg round, proof load tested to 300 kg
- Highest pulling force is 3.0 times greater than the rated lifting capacity for a substantial safety margin
- Requires no electricity to operate; less than 1% residual magnetism once switched off
- Simple switch and safety button allow for confident one-handed operation
- Operating temperature range: -40 °C to +80 °C
- Compact and lightweight at just 2.9 kg, making it easy to carry and deploy on site
- CE marked; part of the ABLE PML range, available in capacities up to 5,000 kg

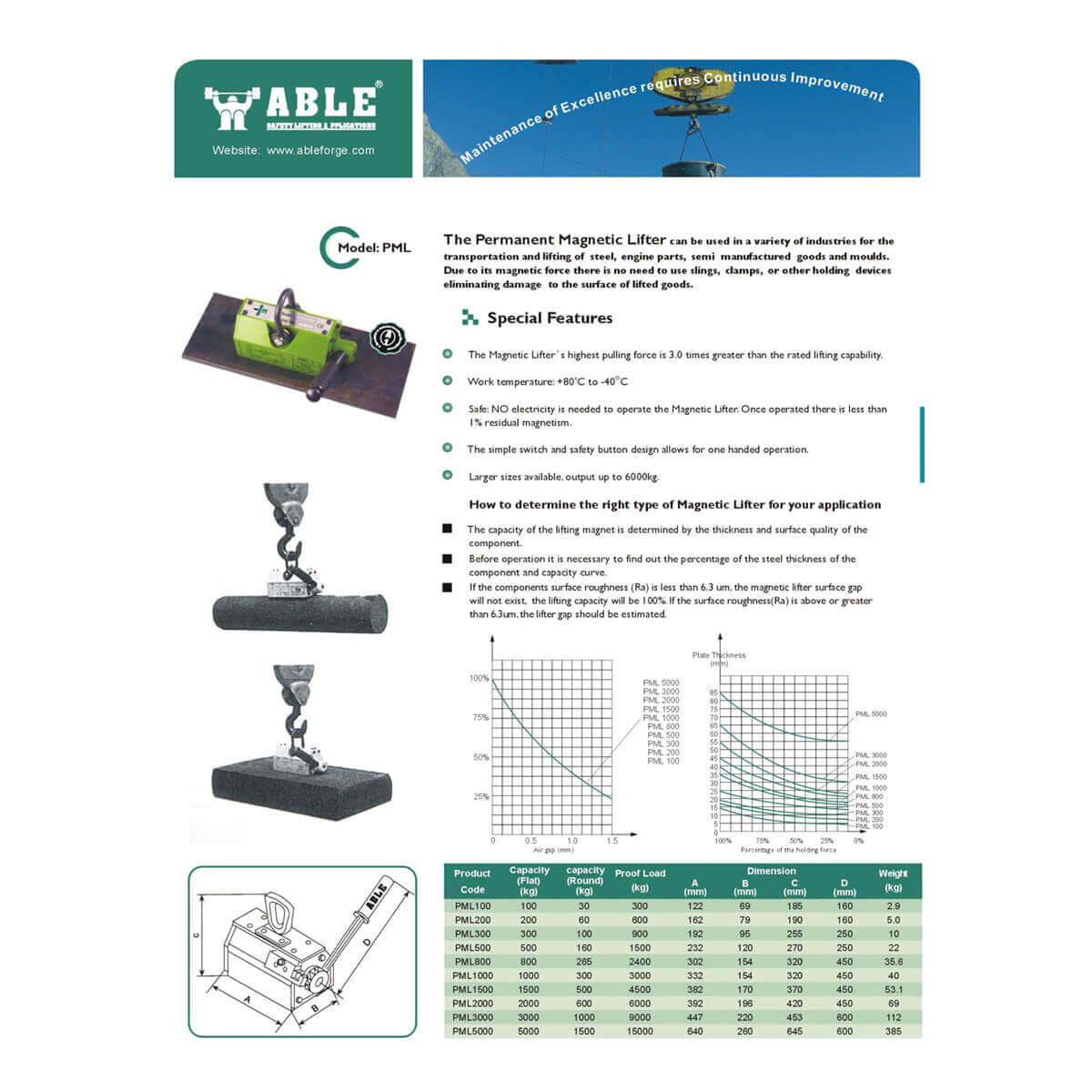

Lifting capacity is influenced by the thickness and surface quality of the workpiece. Where surface roughness (Ra) is less than 6.3 µm, full rated capacity is achieved. Refer to the capacity curve supplied with the unit for thinner sections or rougher surfaces.
Key features
- 01100 kg flat / 30 kg round rated capacity
- 02No electricity needed
- 0330× safety factor
- 04One-handed operation
- 05Lightweight at 29 kg and CE marked
Specification
