10,000 kg Mechanical Steel Jack — HVP-10
A heavy-duty mechanical ratchet jack with a 10-tonne safe working load, built from CRS plate and carburised alloy steel gears. Ideal for lifting, bracing and supporting loads in construction, agriculture and rail industries.
- Working load limit
- 10,000 kg
- Material
- CRS (cold-rolled steel) plate
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
Easy Winder Ratchet Strap Winder Tool £9.60£8.00
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

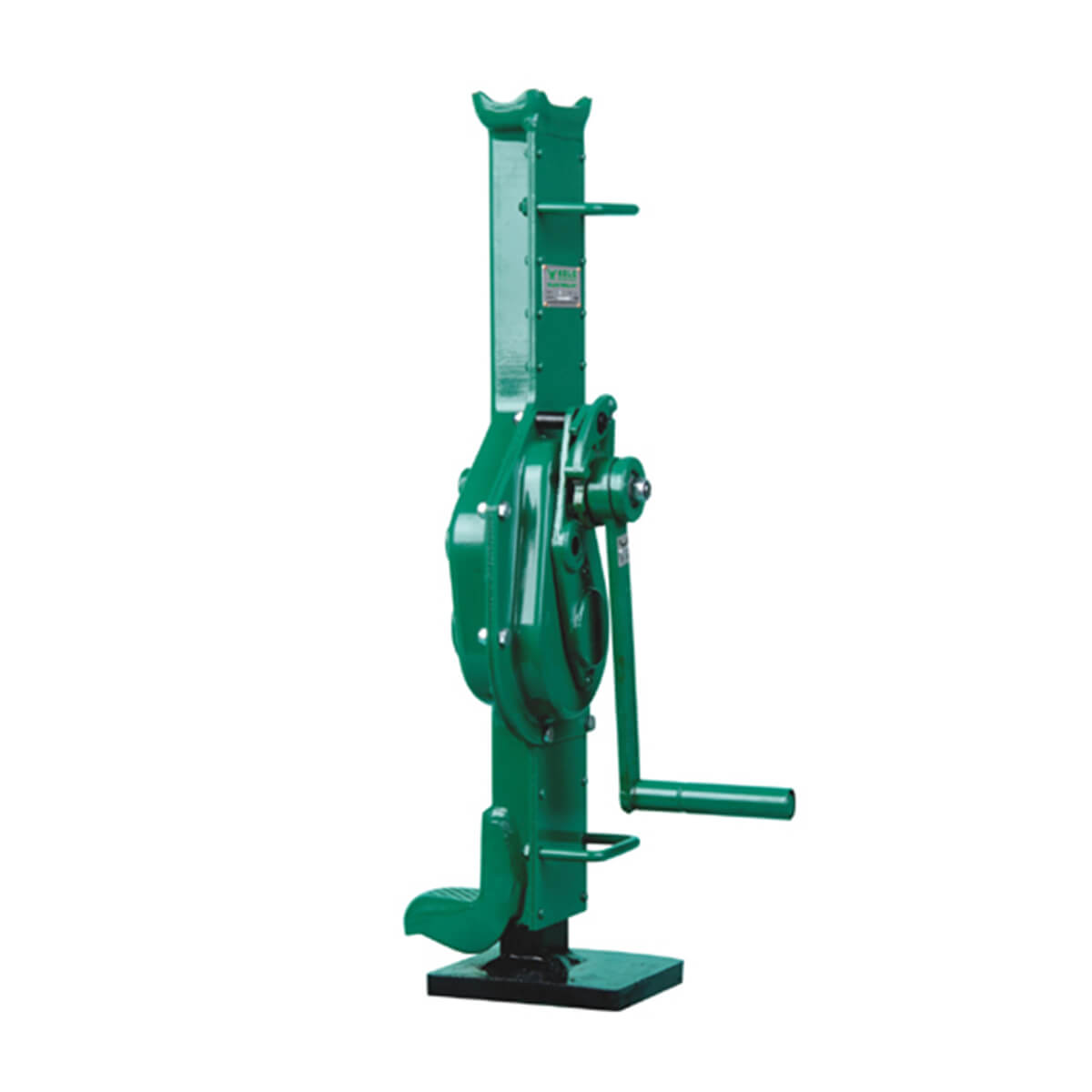

ABLE HVP-10 Mechanical Steel Jack, 10,000 kg / 10 Tonne
The ABLE HVP-10 is a robust mechanical ratchet (claw) jack designed to lift, brace and support heavy loads across construction, agriculture, rail and industrial applications. Built from high-quality cold-rolled steel (CRS) plate with carburised alloy steel gears, it delivers reliable performance under demanding conditions.
A double pawl brake system provides instant, secure braking at any point in the lift, while the low-gearing tolerance ensures smooth, jerk-free operation. Thanks to its high-efficiency gear train, a turning force of less than 25 kg is all that is needed to raise the full rated load, reducing operator fatigue on long jobs.

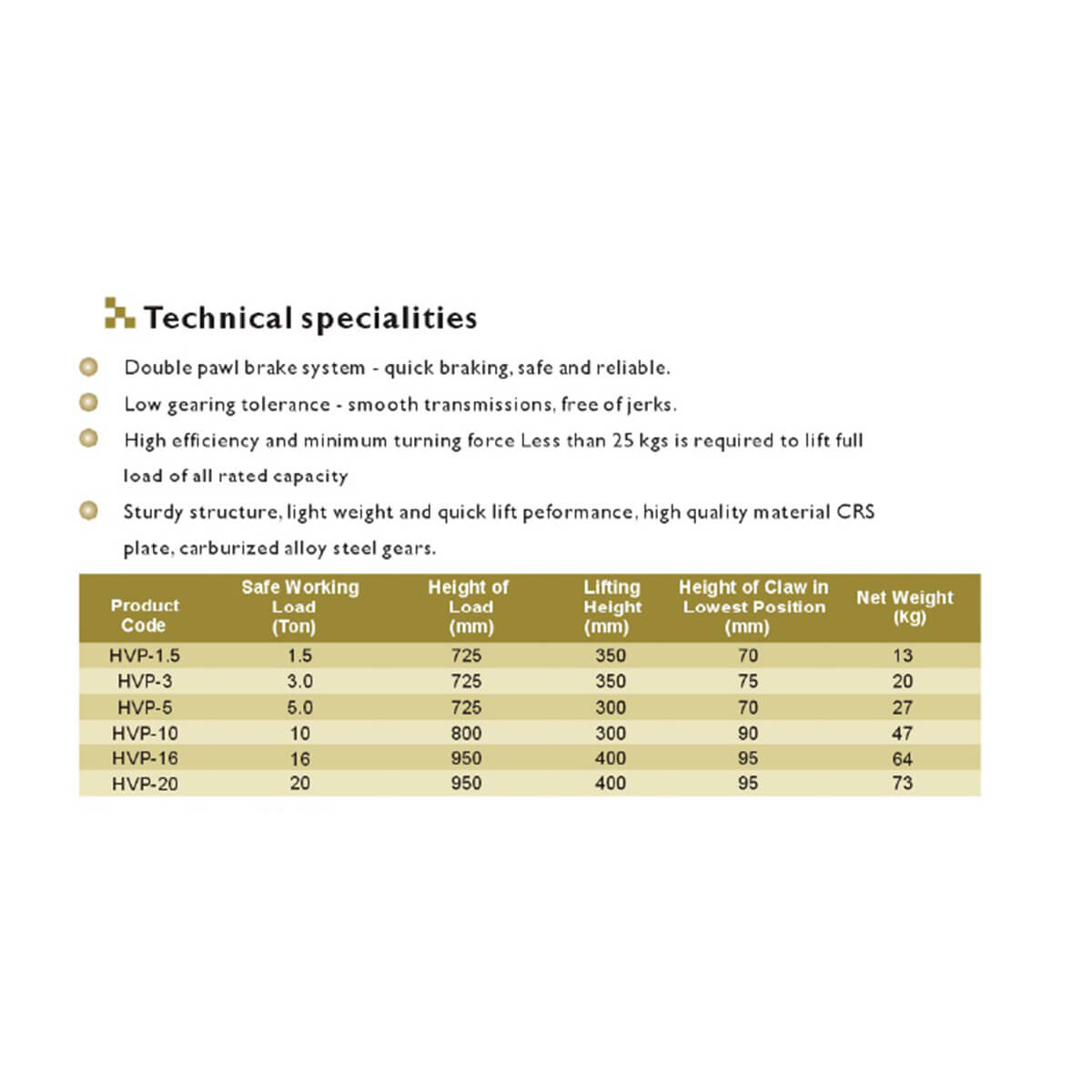

- Safe Working Load: 10 tonnes (10,000 kg)
- Height of Load: 800 mm
- Lifting Height: 300 mm
- Height of Claw in Lowest Position: 90 mm
- Net Weight: 47 kg
- Double pawl brake system, quick, safe and reliable braking
- Low gearing tolerance, smooth transmission, free of jerks
- CRS plate body with carburised alloy steel gears for durability
- Minimum turning force, less than 25 kg required to lift full rated capacity
Available in a full range of capacities from 1.5 t to 20 t. Please see the other listings in the ABLE HVP range for alternative sizes.
Key features
- 0110-tonne safe working load
- 02Double pawl brake system
- 03Low effort operation
- 04Durable construction
- 05Generous lift range
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
