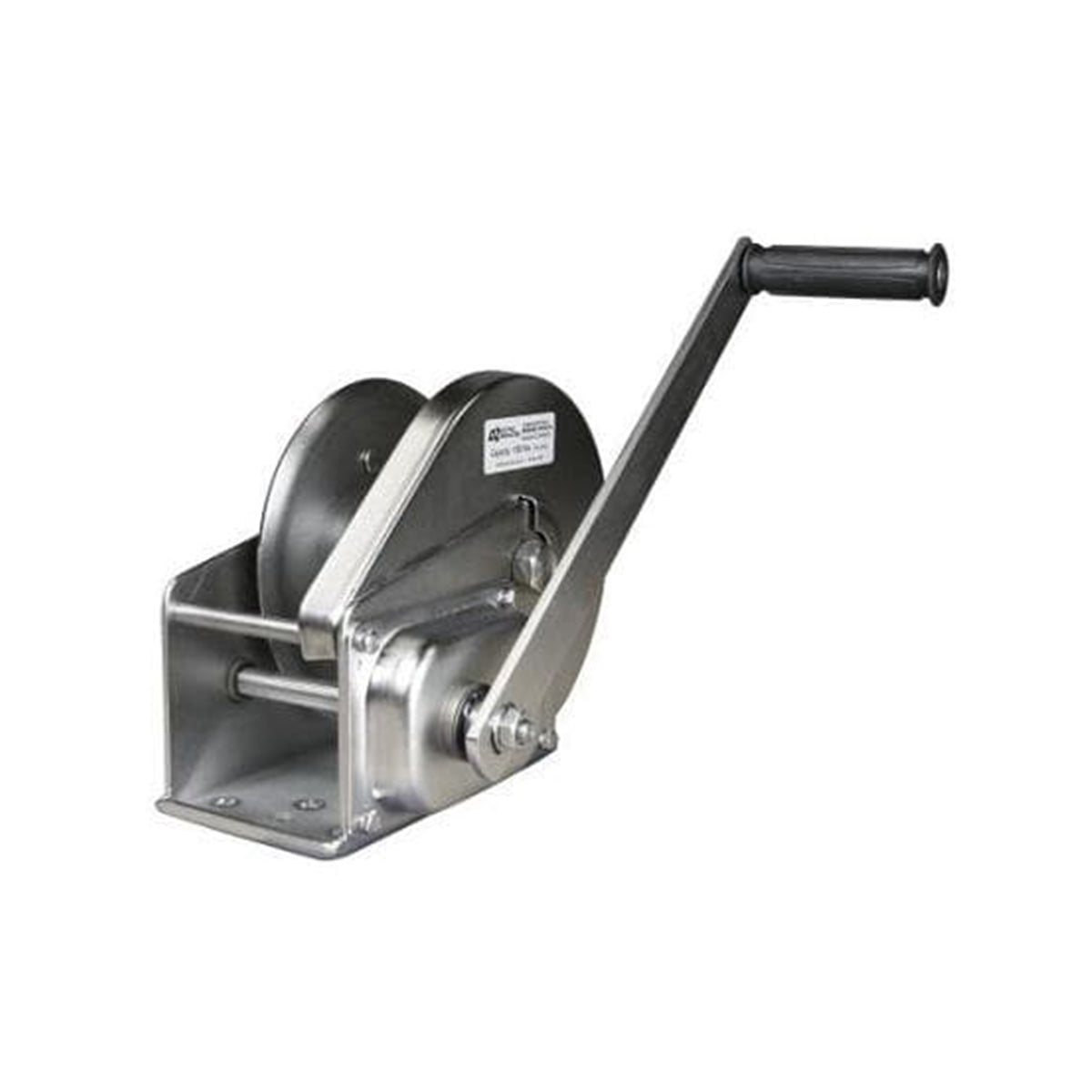

1,200 lbs x 8 m Stainless Steel Brake Hand Winch – BHW-1200S
A heavy-duty stainless steel manual brake hand winch with a 270 kg (1,200 lbs) lifting capacity and 8 m rope. Features a spur gear drive and automatic load pressure brake for safe, controlled lifting.
- Working load limit
- 270 kg
- Pulling capacity
- 545 kg
- Rope diameter
- 5 mm
- Material
- Stainless steel, A304
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
Easy Winder Ratchet Strap Winder Tool £9.60£8.00
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
The Able BHW-1200S is a stainless steel manual brake hand winch designed for a wide range of lifting, hoisting, and pulling applications, including boat launching, vehicle recovery, and general industrial use. Built from A304 stainless steel, it offers excellent corrosion resistance while maintaining the rugged durability expected of professional lifting equipment.
The automatic load pressure brake holds the load securely in any position with no freewheeling, making it significantly safer to operate than basic ratchet winches. Power is transmitted via a spur gear drive for smooth, efficient operation, and the rope drum runs on bearings for reduced effort under load.
- Lifting capacity: 270 kg (1,200 lbs) on the first rope layer
- Pulling capacity: 545 kg on the first rope layer
- Required effort (1st rope layer): 15.0 kg
- Gear ratio: 4.1:1
- Drum diameter: 48 mm
- Rope diameter: 5 mm
- Rope capacity: 23 m total
- Number of rope layers: 9 maximum
- Net weight (c/w 5 m SWR): 3.3 kg
- Winch housing and rope drum constructed from robust stainless steel plate
- Rope drum mounted on bearings for smooth, low-effort operation
- Automatic load pressure brake for safe holding and controlled lowering
- Compact and lightweight design suitable for permanent or temporary installation
Supplied as standard in a stainless steel (A304) finish. A rope-to-drum fixing clamp is included.
Key features
- 01270 kg (1,200 lbs) lifting capacity on the first rope layer
- 02Automatic load pressure brake holds the load in any position
- 03Stainless steel (A304) construction
- 04Spur gear drive (41:1 ratio)
- 0523 m total rope capacity (5 mm rope diameter
