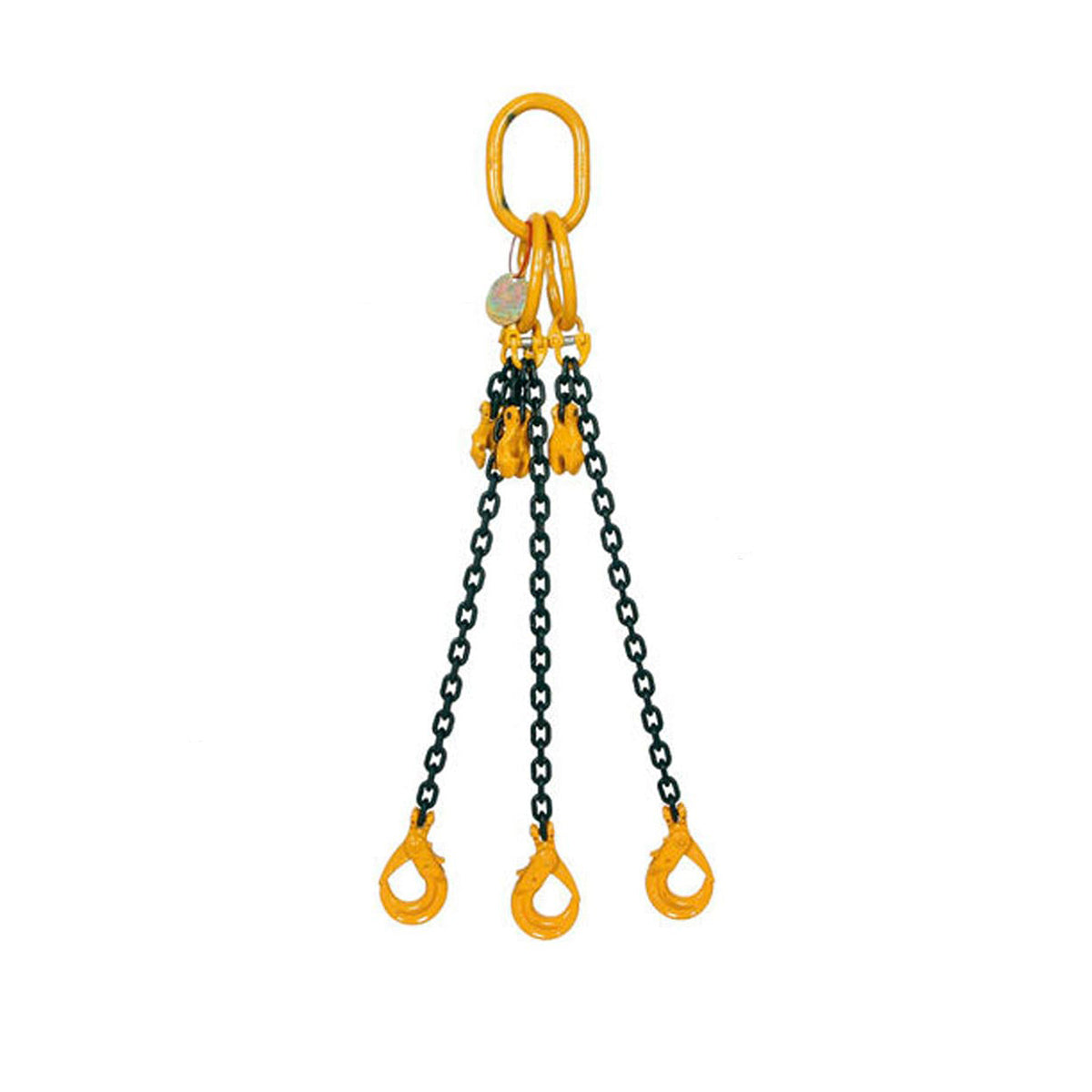

8mm Three Leg Lifting Chain Sling
A Grade 80 alloy steel three-leg chain sling in 8mm link diameter, with a 4,200 kg WLL. Available in lengths from 1-10 m with a choice of clevis hook styles and an optional shortening clutch on each leg.
- Working load limit
- 4,200 kg
- Min. breaking load
- 8,000 kg
- Chain size
- 8 mm
- Legs
- 3
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
This three-leg lifting chain sling suspends three individual chain legs from a single master link, allowing simultaneous use of all three legs to lift and stabilise large or awkwardly shaped loads. Typical applications include manufacturing, construction, engineering workshops and any environment where loads must be lifted clear of the floor safely and securely.
Each sling is manufactured from Grade 80 high-alloy steel chain produced using the German WAFIOS method, a computerised process combining automated knitting, spot welding and calibration to ensure every link is dimensionally identical. All chain links are permanently embossed for identification and traceability, and each assembly is proof-load tested to 2.5 times the Working Load Limit (WLL) before dispatch.
- Chain diameter: 8 mm, Working Load Limit: 4,200 kg (4.2 t)
- Grade 80 alloy steel, quenched, tempered and proof tested
- Permanently embossed links for identification and traceability
- Proof load tested to 2.5× WLL; ultimate load rated at 4× WLL
- Available with Clevis Sling Hook, Clevis Self-Locking Hook or Clevis "C" Hook
- Optional shortening clutch on each leg for on-the-fly length adjustment
- Leg lengths available from 1 m to 10 m
Select your preferred hook type, leg length and whether you require a shortening clutch using the variant options above.
Key features
- 01Grade 80 alloy steel
- 024,200 kg working load limit
- 03Three-leg configuration
- 04Choice of hook styles
- 05Flexible length options
Specification
Values that change with your selection, such as length, are in the options above.
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
How to use lifting chains
A short guide from the team on using it safely and getting the most from it. Turn on captions with CC to follow along without sound.
