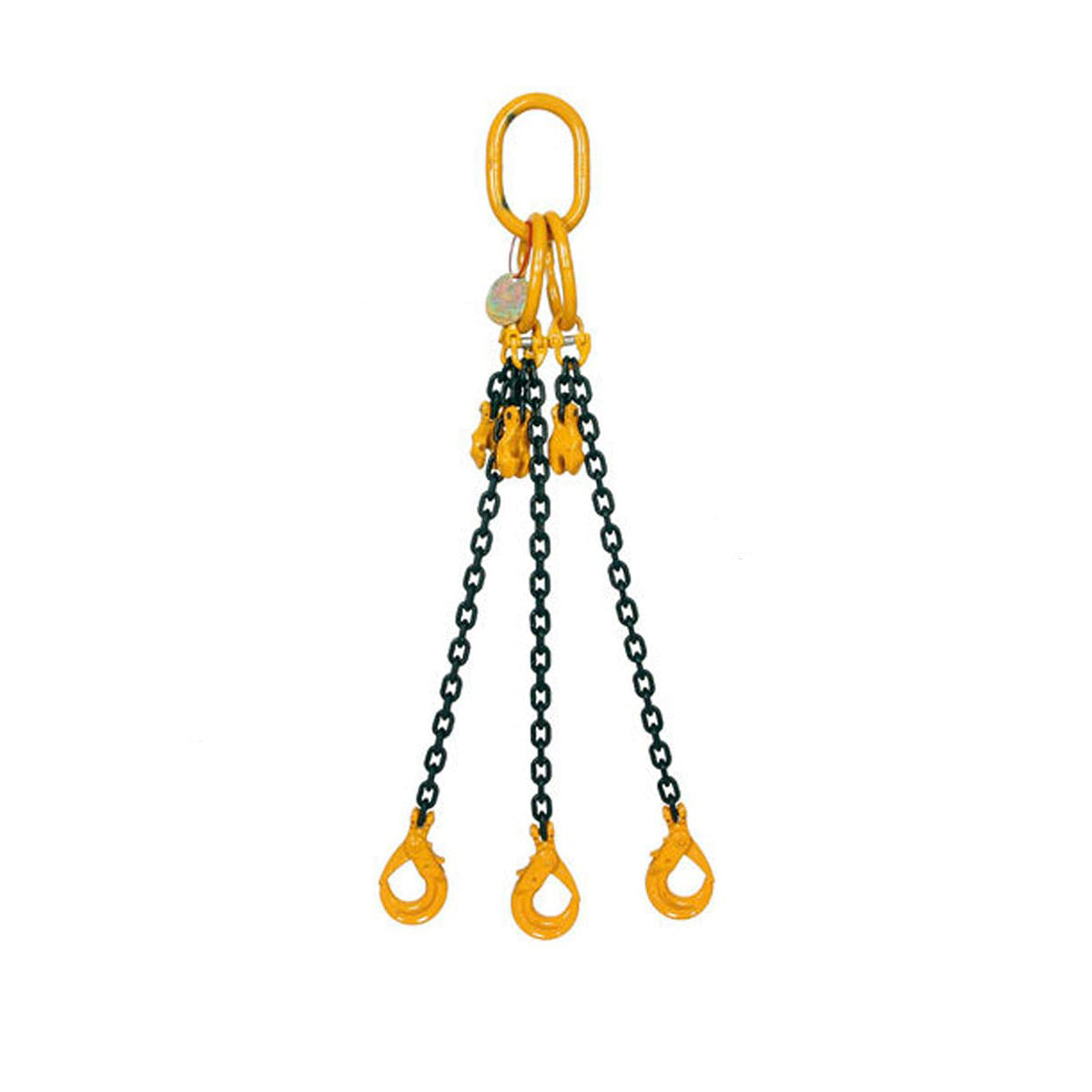

16mm Three Leg Lifting Chain
A Grade 80 alloy steel three-leg chain sling with a 17,000 kg WLL, available in leg lengths from 1-10 m with a choice of clevis hook styles. Ideal for industrial lifting and load handling.
- Working load limit
- 17,000 kg
- Min. breaking load
- 32,000 kg
- Chain size
- 16 mm
- Legs
- 3
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
This three-leg lifting chain sling suspends three lengths of Grade 80 alloy steel chain from a single master link, distributing load across all three legs simultaneously for secure, stable lifts. Built to the demanding standards of industrial lifting environments, from manufacturing and fabrication to construction and logistics, the sling is suited to loads that are too large or heavy to handle by hand.
Each chain is manufactured using the German WAFIOS production method, incorporating computerised automated knitting, spot welding and calibration to ensure every link is identical in form and strength. The chain is permanently embossed for identification and traceability throughout its working life.
Choose your preferred hook style from Clevis Sling Hook, Clevis Self Locking Hook, or Clevis "C" Hook, and select a leg length from 1 m to 10 m to suit your application. A shortening clutch option is also available.
- Working Load Limit (WLL): 17,000 kg (17 t)
- Chain diameter: 16 mm
- Grade 80 alloy steel, quenched, tempered and proof tested
- Proof load tested to 2.5× WLL; ultimate load rated at 4× WLL
- Permanently embossed for identification and traceability
- Choice of Clevis Sling Hook, Clevis Self Locking Hook, or Clevis "C" Hook
- Available in leg lengths from 1 m to 10 m
- Optional shortening clutch available
Key features
- 0117,000 kg working load limit
- 02Three-leg stability
- 03Choice of hook styles
- 04Custom leg lengths
- 05Premium manufacture
Specification
Values that change with your selection, such as length, are in the options above.
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
How to use lifting chains
A short guide from the team on using it safely and getting the most from it. Turn on captions with CC to follow along without sound.
