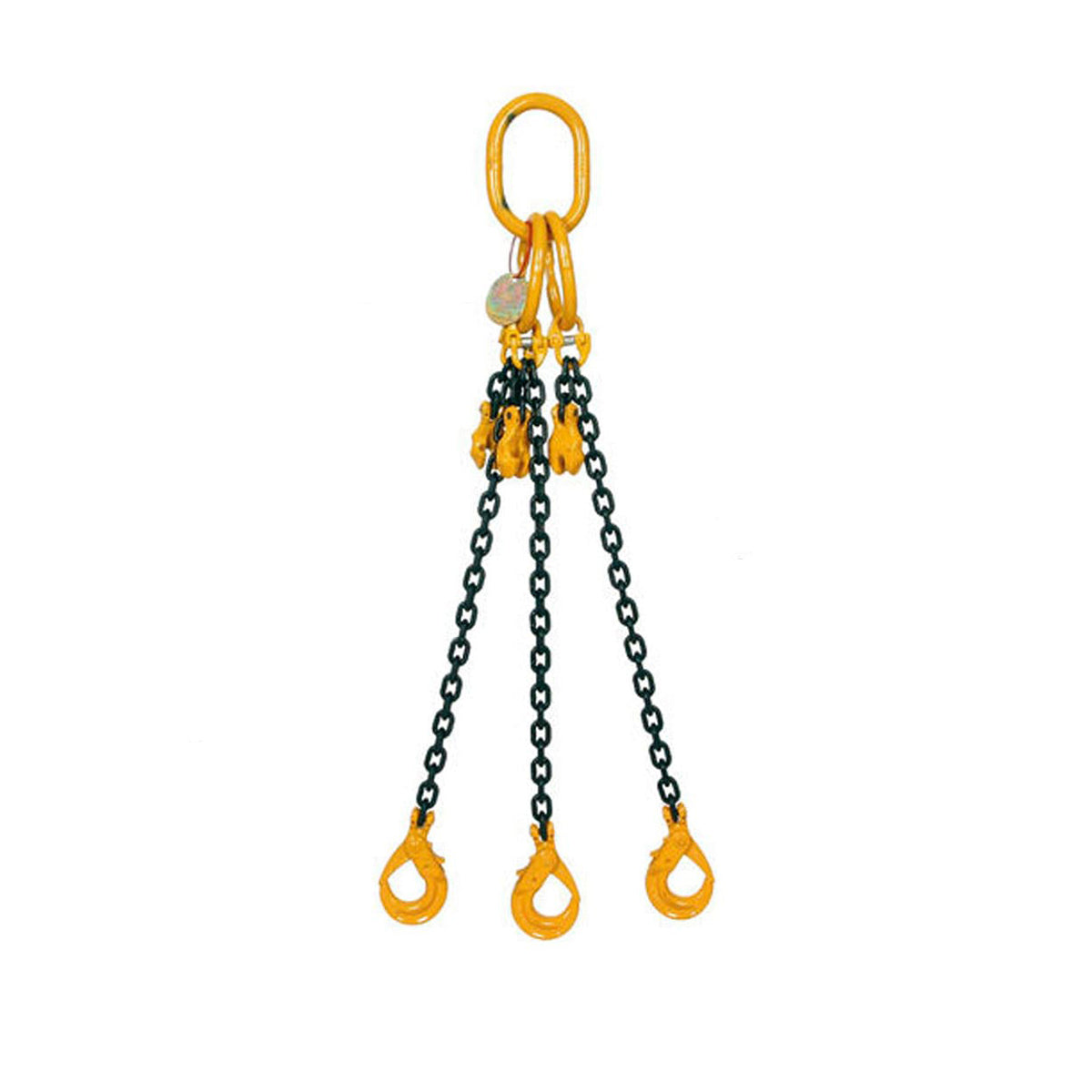

13mm Three Leg Lifting Chain
A Grade 80 alloy steel three-leg chain sling with a 11,200 kg WLL, available in leg lengths from 1-10 m with a choice of hook type, ideal for heavy lifting in industrial and manufacturing environments.
- Working load limit
- 11,200 kg
- Min. breaking load
- 21,200 kg
- Chain size
- 13 mm
- Legs
- 3
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
This 13 mm three-leg chain sling provides a safe, reliable solution for lifting and suspending heavy loads in industrial, manufacturing, construction and engineering environments. Three individual chain legs hang from a single master link, allowing balanced multi-point lifts of large or awkward loads that cannot be handled by a single-leg sling.
All chain components are manufactured from Grade 80 high-tensile alloy steel, quenched, tempered and proof tested to ensure consistent performance. Every link is produced using the German WAFIOS automated knitting, spot-welding and calibration process, so each link is dimensionally identical for maximum reliability. Links are permanently embossed for identification and traceability.
- Working Load Limit: 11,200 kg
- Chain diameter: 13 mm
- Grade 80 alloy steel, quenched, tempered and proof tested
- Proof load tested to 2.5× WLL; ultimate load 4× WLL
- Choice of hook: Clevis Sling Hook, Clevis Self-Locking Hook or Clevis "C" Hook
- Available leg lengths: 1 m to 10 m
- Optional shortening clutches (grablinks) available
- Permanently embossed links for traceability
- Yellow-painted master link and hooks; black chain finish
Select your preferred hook type and leg length from the variants above. Shortening clutches can be added as an option to allow on-site adjustment of working length without the need for additional equipment.
Key features
- 0111,200 kg Working Load Limit
- 02Three-leg configuration provides stable
- 03Choice of Clevis Sling Hook
- 04Available in leg lengths from 1 m to 10 m
- 05Proof tested to 25× WLL
Specification
Values that change with your selection, such as length, are in the options above.
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
How to use lifting chains
A short guide from the team on using it safely and getting the most from it. Turn on captions with CC to follow along without sound.
