8000kg Plate Lifting Clamp – ABLE PLC80
Heavy-duty forged plate lifting clamp with a 8,000 kg WLL, designed for vertical lifting and 180° turning of steel plates, ship sections and pile sheets. Fitted with hinged hoisting eye and double-locking safety latch.
- Working load limit
- 8,000 kg
- Material
- 20 CrMnTi forged steel
- Safety factor
- 6
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

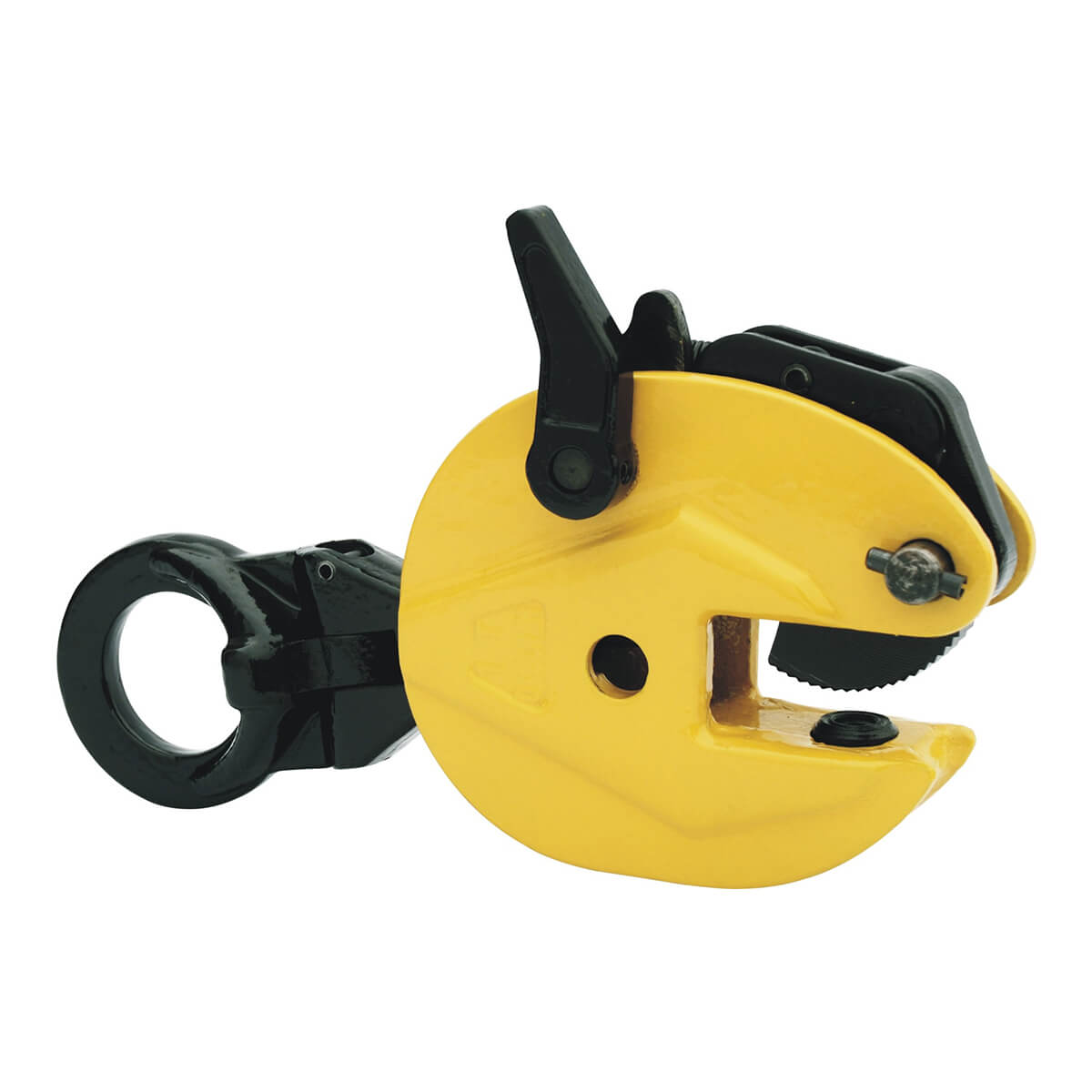

ABLE PLC80 Plate Lifting Clamp, 8,000 kg WLL
The ABLE PLC80 is a heavy-duty, fully forged vertical plate lifting clamp built for the most demanding lifting and turning operations in steel fabrication, shipbuilding and civil engineering. Designed to lift and turn loads through 180°, it is particularly suited to the handling of thick steel plates, ship sections and pile sheets.
The clamp's hinged hoisting eye rotates freely in all directions, allowing the operator to approach and lift from any angle. Special hook-up facilities make horizontal fitment straightforward, while an enlarged jaw aperture accommodates plates of varying thickness within a single clamp, reducing the need for multiple tools on site.
Safety is built in at every level: a double-locking safety latch retains the load positively in both the open and closed jaw positions, and a pre-load is automatically applied to the material being lifted. The fully forged structure offers complete traceability and is rated to a safety factor of 6 × WLL.
- Working Load Limit (WLL): 8.0 tonnes (8,000 kg)
- Test Load: 16.0 tonnes
- Jaw opening (dimension D): 40-80 mm
- Suitable for surface hardnesses up to 37 Rc (345 HB)
- Jaw and floor material: 20 CrMnTi forged steel
- Meets standard BS EN 13155
- Net weight: 32.0 kg
- Finish: Yellow powder coat body, black hoisting eye and latch
Model: PLC80 | Manufacturer: Ableforge Manufacturing Inc (ABLE)
Key features
- 018,000 kg WLL with 16-tonne test load
- 02Lifts and turns through 180°
- 03Hinged hoisting eye rotates in all directions
- 04Double-locking safety latch secures the load in both open and closed jaw positions
- 05Wide jaw aperture of 40-80 mm accommodates plates of varying thickness
